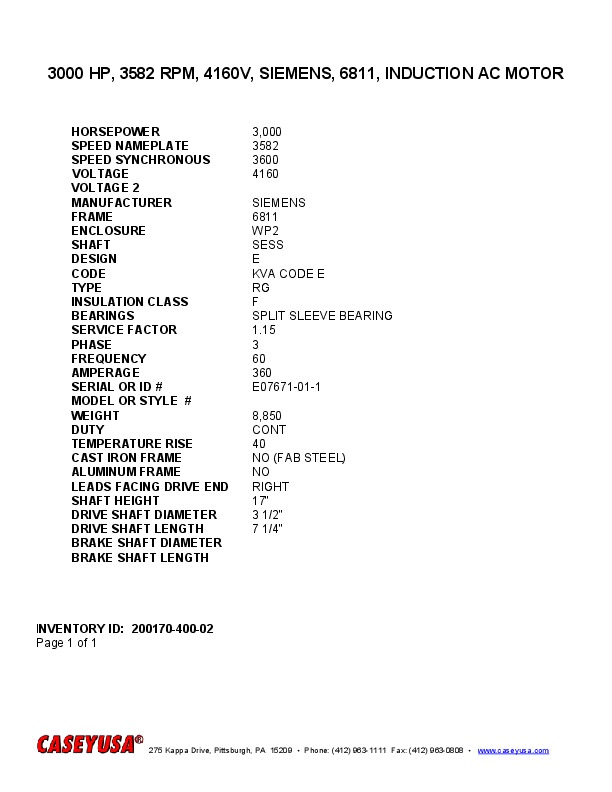

3000 HP, 3582 RPM, 4160V, SIEMENS, 6811, INDUCTION AC MOTOR
 "20017040002 3000 HP, 3582 RPM, 4160V, SIEMENS, 6811, INDUCTION AC MOTOR")
 "20017040002 3000 HP, 3582 RPM, 4160V, SIEMENS, 6811, INDUCTION AC MOTOR")
| INVENTORY ID | 20017040002 |
| TITLE | 3000 HP, 3582 RPM, 4160V, SIEMENS, 6811, INDUCTION AC MOTOR |
| HORSEPOWER | 3,000 |
| SPEED NAMEPLATE | 3582 |
| SPEED SYNCHRONOUS | 3600 |
| VOLTAGE | 4160 |
| MANUFACTURER | SIEMENS |
| FRAME | 6811 |
| ENCLOSURE | WP2 |
| SHAFT | SESS |
| DESIGN | E |
| CODE | KVA CODE E |
| TYPE | RG |
| INSULATION CLASS | F |
| BEARINGS | SPLIT SLEEVE BEARING |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 360 |
| SERIAL NUMBER OR ID NUMBER | E07671-01-1 |
| WEIGHT | 8,850 |
| DUTY | CONT |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | NO (FAB STEEL) |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | RIGHT |
| SHAFT HEIGHT | 17" |
| DRIVE SHAFT DIAMETER | 3 1/2" |
| DRIVE SHAFT LENGTH | 7 1/4" |
