100 HP (74 KW), RPM INPUT 1750/2000, 42.819 RATIO, RPM OUTPUT 41/47, NUTTALL 90R55386 GEAR REDUCER / SPEED REDUCER / GEARBOX, USED
 "20016455008 100 HP (74 KW), RPM INPUT 1750/2000, 42.819 RATIO, RPM OUTPUT 41/47, NUTTALL 90R55386 GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
 "20016455008 100 HP (74 KW), RPM INPUT 1750/2000, 42.819 RATIO, RPM OUTPUT 41/47, NUTTALL 90R55386 GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
 "20016455008 100 HP (74 KW), RPM INPUT 1750/2000, 42.819 RATIO, RPM OUTPUT 41/47, NUTTALL 90R55386 GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
 "20016455008 100 HP (74 KW), RPM INPUT 1750/2000, 42.819 RATIO, RPM OUTPUT 41/47, NUTTALL 90R55386 GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
 "20016455008 100 HP (74 KW), RPM INPUT 1750/2000, 42.819 RATIO, RPM OUTPUT 41/47, NUTTALL 90R55386 GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
| INVENTORY ID | 20016455008 |
| TITLE | 100 HP (74 KW), RPM INPUT 1750/2000, 42.819 RATIO, RPM OUTPUT 41/47, NUTTALL 90R55386 GEAR REDUCER / SPEED REDUCER / GEARBOX, USED |
| HORSEPOWER | 100 |
| RPM INPUT | 1750/2000 |
| RATIO | 42.819 :1 RATIO |
| RPM OUTPUT | 45.5 |
| GEARBOX SHAFT ARRANGEMENT | PARALLEL |
| MANUFACTURER OF EQUIPMENT | NUTTALL GEAR CORP. |
| YEAR OF MANUFACTURE | 1990 |
| MODEL NUMBER | 90R55386 |
| SERIAL NUMBER | 9012-1 |
| REDUCTION | TRIPLE |
| SVC FACTOR (1.0, 1.5 ETC) | 1.58 |
| GEAR TYPE (HERRINGBONE, WORM, ETC) | HELICAL |
| BEARING TYPE | ROLLER |
| PREVIOUS USE | BRIDLE ROLL DRIVE |

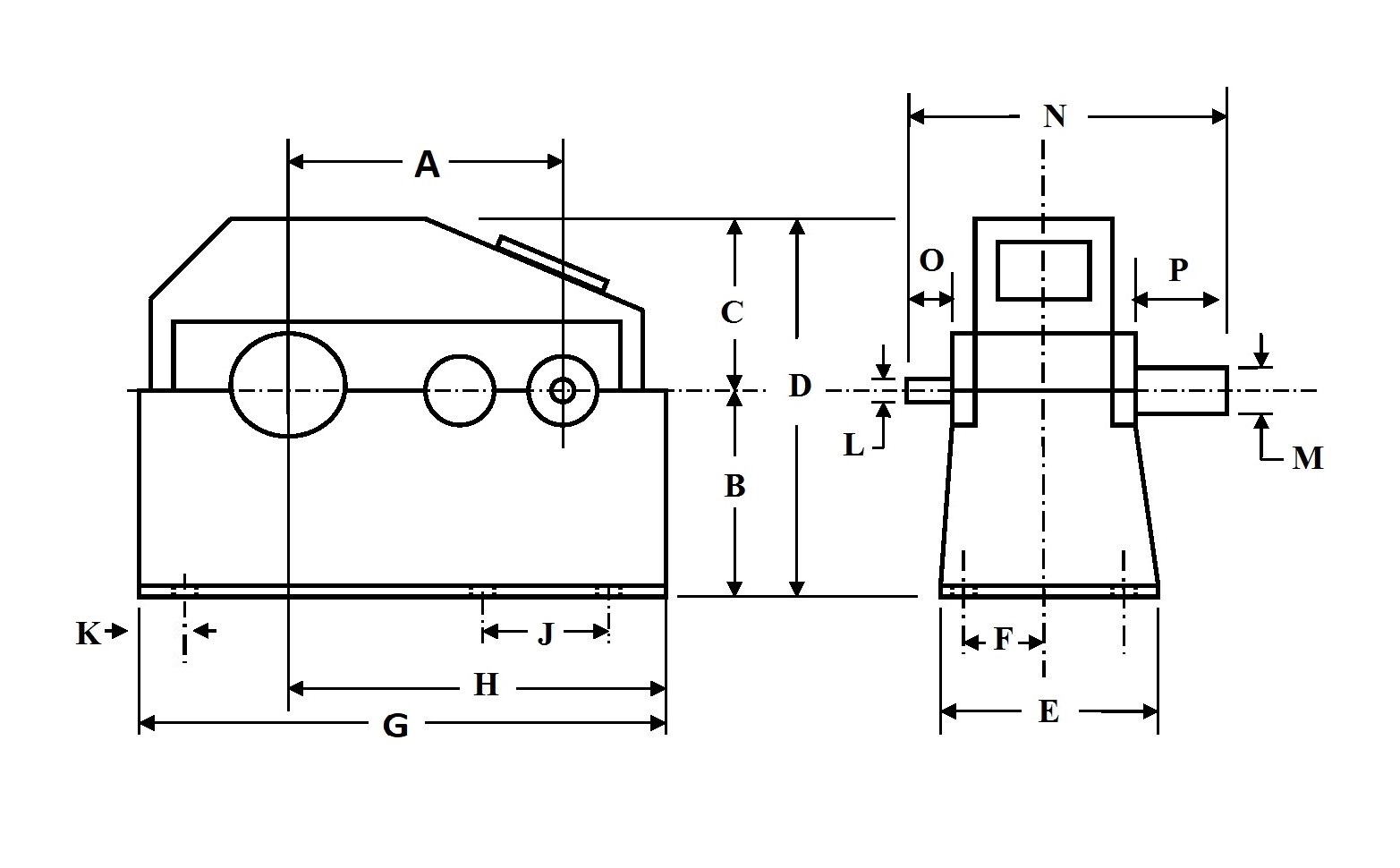

| DIMENSION A | 27 |
| DIMENSION B | 16.5 |
| DIMENSION C | 16.5 |
| DIMENSION D | 33 |
| DIMENSION E | 24.625 |
| DIMENSION F | 12.5 |
| DIMENSION G | 56 |
| DIMENSION H | 36.25 |
| DIMENSION J | 22 |
| DIMENSION K | 6 |
| DIMENSION L | 2.125 |
| DINEMSION M | 5.5 |
| DIMENSION N | 41.25 |
| DIMENSION O | 3.75 |
| DIMENSION P | 10 |
