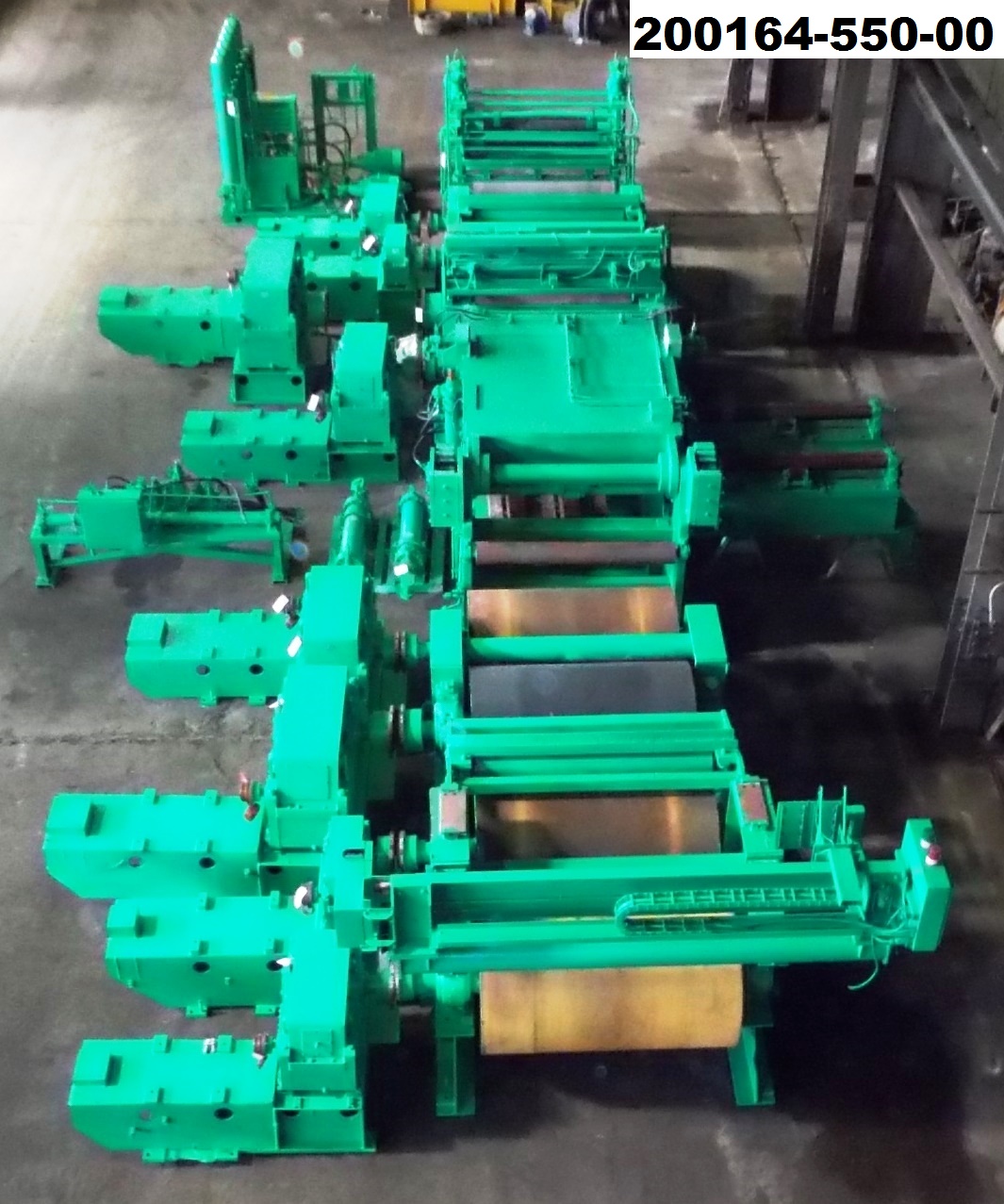

72" (1830 MM) HERR VOSS TENSION LEVELER

[ Request Quote ]     [ Print ]

72" (1830 MM) HERR VOSS TENSION LEVELER
72" (1830 MM) HERR VOSS TENSION LEVELER
72" (1830 MM) HERR VOSS TENSION LEVELER
72" (1830 MM) HERR VOSS TENSION LEVELER

72" (1830 MM) HERR VOSS TENSION LEVELER

72" (1830 MM) HERR VOSS TENSION LEVELER

TITLE OF SPECIFICATION72" (1830 MM) HERR VOSS TENSION LEVELER
WIDTH62 INCH
GAUGE MAX0.168 INCH
MANUFACTURER OF EQUIPMENTHERR VOSS
YEAR OF MANUFACTURE1990
MATERIAL GRADECOLD ROLLED GALVANIZED STEEL
PRESSURE (PSI) YIELD33,000 / 110.000 PSI
PROD CAPAC WIDE MIN22
PROD CAPAC WIDE MAX48
GAUGE MIN0.012
ROLL ARRANGEMENT (X OVER Y)3 OVER 2
WR FACE72
SCREWDOWN TYPEHYDRAULIC CLAMSHELL
BU ROLL FACE72
MATERIAL FLOW DIRECTION (FROM OPERATORS SIDE)LEFT TO RIGHT
PASS LINE HEIGHT61
LINE SPEED MIN104 FPM JOG SPEED / 500 FPM MAX
LINE SPEED MAX600
MOTOR HP50 HP TO 300 HP
MOTOR RPM1750/2000 RPM (ALL BRIDLE ROLL MOTORS)
