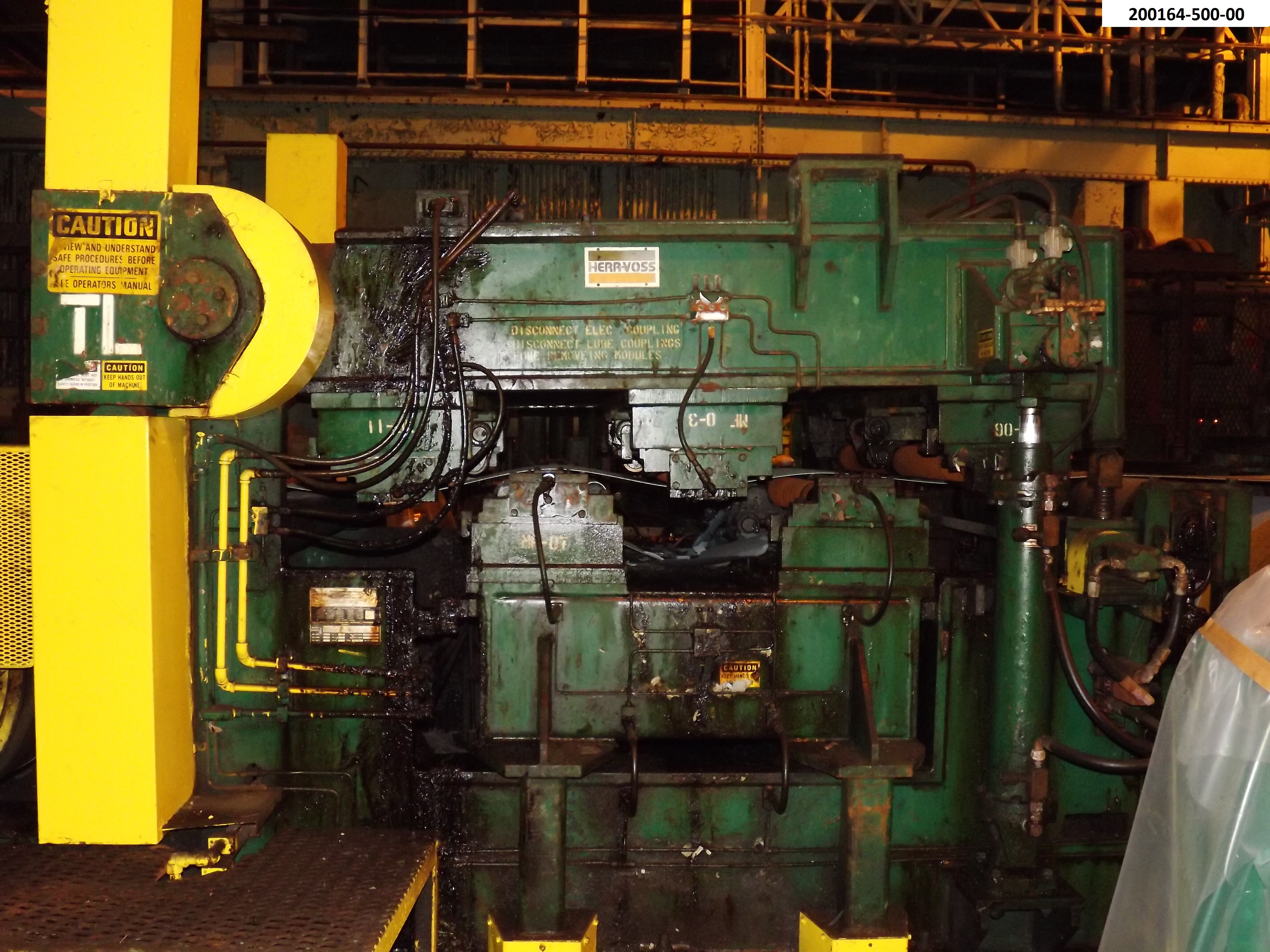

72" (1830 MM) X .168" HERR VOSS TENSION LEVELER
 "20016450000 72\" (1830 MM) X .168\" HERR VOSS TENSION LEVELER")
 "20016450000 72\" (1830 MM) X .168\" HERR VOSS TENSION LEVELER")
 "20016450000 72\" (1830 MM) X .168\" HERR VOSS TENSION LEVELER")
| INVENTORY ID | 20016450000 |
| TITLE | 72" (1830 MM) X .168" HERR VOSS TENSION LEVELER |
| GAUGE MAX | 0.168 INCH |
| WIDTH | 72 INCH |
| MANUFACTURER OF EQUIPMENT | HERR VOSS |
| MATERIAL GRADE | COLD ROLLED GALVANIZED STEEL |
| PRESSURE (PSI) YIELD | 50,000 / 110.000 PSI |
| PROD CAPAC WIDE MIN | 24 |
| PROD CAPAC WIDE MAX | 60 |
| ROLL ARRANGEMENT (X OVER Y) | 3 OVER 2 |
| WR FACE | 72 |
| SCREWDOWN TYPE | HYDRAULIC CLAMSHELL |
| BU ROLL FACE | 72 |
| MATERIAL FLOW DIRECTION (FROM OPERATORS SIDE) | LEFT TO RIGHT |
| PASS LINE HEIGHT | 61 |
| LINE SPEED MIN | 104 FPM JOG SPEED |
| LINE SPEED MAX | 600 |
| MOTOR HP | 50 HP TO 500 HP |
| MOTOR RPM | 1750/2000 RPM (ALL BRIDLE ROLL MOTORS) |
| MOTOR MFR | GE |
| NUMBER SPARE WORK ROLLS | 3 - SOLD SEPARATELY |
| GEARBOX (INCREASER OR DECREASER) | VARIOUS |
| PREVIOUS USE | GALVANIZING LINE |
| TOTAL WEIGHT | 320,000 LBS ESTIMATED |
