5.5" (140 MM) DIA. BRONX 6 ROLL PIPE STRAIGHTENER
MANUFACTURER: BRONX
AGE: 1980's
MODEL #: 6 CR 8
S/N: 10920
MATERIAL GRADE: STEEL
PRODUCT: 1" - 5/5" PIPE (25 MM - 140 MM)
MAX WALL THICKNESS: 0.393" (10 MM)
NUMBER OF POSTS: 8
OPERATING SPEED: 20 - 400 FPM (6 - 120 MPM)
MOTOR: 2 X 75 HP, GE 500 VDC; 1750 / 22100 RPM / CD366AT FRAME

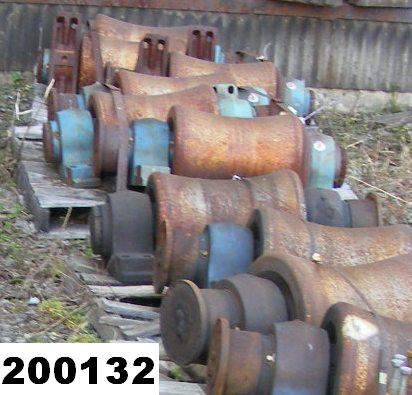

ROLL DIAMETER: 11" (275 MM)
ROLL FACE: 17.25" (435 MM)

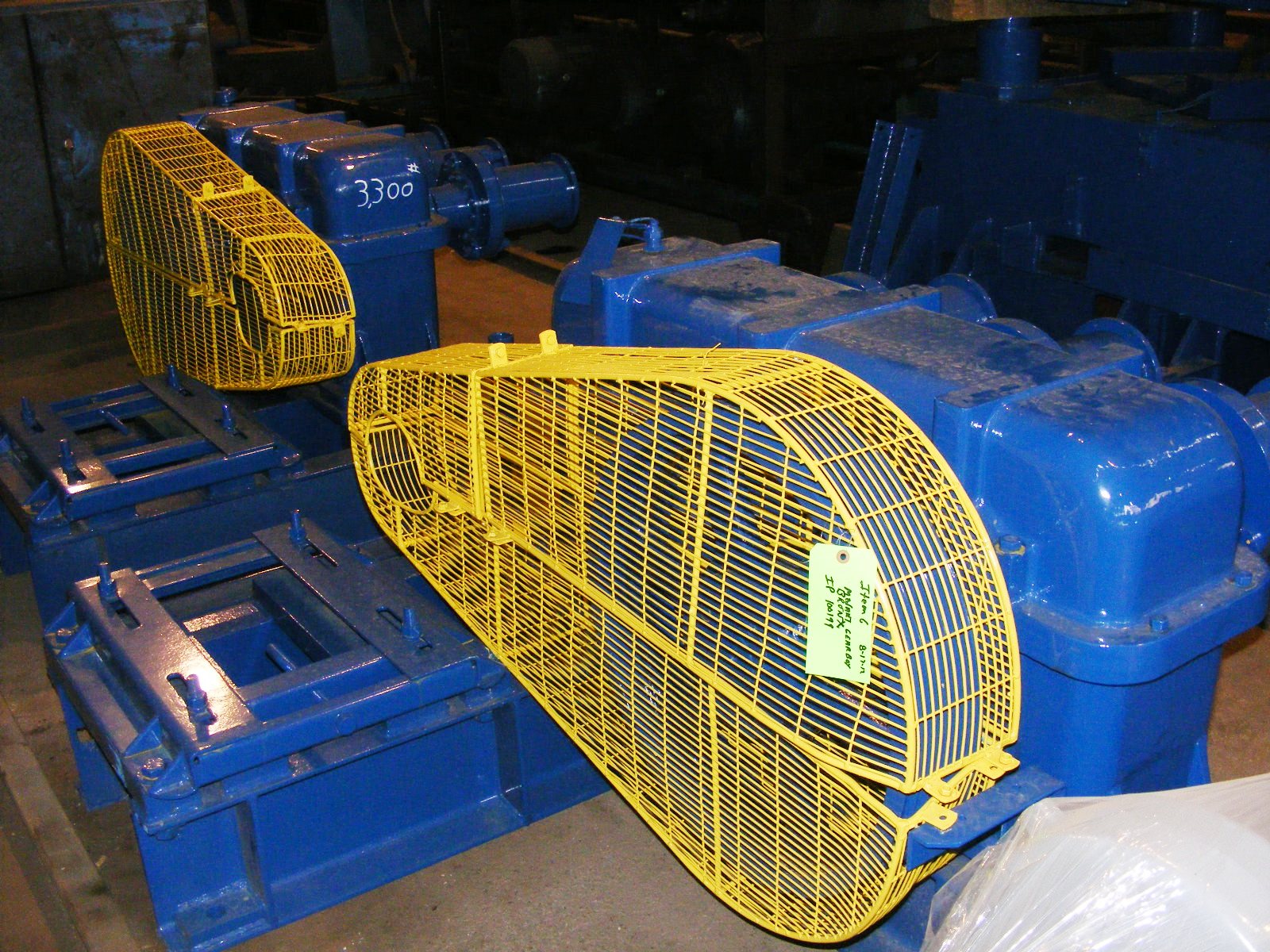

GEARBOXES: 2 - EACH WITH THREE OUTPUTS / 1.75:1 RATIO
ROLL CONFIGURATION: 3 OVER 3
WEIGHTS: MACHINE: 21,600 LBS / (9,798 KGS) / CONVEYOR: 25,000 LBS / (11,340 KGS) ROLLS: 15,000 LBS (6,804 KGS)
FEATURES: HYDRAULIC TANK; ELECTRICAL PANEL; CLEANED AND PAINTED
INVENTORY #: 200132-000-00
| INVENTORY ID | 20013200000 |
| TITLE | 5.5" (140 MM) DIA. BRONX 6 ROLL PIPE STRAIGHTENER |
| PRODUCT DIA. | 5.5" |
| NUMBER OF ROLLS | 6 |
| MANUFACTURER OF EQUIPMENT | BRONX |
| YEAR OF MANUFACTURE | 1980'S |
| MODEL NO | 6 CR 8 |
| SERIAL NO | 10920 |
| MATERIAL GRADE (STAINLESS, CARBON) | STEEL |
| NUMBER OF POSTS | 8 |
| MOTOR HP | 75 |
| MOTOR RPM | 2100 |
| MOTOR VOLTS | 500 |
| AC OR DC | DC |
| MOTOR MFR | GENERAL ELECTRIC |
| MOTOR FRAME | CD366AT |
| WITH REDUCERS (Y OR N) | YES |
| TOP ROLL TYPE (DRIVEN) | 3 |
| TOP ROLL BEARING TYPE | ROLLER |
| BOTTOM ROLL BEARING TYPE | ROLLER |
