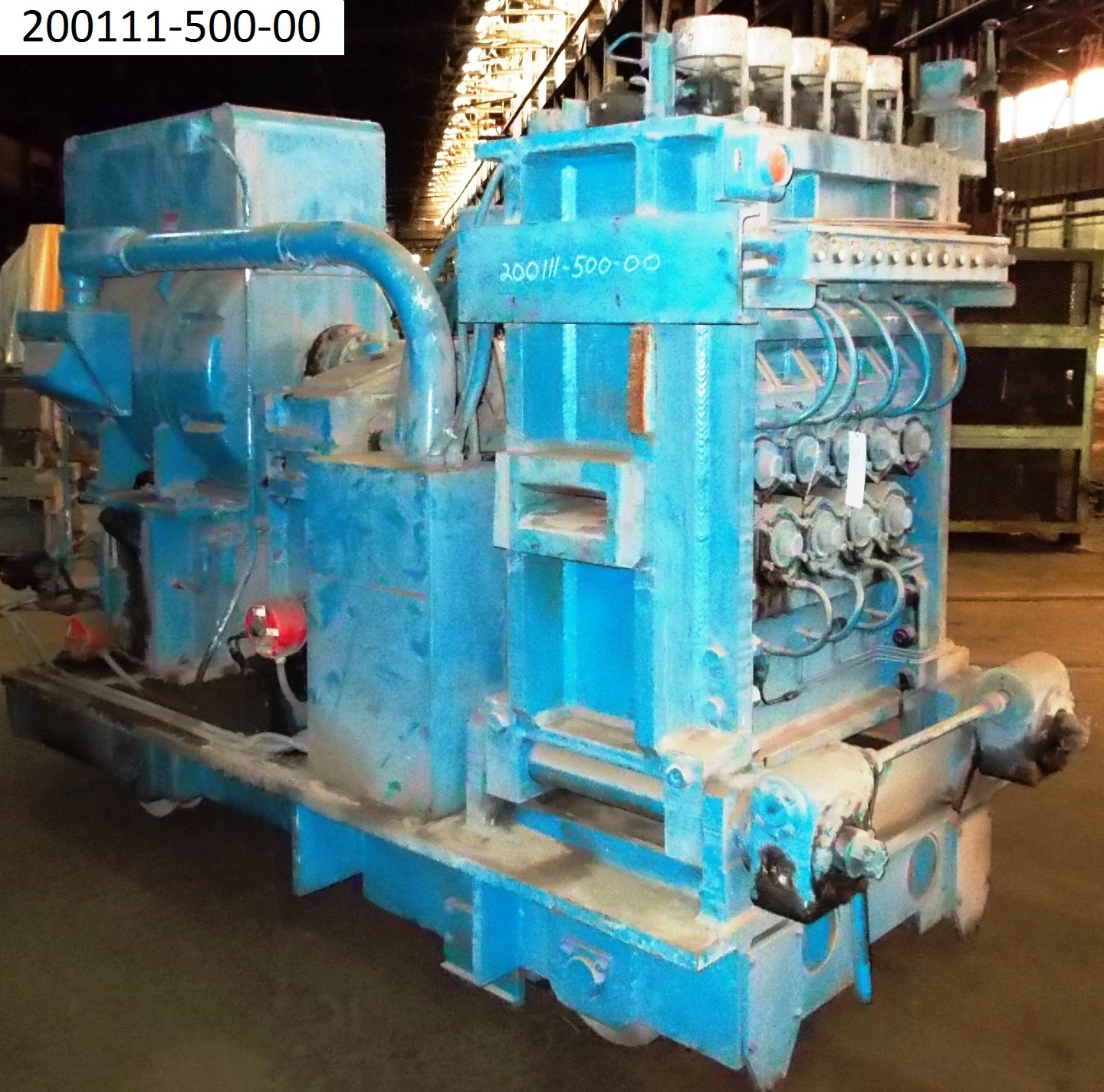

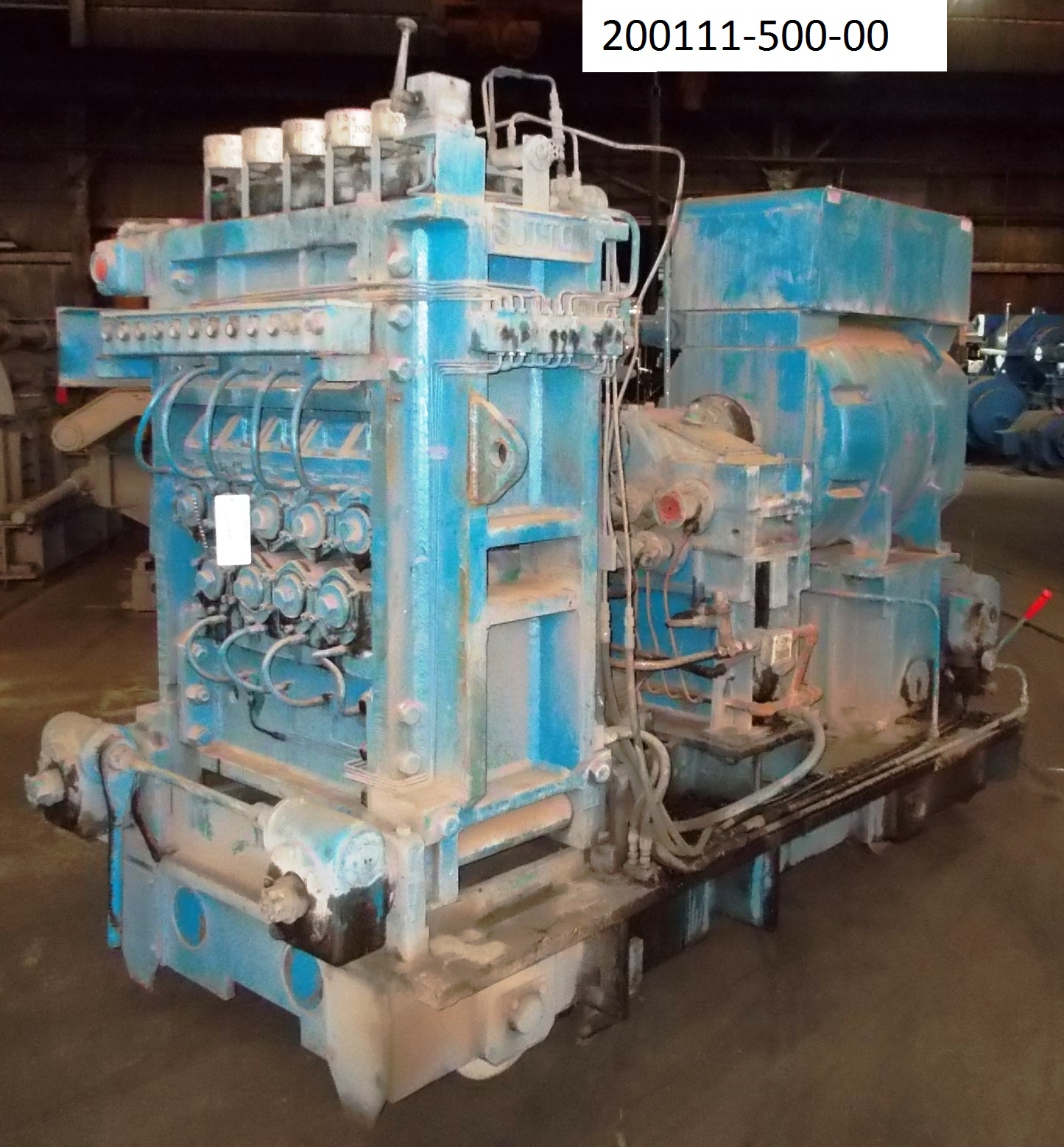

SUTTON 20D SHAPE STRAIGHTENER FOR FLATS

MANUFACTURER: SUTTON

AGE: 1970

MODEL #: 20D

SERIAL #: 1412

GENERAL SPECIFICATIONS:

NUMBER OF PLANES: 1

MATERIAL GRADE: CARBON

PRESSURE: YIELD

PRODUCT: FLAT

PRODUCT HEXAGON: 0.87" MAX (22 MM)

FLAT WIDTH: 0.5" TO 5" WIDE X 0.12" TO 0.50" THICK (13 MM TO 127 MM X 3 MM TO 13 MM THICK)

SQUARES: 0.87" MAX

SPEED OF STRAIGHTENER: 400 FPM TO 1600 FPM MAX (121 MPM TO 488 MPM MAX)

MAIN DRIVE MOTOR: 50 HP

400-1600 RPM

240 VOLTS

CD-683AS

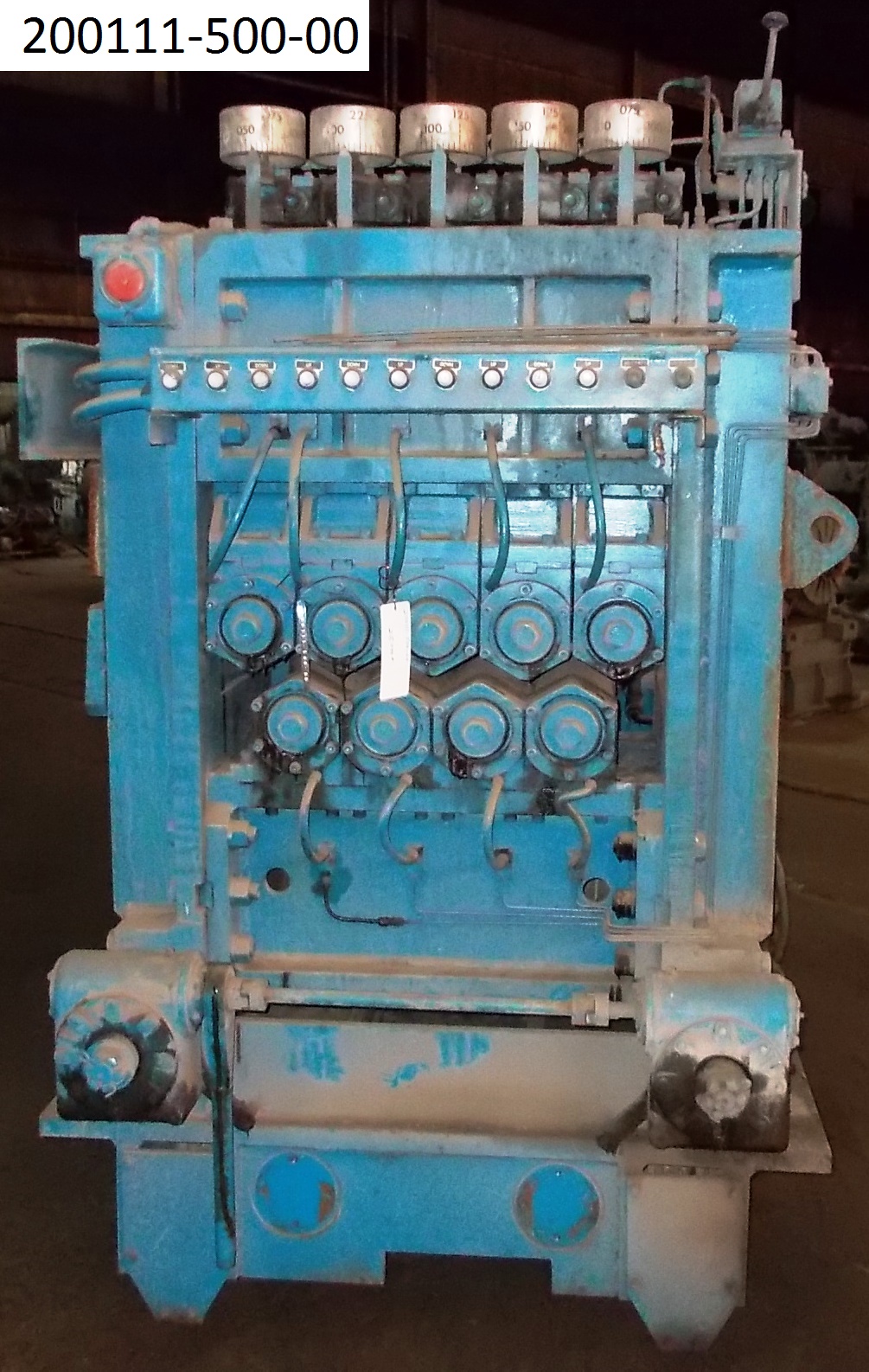

TOP ROLL: QTY 5

DRIVEN

ADJUSTABLE THRU HYDRAULIC MOTOR

10" FACE X 6 1/4" OD X 3 1/2" ID

BOTTOM ROLL QTY: QTY 4

DRIVEN

FIXED - NON-ADJUSTABLE

10" FACE X 6 1/4" OD X 3 1/2" ID

DIRECTION OF TRAVEL: LEFT TO RIGHT (VIEWED FROM OPERATOR'S SIDE)

DIMENSIONS: 155" LENGTH X 60" WIDTH X 90" HEIGHT (3937MM LENGTH X 1524MM WIDE X 2286 MM HEIGHT

FEATURES:

TRAVELING CARRIAGE WITH A DUMMY TROUGH

TRAVELING CARRIAGE CAN BE ALTERED TO A FIXED POSITION WITHOUT ANY SPECIAL FOUNDATION REQUIREMENTS

INVENTORY #: 200111-500-00

INVENTORY ID	20011150000
TITLE	SUTTON 20D SHAPE STRAIGHTENER FOR FLATS
MODEL NO	20D
MANUFACTURER OF EQUIPMENT	SUTTON
YEAR OF MANUFACTURE	1970
NUMBER OF PLANES	1
PRODUCTS (ANGLES, CHANNELS ETC)	FLAT
DIRECTION OF TRAVEL	LEFT TO RIGHT
SPEED OF STRAIGHTENER MIN.	400
SPEED OF STRAIGHTENER MAX	1600
MOTOR HP	50
MOTOR RPM	400-1600
MOTOR VOLTS	240
