200 HP (148 KW), RPM INPUT 1750, 52.94 RATIO, RPM OUTPUT 33, HORSBURGH & SCOTT 170-T-SPL SPEED REDUCER
 "20008200000 200 HP (148 KW), RPM INPUT 1750, 52.94 RATIO, RPM OUTPUT 33, HORSBURGH & SCOTT 170-T-SPL SPEED REDUCER")
 "20008200000 200 HP (148 KW), RPM INPUT 1750, 52.94 RATIO, RPM OUTPUT 33, HORSBURGH & SCOTT 170-T-SPL SPEED REDUCER")
 "20008200000 200 HP (148 KW), RPM INPUT 1750, 52.94 RATIO, RPM OUTPUT 33, HORSBURGH & SCOTT 170-T-SPL SPEED REDUCER")
 "20008200000 200 HP (148 KW), RPM INPUT 1750, 52.94 RATIO, RPM OUTPUT 33, HORSBURGH & SCOTT 170-T-SPL SPEED REDUCER")
 "20008200000 200 HP (148 KW), RPM INPUT 1750, 52.94 RATIO, RPM OUTPUT 33, HORSBURGH & SCOTT 170-T-SPL SPEED REDUCER")
 "20008200000 200 HP (148 KW), RPM INPUT 1750, 52.94 RATIO, RPM OUTPUT 33, HORSBURGH & SCOTT 170-T-SPL SPEED REDUCER")
| INVENTORY ID | 20008200000 |
| TITLE | 200 HP (148 KW), RPM INPUT 1750, 52.94 RATIO, RPM OUTPUT 33, HORSBURGH & SCOTT 170-T-SPL SPEED REDUCER |
| HORSEPOWER | 200 |
| RPM INPUT | 1750 |
| RATIO | 52.94:1 RATIO |
| RPM OUTPUT | 33 |

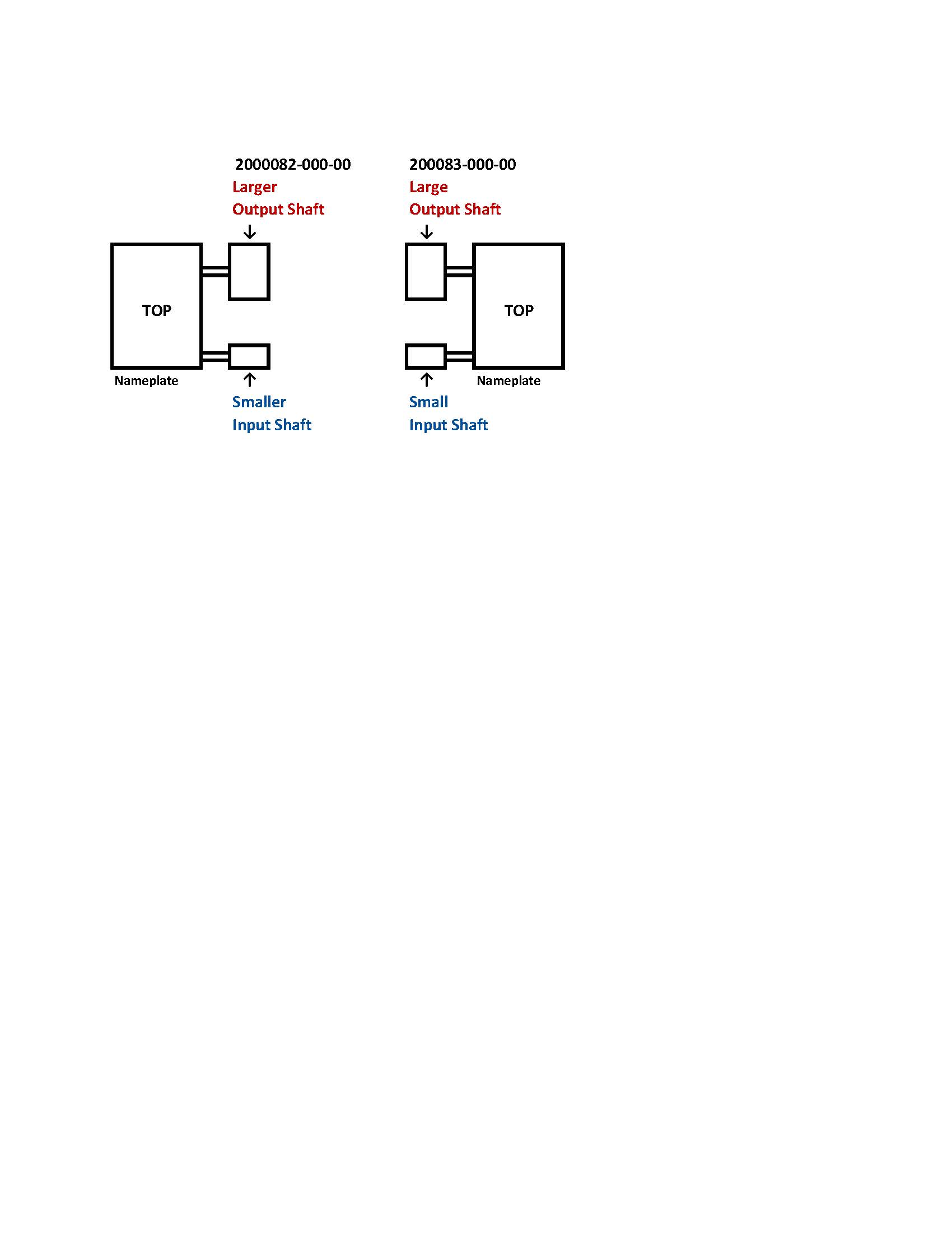

| GEARBOX SHAFT ARRANGEMENT | PARALLEL |
| MANUFACTURER OF EQUIPMENT | HORSBURGH & SCOTT |
| MODEL NUMBER | 170-T SPL |
| SERIAL NUMBER | M-5762A |
| REDUCTION | TRIPLE |
| SVC FACTOR (1.0, 1.5 ETC) | 1.0 |
| GEAR TYPE (HERRINGBONE, WORM, ETC) | HELICAL |
| BEARING TYPE | ROLLER |
| DIMENSION A | 36 |
| DIMENSION B | 18.5 |
| DIMENSION C | 16.5 |
| DIMENSION D | 35 |
| DIMENSION E | 27.5 |
| DIMENSION F | 12.25 |
| DIMENSION G | 52.5 |
| DIMENSION H | 37 |
| DIMENSION J | 22 |
| DIMENSION K | 4 |
| DIMENSION L | 2 |
| DINEMSION M | 6.62 |
| DIMENSION N | 35.5 |
| DIMENSION O | 4.75 |
| DIMENSION P | 10 |
