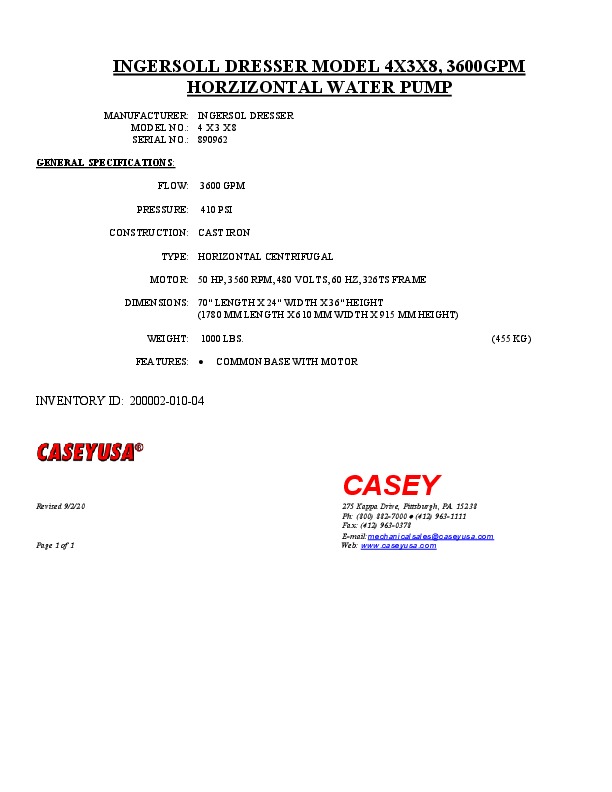

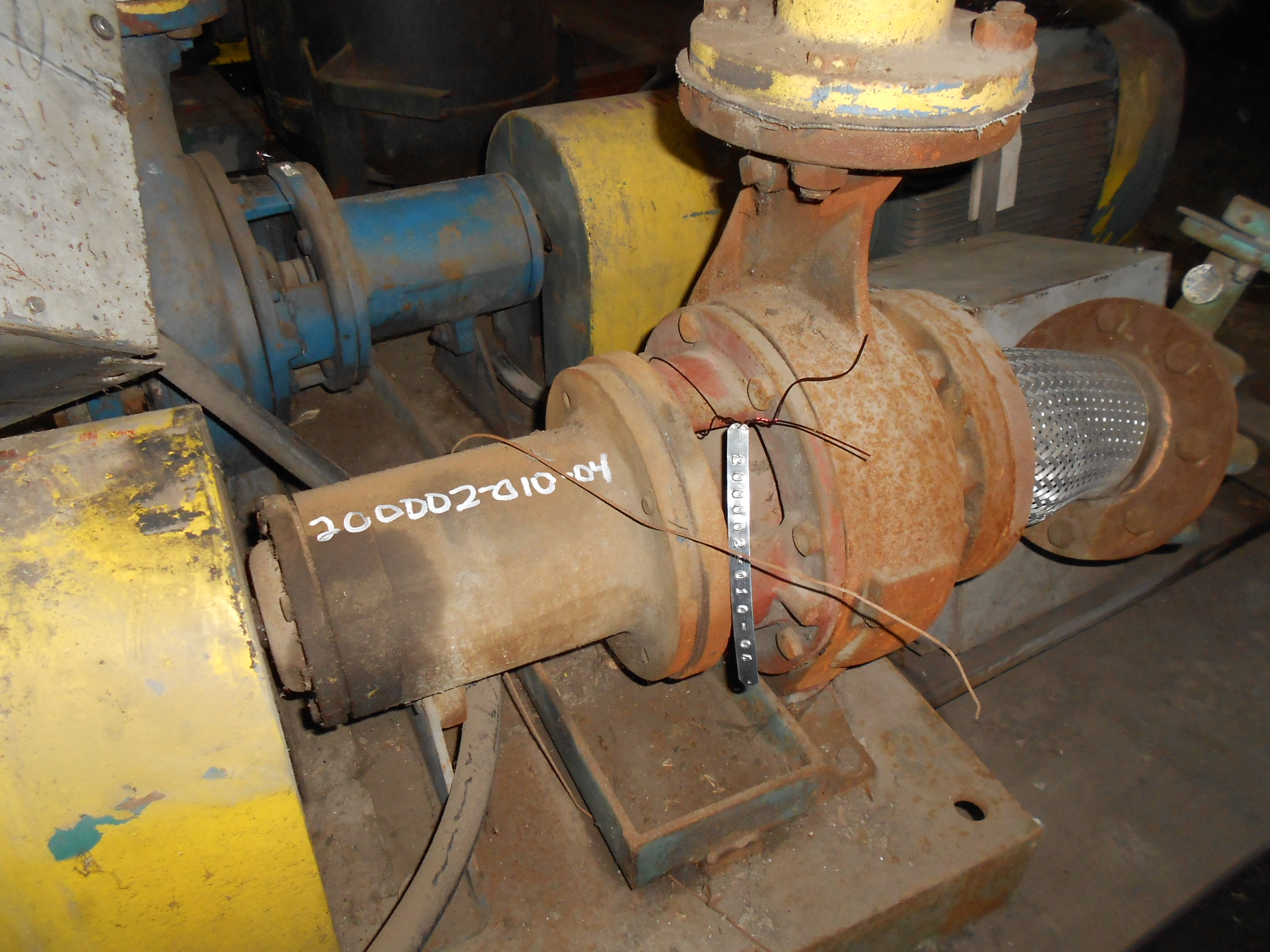

3600 GPM, 410 PSI, INGERSOLL DRESSER, MODEL 4 X 3 X 8, HORIZONTAL WATER PUMP, 50 HP AC MOTOR
 "20000201004 3600 GPM, 410 PSI, INGERSOLL DRESSER, MODEL 4 X 3 X 8, HORIZONTAL WATER PUMP, 50 HP AC MOTOR")
 "20000201004 3600 GPM, 410 PSI, INGERSOLL DRESSER, MODEL 4 X 3 X 8, HORIZONTAL WATER PUMP, 50 HP AC MOTOR")
| INVENTORY ID | 20000201004 |
| TITLE | 3600 GPM, 410 PSI, INGERSOLL DRESSER, MODEL 4 X 3 X 8, HORIZONTAL WATER PUMP, 50 HP AC MOTOR |
| FLOW | 3600 GPM |
| PRESSURE | 410 PSI (947.1 FoH) |
| ARRANGEMENT | HORIZONTAL |
| MANUFACTURER OF EQUIPMENT | INGERSOL DRESSER |
| MODEL NO | 4 X 3 X 8 |

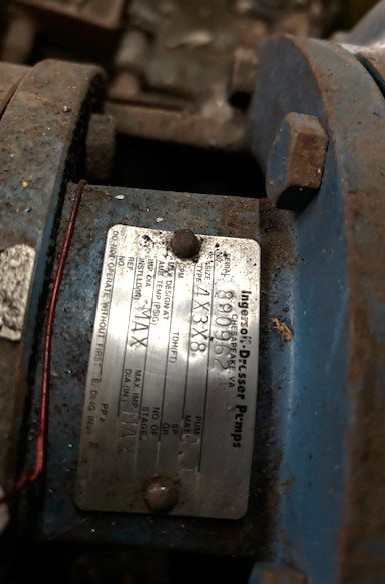

| SERIAL NO | 890962 |
| CONSTRUCTION (CAST / FABRICATED) | CAST IRON |
| MOTOR HP | 50 |
| MOTOR RPM | 3560 |
| MOTOR VOLTS | 480 |
| MOTOR VOLTAGE TYPE (AC / DC) | AC |
| MOTOR FREQUENCY | 60 |
| MOTOR FRAME | 326TS |
| OVERALL LENGTH | 70 |
| OVERALL WIDTH | 24 |
| OVERALL HEIGHT | 36 |
| TOTAL WEIGHT | 1000 |
| FEATURE 1 | COMMON BASE WITH MOTOR |
