36" (915 mm) WIDE 4-HIGH FATA HUNTER UBC ALUMINUM COLD MILL WITH HAGC

36’’ (915MM) 4-HIGH FATA HUNTER UBC ALUMINUM COLD MILL WITH AGC

Aluminum grades: 1100, 5052 , 5182 A

Gauge: .0075 to .110

Speeds: 875 to 4000 FPM

72 ‘’ OD

10,000 lb. coils

Roller bearing

Work rolls: 11" dia x 36" face

Back up rolls: 28" dia x 32" face

240 square inch post

Non reversing

AGC and shape meter roll

Inlet core table with automatic unloading

Payoff reel with coil car and 300 hp 400/1800 rpm dc motor

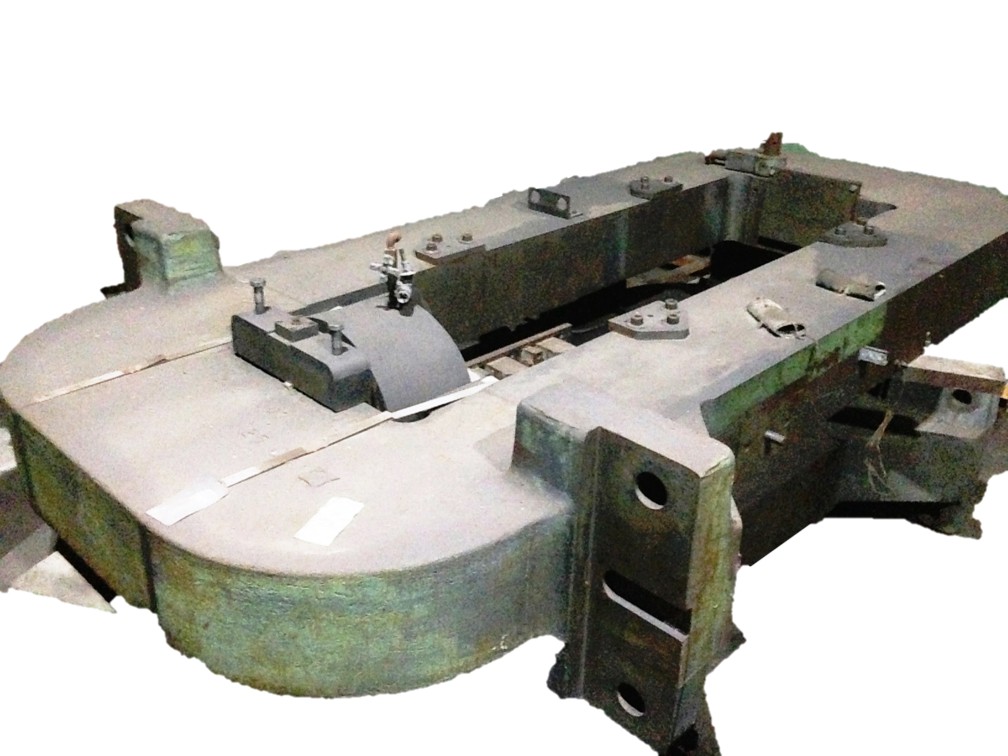

Mill stands

Busch fume exhaust system

Main drive motor , gear box and spindles

Roll changing sled with cylinder

Work roll changer

Rewind reel with 300 hp 400/1800 rpm dc motor

Belt wrapper

Exit table with automatic loading

AC or DC drive motor option

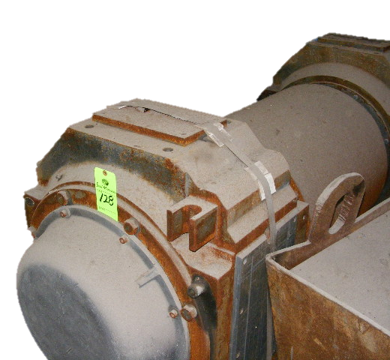

1430 hp 300/1000 rpm 500 volt GE motor dc motor

3000 hp 450/1500 rpm 2960 volt Siemen ac motor

Dismantled - Ready to be shipped

Previous use: Roll 12"-24" aluminum for used aluminum can stock

INVENTORY ID	20000200000
TITLE	36" (915 mm) WIDE 4-HIGH FATA HUNTER UBC ALUMINUM COLD MILL WITH HAGC
MILL WIDTH	36
NUMBER STANDS	1
MANUFACTURER OF EQUIPMENT	FATA HUNTER
YEAR OF MANUFACTURE	1984
DESCRIPTION OF UPGRADES	AGC
MATERIAL ROLLED	ALUMINUM
NUMBER STANDS	1
REVERS/NONREV	NON-REVERSING
ROLL CONFIGURATION (2 HI, 4 HI, 6 HI)	4 HI
STARTING COIL WIDTH	28
STARTING COIL GAUGE MAX	0.110
STARTING COIL GAUGE MIN	0.0075
STARTING COIL WEIGHT	10,000
LINE SPEED	4000
HSG CLOSED-OPEN TOP	CLOSED TOP
HSG CONSTR (FAB OR CAST)	CAST
WORK ROLL DIA STAND 1	11
WR FACE	36
NUMBER OF WR AVAILABLE	2
NUMBER OF WR CHOCKS AVAILABLE	4
BU ROLL DIA	28
BU ROLL FACE	32
NUMBER OF BU ROLLS AVAILABLE	2
NUMBER OF BU ROLL CHOCKS AVAILABLE	4
MOTOR HP	1750
NUMBER OF MOTORS	1
MOTOR RPM	480
MOTOR VOLTS	700
AC OR DC	DC
MOTOR MFR	GE
SCREWDOWN TYPE	ROLL FORCE CYLINDER
POST WIDTH	18.5
POST DEPTH	13.5
WINDOW WIDTH	32
HSG LENGTH	163
HSG WIDTH	69
WEIGHT	40000
ENTRY REEL MOTOR HP	300
