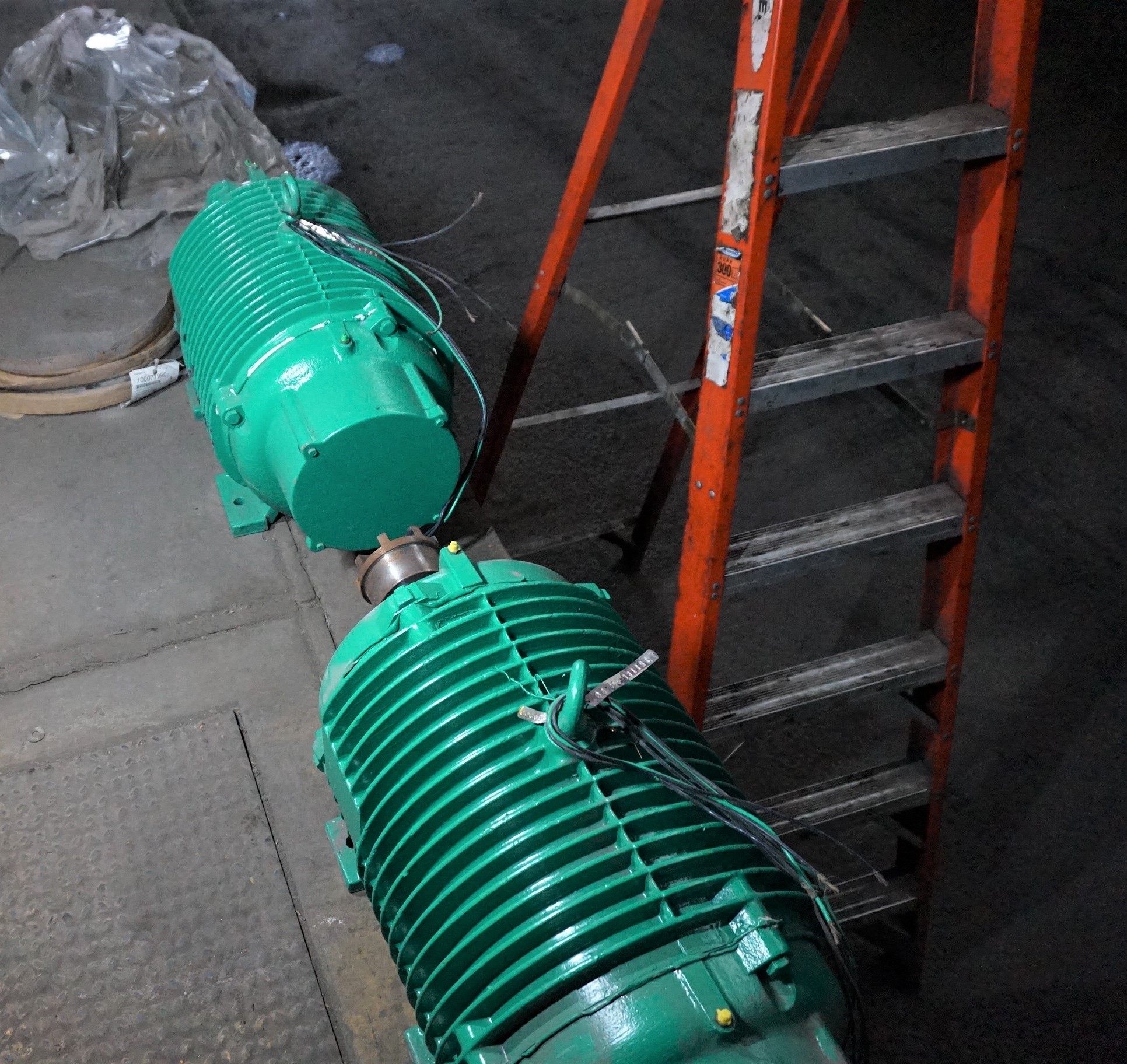

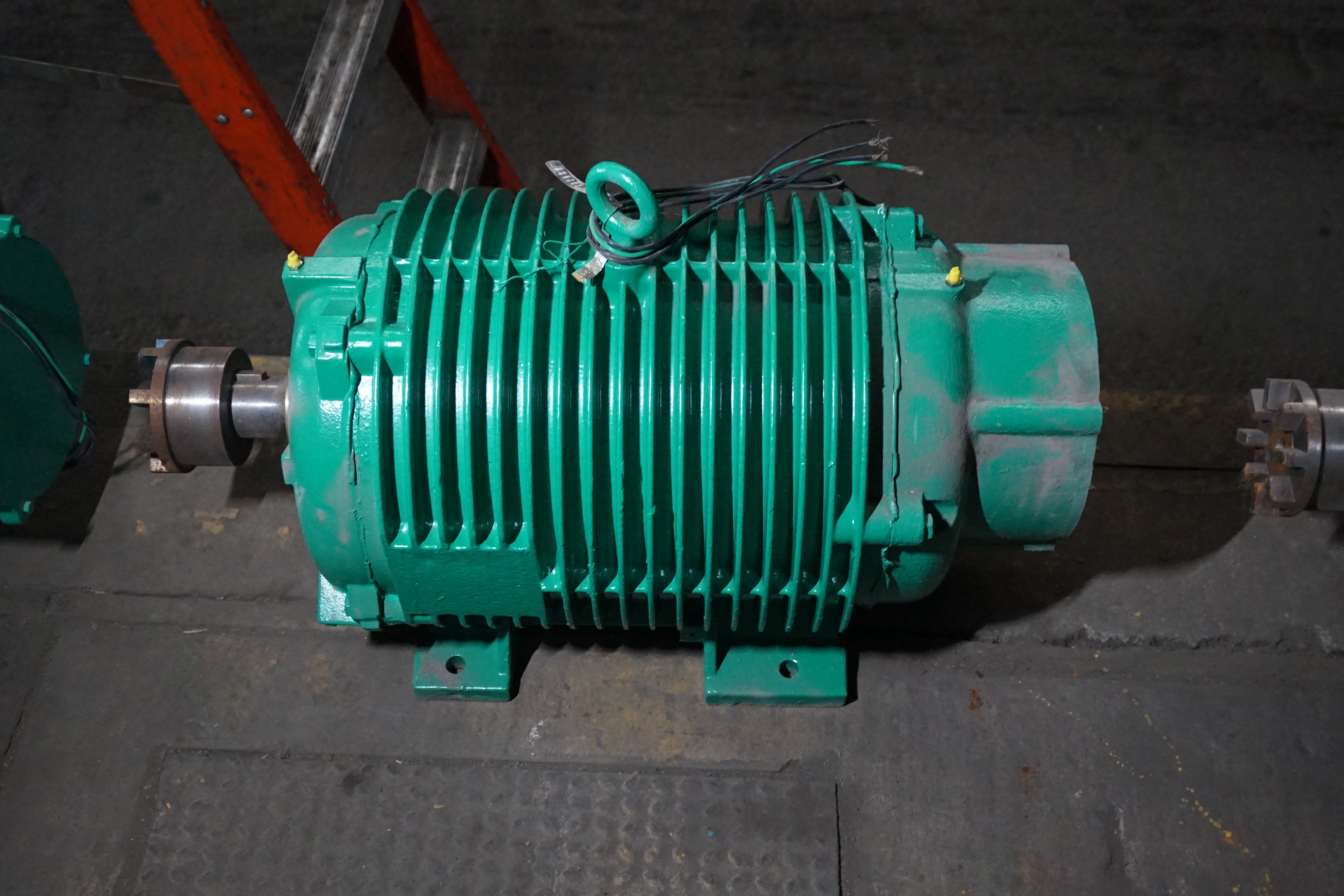

QTY. (174) 13.5 HP, 900 RPM, SIEMENS, 200L, INVERTER DUTY AC MOTORS
 "13083000000 QTY. (174) 13.5 HP, 900 RPM, SIEMENS, 200L, INVERTER DUTY AC MOTORS")
 "13083000000 QTY. (174) 13.5 HP, 900 RPM, SIEMENS, 200L, INVERTER DUTY AC MOTORS")
 "13083000000 QTY. (174) 13.5 HP, 900 RPM, SIEMENS, 200L, INVERTER DUTY AC MOTORS")
 "13083000000 QTY. (174) 13.5 HP, 900 RPM, SIEMENS, 200L, INVERTER DUTY AC MOTORS")

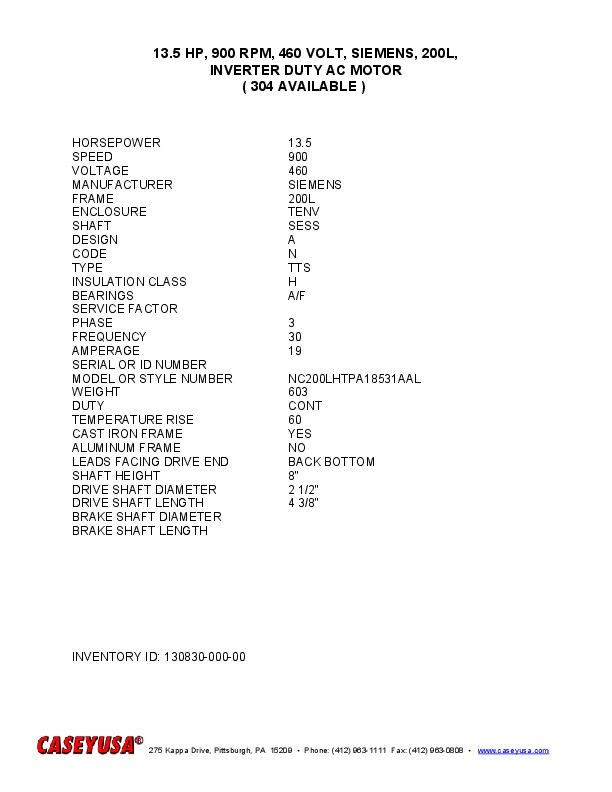

| INVENTORY ID | 13083000000 |
| TITLE | QTY. (174) 13.5 HP, 900 RPM, SIEMENS, 200L, INVERTER DUTY AC MOTORS |
| HORSEPOWER | 13.5 |
| SPEED | 900 |
| VOLTAGE | 460 |
| MANUFACTURER | SIEMENS |
| FRAME | 200L |
| ENCLOSURE | TENV |
| SHAFT | SESS |
| DESIGN | A |
| CODE | N |
| TYPE | TTS |
| INSULATION CLASS | H |
| BEARINGS | A/F |
| PHASE | 3 |
| FREQUENCY | 30 |
| AMPERAGE | 19 |

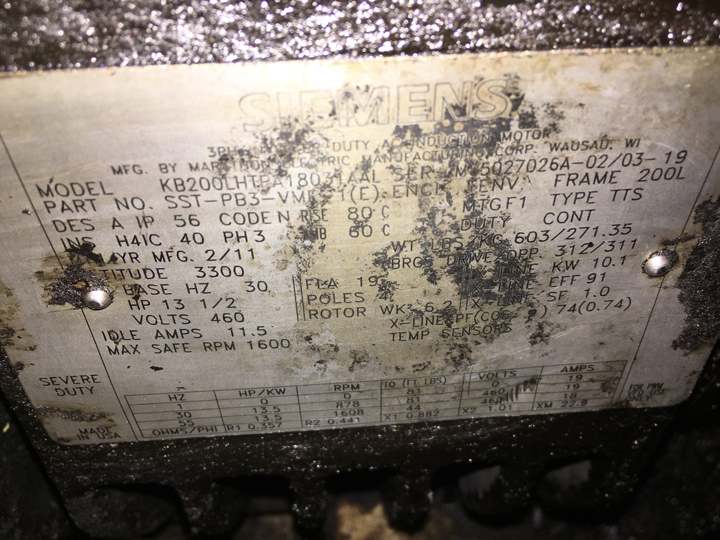

| MODEL NUMBER OR STYLE NUMBER | NC200LHTPA18531AAL |
| WEIGHT | 603 |
| DUTY | CONT |
| TEMPERATURE RISE | 60 |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | BACK BOTTOM |
| SHAFT HEIGHT | 8" |
| DRIVE SHAFT DIAMETER | 2 1/2" |
| DRIVE SHAFT LENGTH | 4 3/8" |
