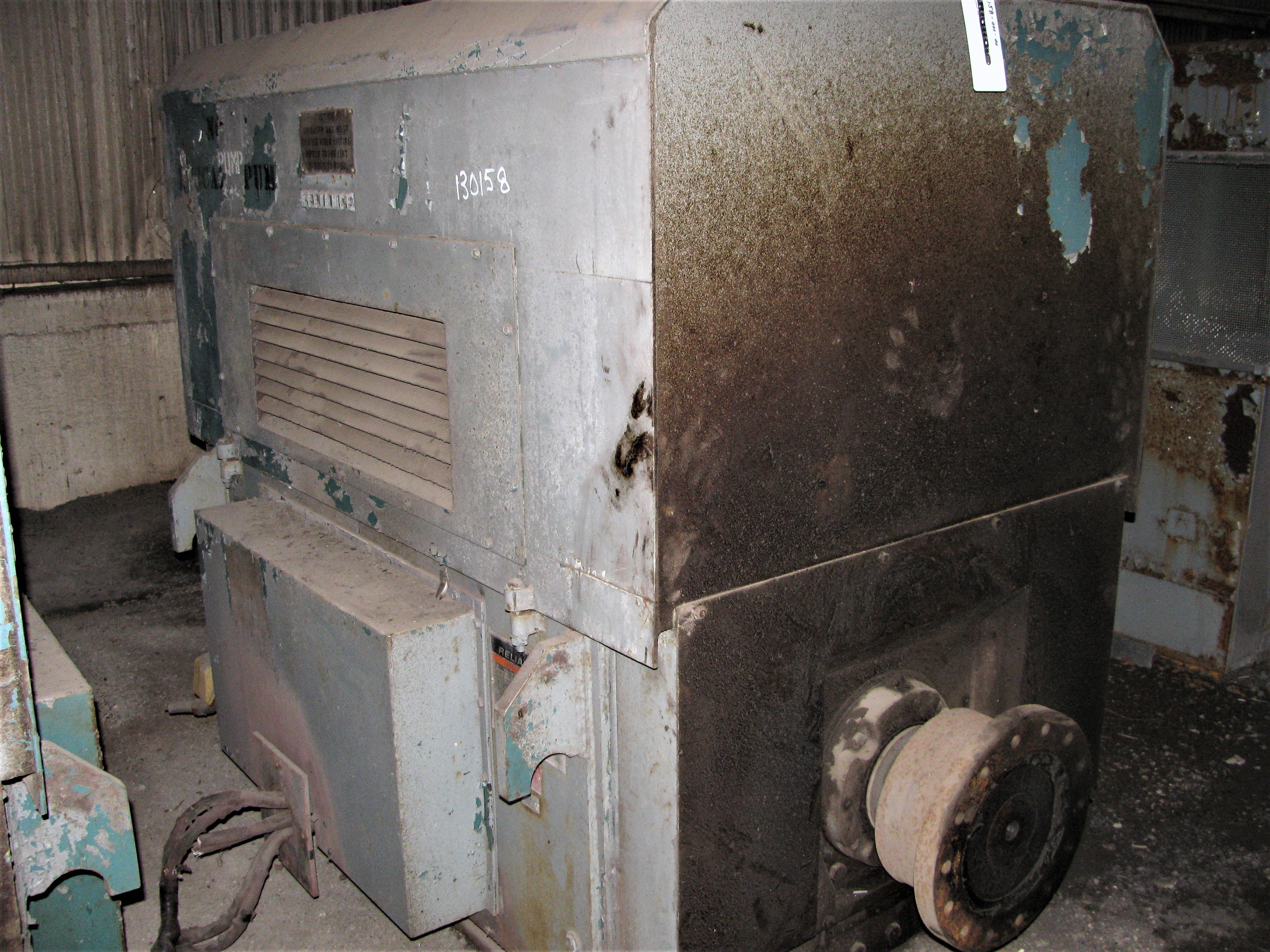

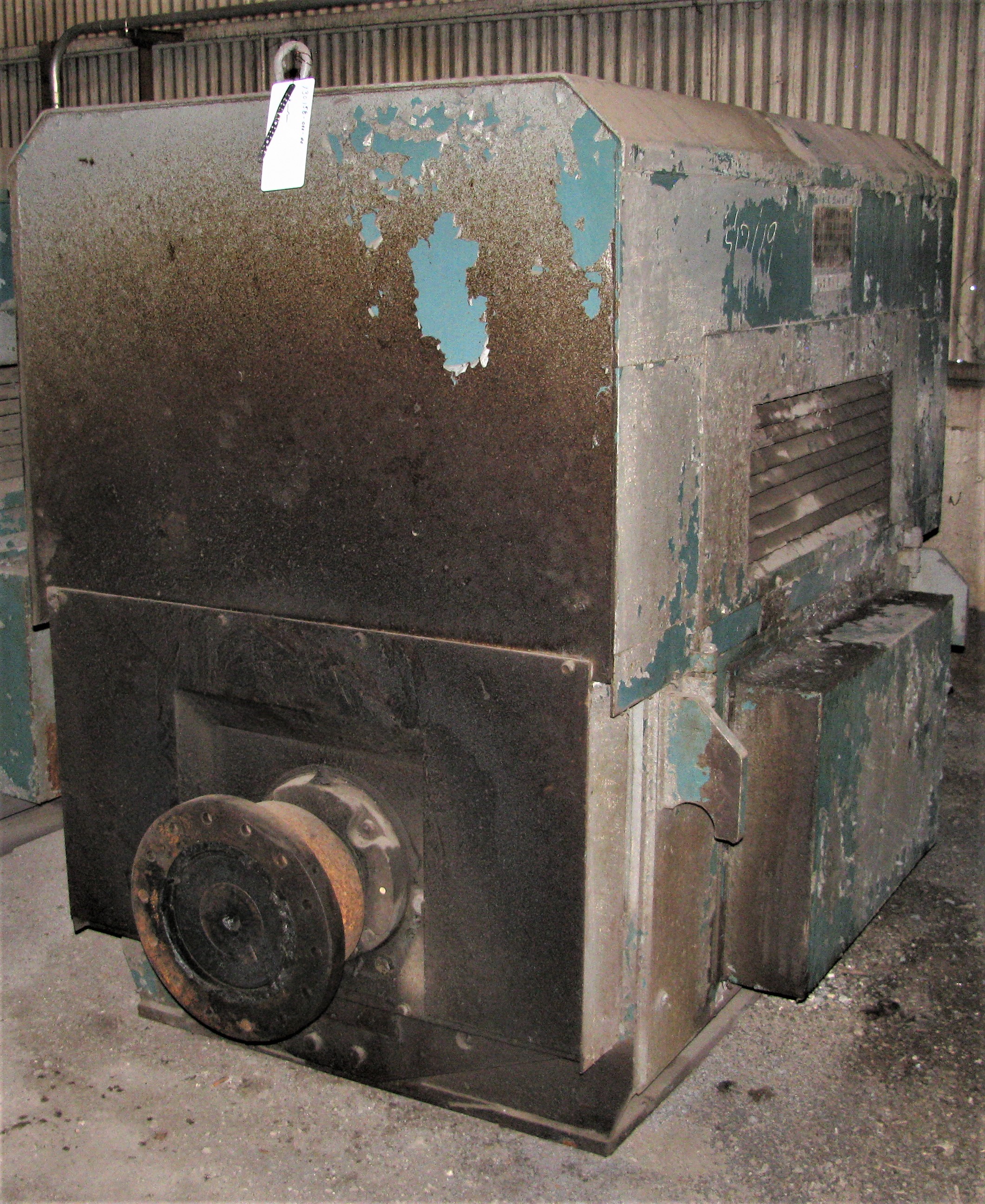

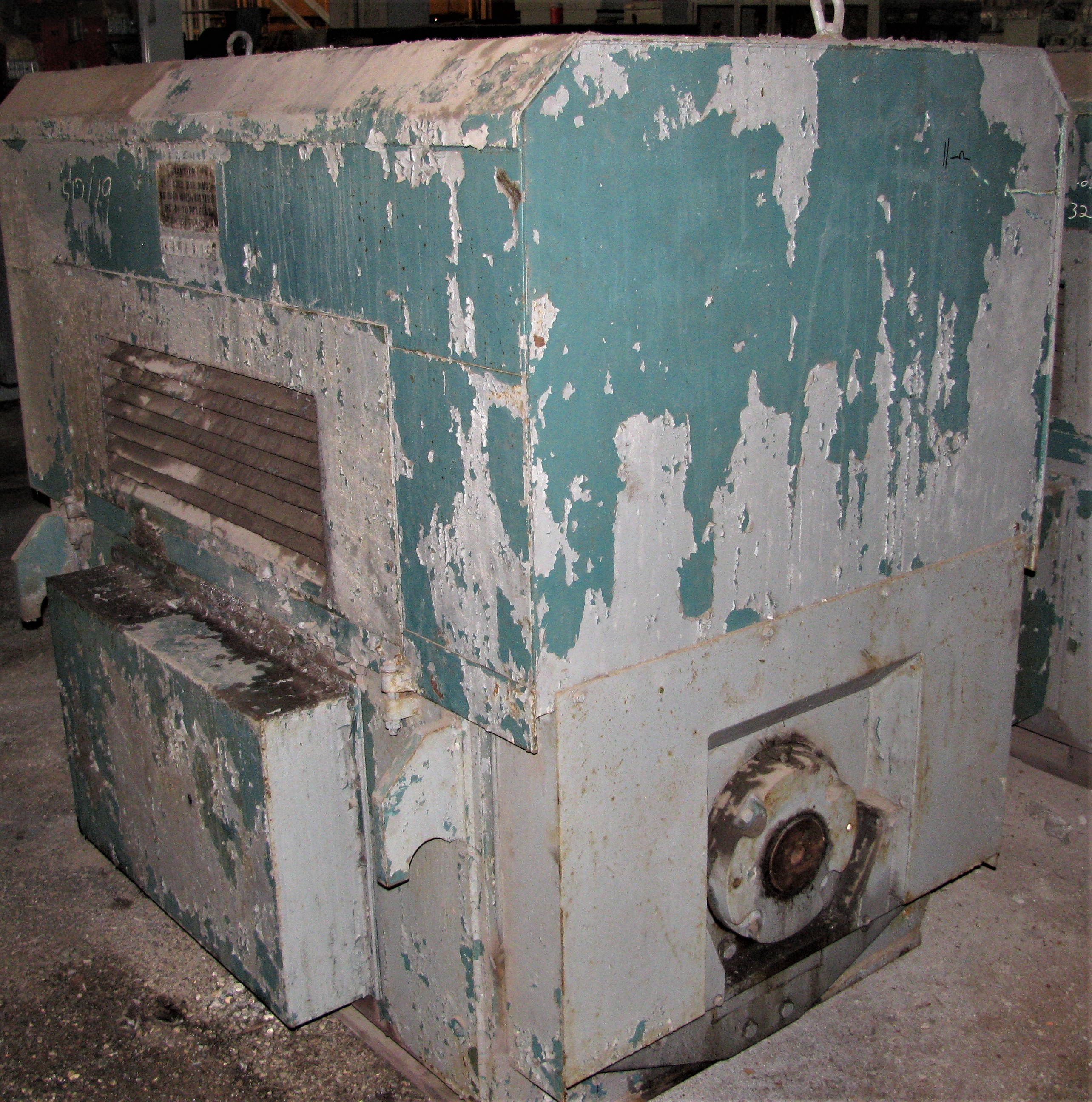

2000 HP, 1787 RPM, 4160 VOLT, RELIANCE, 6811S, INDUCTION AC MOTOR
 "13015800000 2000 HP, 1787 RPM, 4160 VOLT, RELIANCE, 6811S, INDUCTION AC MOTOR")
 "13015800000 2000 HP, 1787 RPM, 4160 VOLT, RELIANCE, 6811S, INDUCTION AC MOTOR")
 "13015800000 2000 HP, 1787 RPM, 4160 VOLT, RELIANCE, 6811S, INDUCTION AC MOTOR")
 "13015800000 2000 HP, 1787 RPM, 4160 VOLT, RELIANCE, 6811S, INDUCTION AC MOTOR")
 "13015800000 2000 HP, 1787 RPM, 4160 VOLT, RELIANCE, 6811S, INDUCTION AC MOTOR")
| INVENTORY ID | 13015800000 |
| TITLE | 2000 HP, 1787 RPM, 4160 VOLT, RELIANCE, 6811S, INDUCTION AC MOTOR |
| HORSEPOWER | 2000 |
| SPEED NAMEPLATE | 1787 |
| VOLTAGE | 4160 |
| MANUFACTURER | RELIANCE |
| FRAME | 6811S |
| ENCLOSURE | WP2 |
| SHAFT | SESS |
| DESIGN | B |
| CODE | F |
| INSULATION CLASS | B |
| BEARINGS | ROLLER BEARING |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 243 |
| SERIAL NUMBER OR ID NUMBER | IX336089-A1-XE |
| WEIGHT | 9,915 |
| DUTY | CONT |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | NO |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 17 1/2" |
| DRIVE SHAFT DIAMETER | 4 7/8" |
| DRIVE SHAFT LENGTH | 8 3/4" |
