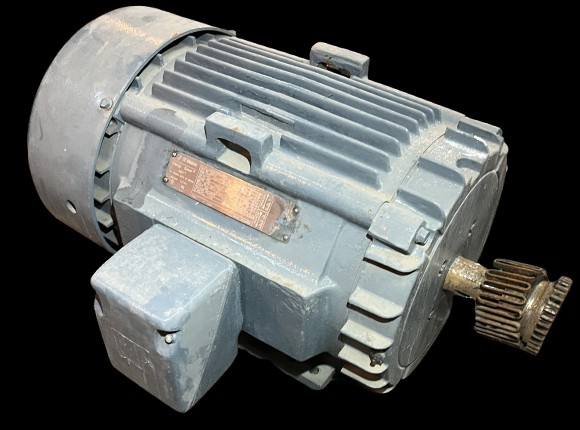

30 HP, 1770 RPM, 460V, GENERAL ELECTRIC, 286T INDUCTION AC MOTOR
 "12382100000 30 HP, 1770 RPM, 460V, GENERAL ELECTRIC, 286T INDUCTION AC MOTOR")
 "12382100000 30 HP, 1770 RPM, 460V, GENERAL ELECTRIC, 286T INDUCTION AC MOTOR")

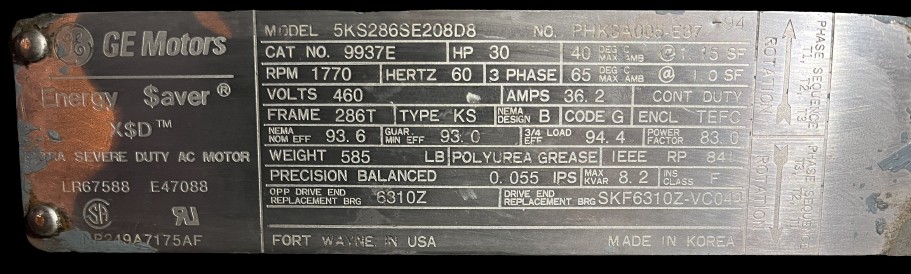

| INVENTORY ID | 12382100000 |
| TITLE | 30 HP, 1770 RPM, 460V, GENERAL ELECTRIC, 286T INDUCTION AC MOTOR |
| HORSEPOWER | 30 |
| SPEED NAMEPLATE | 1770 |
| VOLTAGE | 460 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 286T |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | G |
| TYPE | KS |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 36.2 |
| SERIAL NUMBER OR ID NUMBER | PHK3A005-E37-94 |
| MODEL NUMBER OR STYLE NUMBER | 5KS286SE208D8 |
| WEIGHT | 585 |
| DUTY | CONTINUOUS |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 7" |
| DRIVE SHAFT DIAMETER | 1 7/8" |
| DRIVE SHAFT LENGTH | 4 1/2" |
