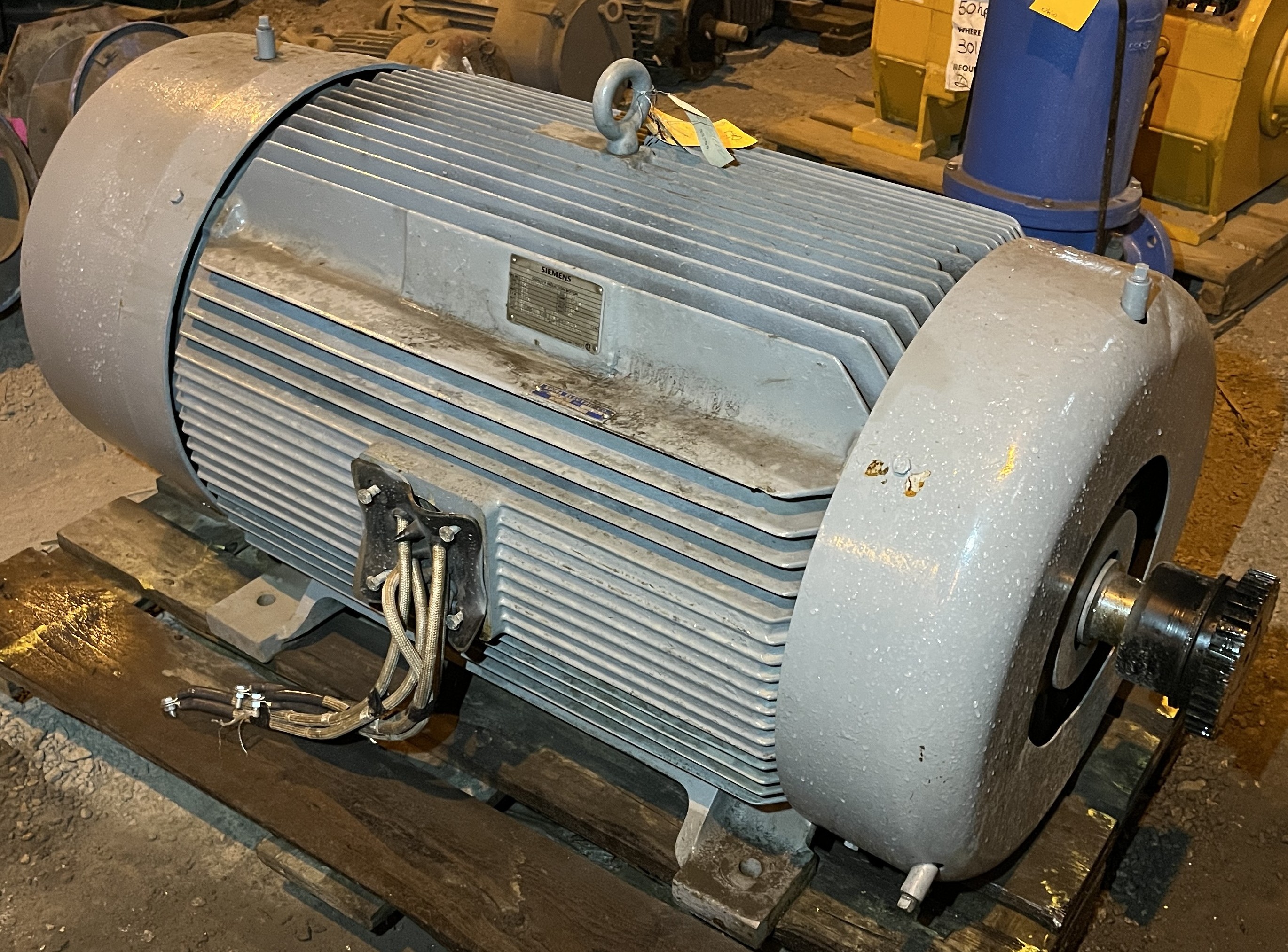

200 HP, 1185 RPM, 460V, SIEMENS, 449TS, INDUCTION AC MOTOR
 "12381200000 200 HP, 1185 RPM, 460V, SIEMENS, 449TS, INDUCTION AC MOTOR")
 "12381200000 200 HP, 1185 RPM, 460V, SIEMENS, 449TS, INDUCTION AC MOTOR")
| INVENTORY ID | 12381200000 |
| TITLE | 200 HP, 1185 RPM, 460V, SIEMENS, 449TS, INDUCTION AC MOTOR |
| HORSEPOWER | 200 |
| SPEED NAMEPLATE | 1185 |
| VOLTAGE | 460 |
| MANUFACTURER | SIEMENS |
| FRAME | 449TS |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | G |
| TYPE | RGZ |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 228 |
| SERIAL NUMBER OR ID NUMBER | ORD NO. 2184149001 |
| MODEL NUMBER OR STYLE NUMBER | TD444TSTFS80276BRW |
| DUTY | CONT |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 10 1/2" |
| DRIVE SHAFT DIAMETER | 2 3/8" |
| DRIVE SHAFT LENGTH | 4 1/2" |
