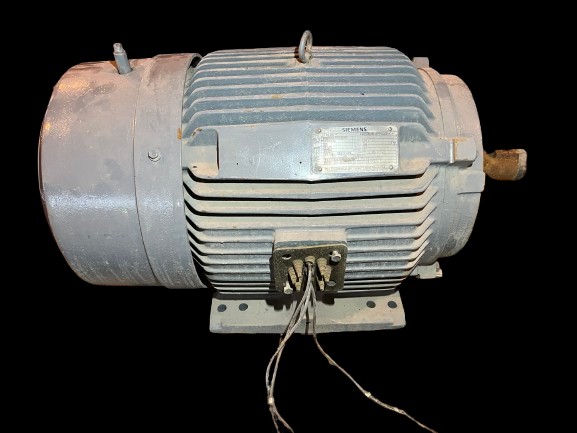

25 HP, 1770 RPM, 460V, SIEMENS, 326TS, INDUCTION AC MOTOR
 "12380500000 25 HP, 1770 RPM, 460V, SIEMENS, 326TS, INDUCTION AC MOTOR")
 "12380500000 25 HP, 1770 RPM, 460V, SIEMENS, 326TS, INDUCTION AC MOTOR")
| INVENTORY ID | 12380500000 |
| TITLE | 25 HP, 1770 RPM, 460V, SIEMENS, 326TS, INDUCTION AC MOTOR |
| HORSEPOWER | 25 |
| SPEED NAMEPLATE | 1770 |
| VOLTAGE | 460 |
| MANUFACTURER | SIEMENS |
| FRAME | 326TS |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | G |
| TYPE | RGZESD |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 29.5 |
| SERIAL NUMBER OR ID NUMBER | ORD. NO 2175298001 |
| WEIGHT | 664 |
| DUTY | CONTINUOUS |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 8 1/4" |
| DRIVE SHAFT DIAMETER | 1 7/8" |
| DRIVE SHAFT LENGTH | 3 3/4" |
| BRAKE SHAFT DIAMETER | N/A |
| BRAKE SHAFT LENGTH | N/A |
