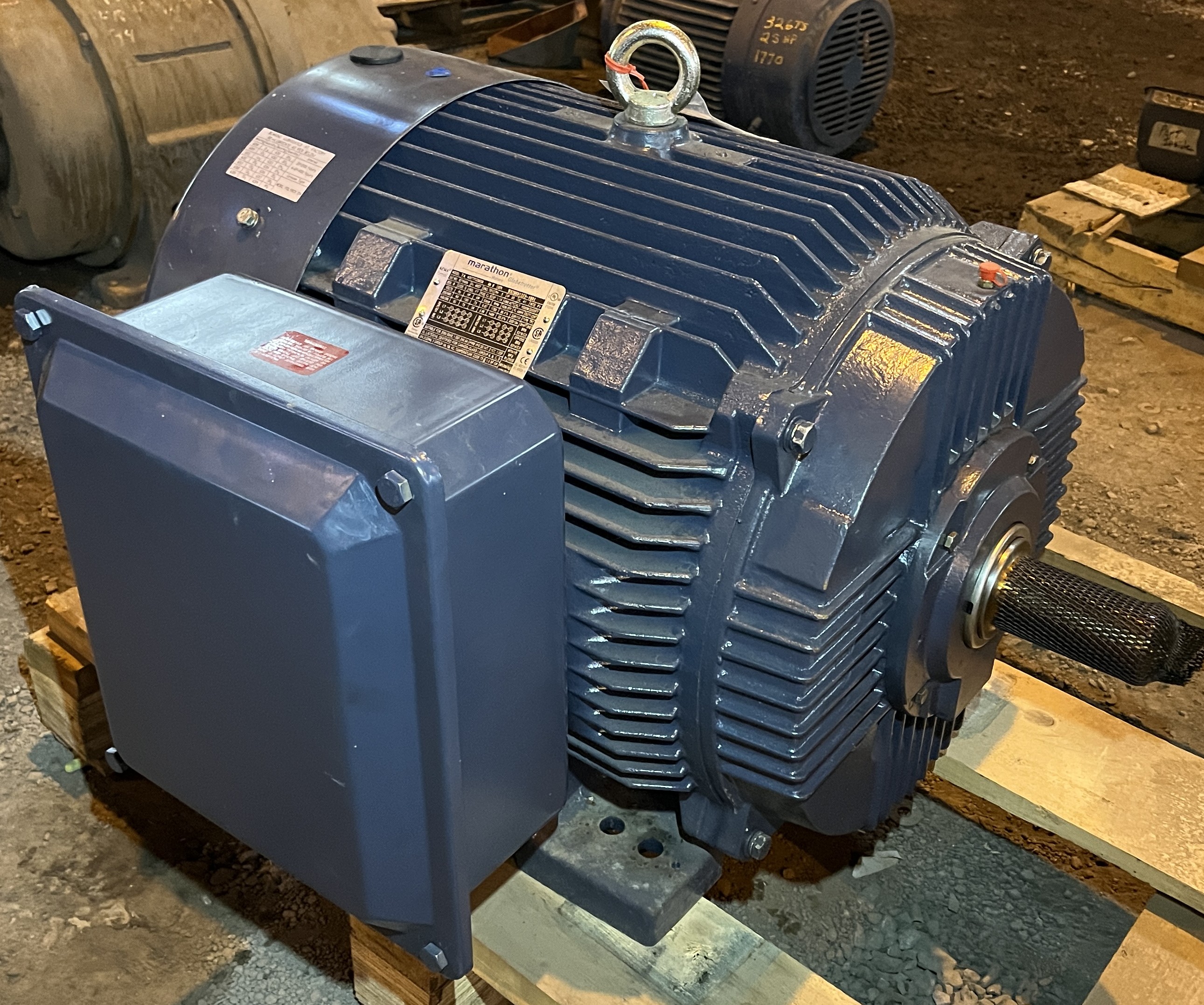

100 HP, 1785 RPM, 230/460V, MARTHON, 405T, INDUCTION AC MOTOR - UNUSED SPARE
 "12380300000 100 HP, 1785 RPM, 230/460V, MARTHON, 405T, INDUCTION AC MOTOR - UNUSED SPARE")
 "12380300000 100 HP, 1785 RPM, 230/460V, MARTHON, 405T, INDUCTION AC MOTOR - UNUSED SPARE")

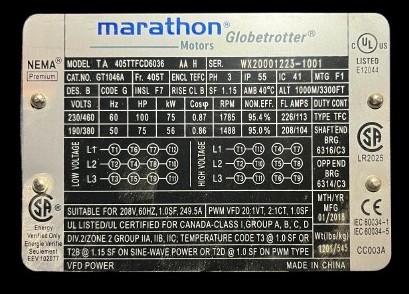

| INVENTORY ID | 12380300000 |
| TITLE | 100 HP, 1785 RPM, 230/460V, MARTHON, 405T, INDUCTION AC MOTOR - UNUSED SPARE |
| HORSEPOWER | 100 |
| SPEED NAMEPLATE | 1785 |
| VOLTAGE | 230 |
| VOLTAGE 2 | 460 |
| MANUFACTURER | MARATHON |
| FRAME | 405T |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | G |
| TYPE | TFC |
| INSULATION CLASS | F7 |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 226/113 |
| SERIAL NUMBER OR ID NUMBER | WX20001223-1001 |
| MODEL NUMBER OR STYLE NUMBER | TA405TTFCD6036 AAH |
| WEIGHT | 1,201 |
| DUTY | CONTINUOUS |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 9 3/4" |
| DRIVE SHAFT DIAMETER | 2 1/8" |
| DRIVE SHAFT LENGTH | 4" |
| BRAKE SHAFT DIAMETER | N/A |
| BRAKE SHAFT LENGTH | N/A |
