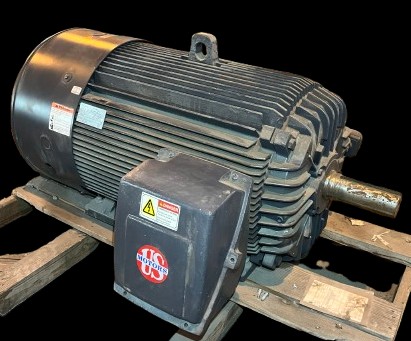

300 HP, 1190 RPM, 230/460V, US MOTORS, 449T, INDUCTION AC MOTOR
 "12380200000 300 HP, 1190 RPM, 230/460V, US MOTORS, 449T, INDUCTION AC MOTOR")
 "12380200000 300 HP, 1190 RPM, 230/460V, US MOTORS, 449T, INDUCTION AC MOTOR")

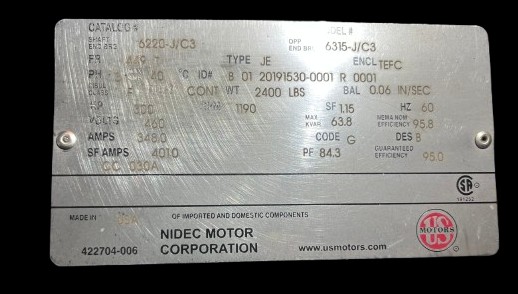

| INVENTORY ID | 12380200000 |
| TITLE | 300 HP, 1190 RPM, 230/460V, US MOTORS, 449T, INDUCTION AC MOTOR |
| HORSEPOWER | 300 |
| SPEED NAMEPLATE | 1190 |
| VOLTAGE | 230 |
| VOLTAGE 2 | 460 |
| MANUFACTURER | US MOTORS |
| FRAME | 449T |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | G |
| TYPE | JE |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 348 |
| SERIAL NUMBER OR ID NUMBER | B0120191530-0001 R 0001 |
| WEIGHT | 2,400 |
| DUTY | CONTINUOUS |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 10 1/2" |
| DRIVE SHAFT DIAMETER | 3 3/8" |
| DRIVE SHAFT LENGTH | 8 1/4" |
| BRAKE SHAFT DIAMETER | N/A |
| BRAKE SHAFT LENGTH | N/A |
