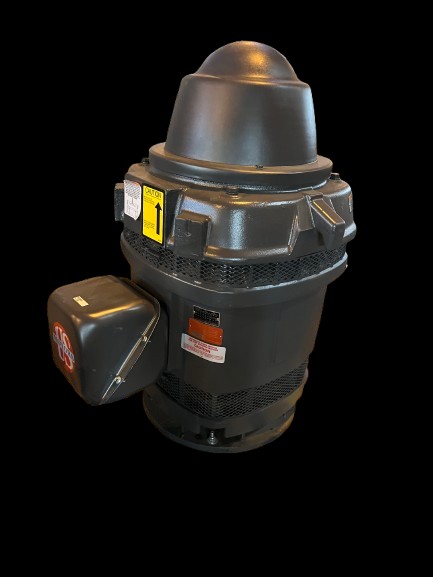

40 HP, 1780 RPM, 230/460V , US MOTORS, 324TP, AC VERTICAL PUMP MOTOR, WITH HOLLOW SHAFT WITH RATCHET - UNUSED SPARE
 "12380100000 40 HP, 1780 RPM, 230/460V , US MOTORS, 324TP, AC VERTICAL PUMP MOTOR, WITH HOLLOW SHAFT WITH RATCHET - UNUSED SPARE")
 "12380100000 40 HP, 1780 RPM, 230/460V , US MOTORS, 324TP, AC VERTICAL PUMP MOTOR, WITH HOLLOW SHAFT WITH RATCHET - UNUSED SPARE")
 "12380100000 40 HP, 1780 RPM, 230/460V , US MOTORS, 324TP, AC VERTICAL PUMP MOTOR, WITH HOLLOW SHAFT WITH RATCHET - UNUSED SPARE")

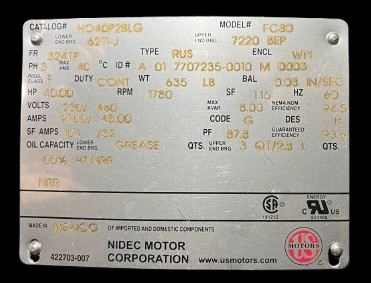

| INVENTORY ID | 12380100000 |
| TITLE | 40 HP, 1780 RPM, 230/460V , US MOTORS, 324TP, AC VERTICAL PUMP MOTOR, WITH HOLLOW SHAFT WITH RATCHET - UNUSED SPARE |
| HP | 40 |
| RPM | 1780 |
| VOLTAGE 2 | 230 |
| VOLTAGE 1 | 460 |
| MANUFACTURER | US MOTORS |
| FRAME | 324TP |
| ENCLOSURE | WPI |

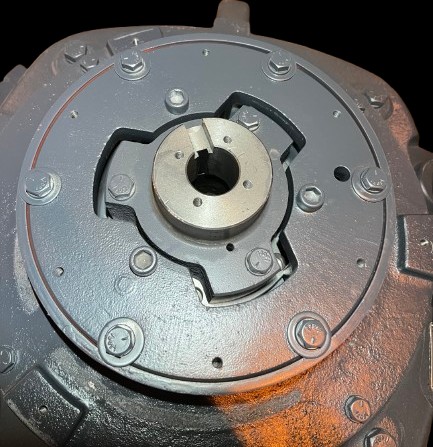

| SHAFT TYPE | HOLLOW WITH RATCHET |
| DESIGN | B |
| CODE | G |
| TYPE | RUS |
| UPPER BEARINGS | 7220BEP |
| LOWER BEARINGS | 6211-J |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| HERTZ | 60 |
| AMPS | 91/45 |
| SERIAL/ID NUMBER | A017707235-0010M0003 |
| MODEL/STYLE NUMBER | FC80 |
| WEIGHT | 635 |
| DUTY | CONT |
| DEGREE TEMP RISE | 40 |
| FLANGE DIAMETER | 16 1/4" |
| DIAMETER CTR TO CTR | 14 3/4" |
| DIAMETER OF HOLE | 5/8" |
| DRIVE SHAFT DIAMETER | N/A |
| DRIVE SHAFT LENGTH | N/A |
