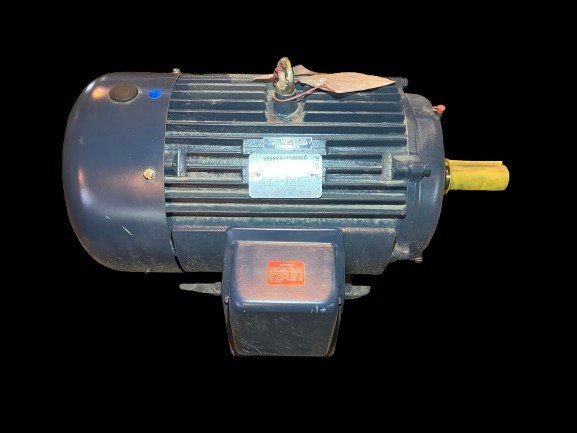

30 HP, 1780 RPM, 230/460V, LEESON, 286TS, INDUCTION AC MOTOR
 "12379900000 30 HP, 1780 RPM, 230/460V, LEESON, 286TS, INDUCTION AC MOTOR")
 "12379900000 30 HP, 1780 RPM, 230/460V, LEESON, 286TS, INDUCTION AC MOTOR")

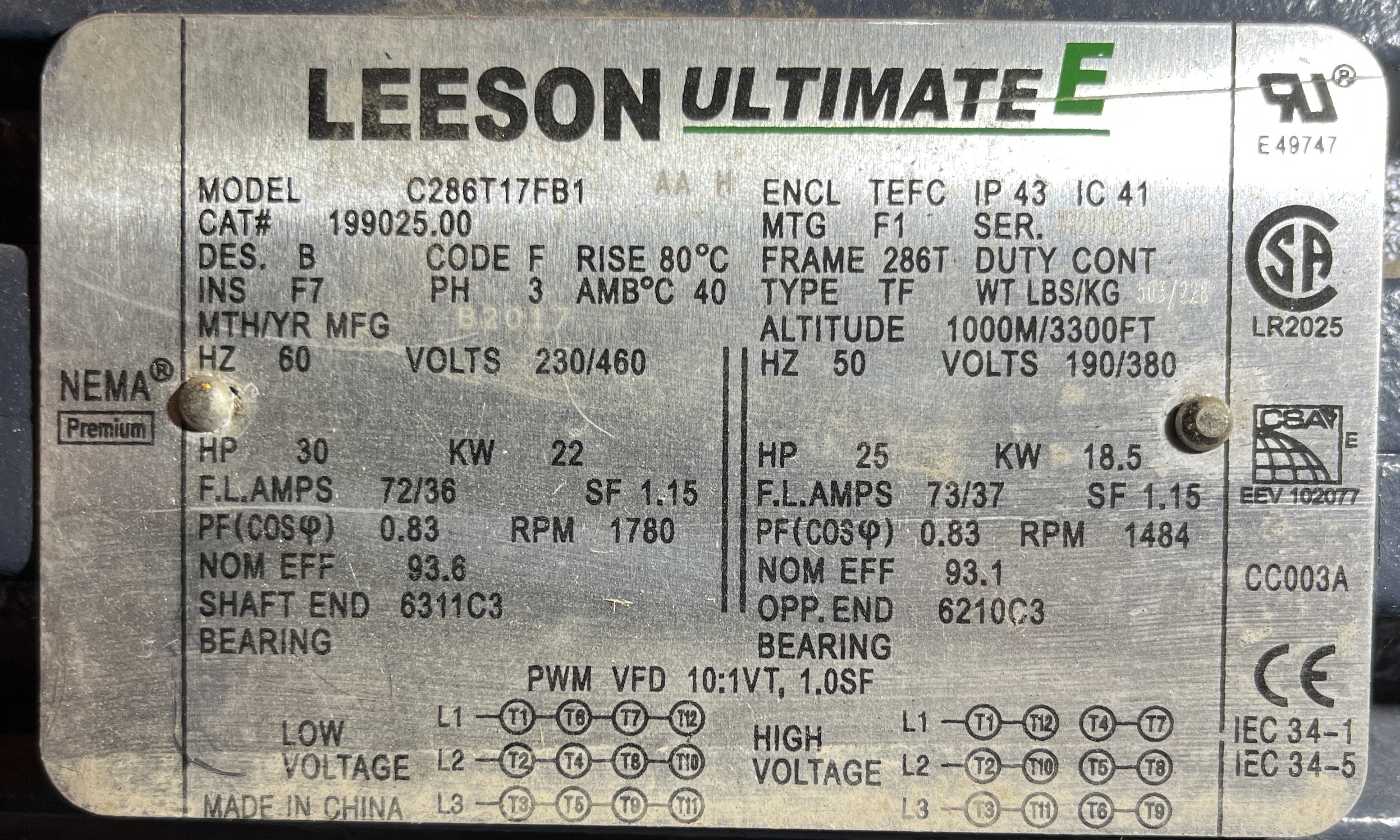

| INVENTORY ID | 12379900000 |
| TITLE | 30 HP, 1780 RPM, 230/460V, LEESON, 286TS, INDUCTION AC MOTOR |
| HORSEPOWER | 30 |
| SPEED NAMEPLATE | 1780 |
| VOLTAGE | 230 |
| VOLTAGE 2 | 460 |
| MANUFACTURER | LEESON |
| FRAME | 286T |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | F |
| TYPE | TF |
| INSULATION CLASS | F7 |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 72/36 |
| SERIAL NUMBER OR ID NUMBER | WX2000540-17010 |
| MODEL NUMBER OR STYLE NUMBER | C286T17FB1 |
| WEIGHT | 503 |
| DUTY | CONTINUOUS |
| TEMPERATURE RISE | 80 |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 7" |
| DRIVE SHAFT DIAMETER | 1 7/8" |
| DRIVE SHAFT LENGTH | 4 1/2" |
| BRAKE SHAFT DIAMETER | N/A |
| BRAKE SHAFT LENGTH | N/A |
