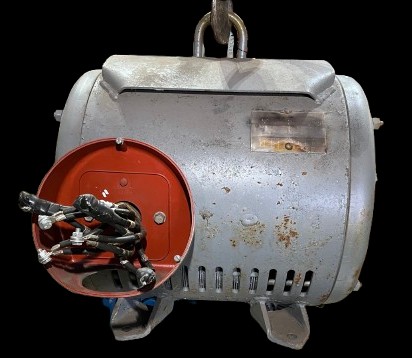

75 HP, 3520 RPM, 460 VOLT, LINCOLN, 364TS, AC INDUCTION MOTOR
 "12375600000 75 HP, 3520 RPM, 460 VOLT, LINCOLN, 364TS, AC INDUCTION MOTOR")
 "12375600000 75 HP, 3520 RPM, 460 VOLT, LINCOLN, 364TS, AC INDUCTION MOTOR")
| INVENTORY ID | 12375600000 |
| TITLE | 75 HP, 3520 RPM, 460 VOLT, LINCOLN, 364TS, AC INDUCTION MOTOR |
| HORSEPOWER | 75 |
| SPEED NAMEPLATE | 3520 |
| VOLTAGE | 460 |
| MANUFACTURER | LINCOLN |
| FRAME | 364TS |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | D |
| TYPE | TKKH |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 176 / 88 |
| SERIAL NUMBER OR ID NUMBER | 2063515 |
| WEIGHT | 705 |
| DUTY | CONT |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 9" |
| DRIVE SHAFT DIAMETER | 1 7/8" |
| DRIVE SHAFT LENGTH | 3 1/2" |
| BRAKE SHAFT DIAMETER | N/A |
| BRAKE SHAFT LENGTH | N/A |
