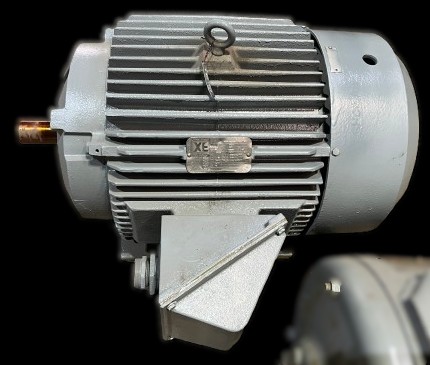

50 HP, 3555 RPM, 460 VOLT, RELIANCE, 326TS, AC INDUCTION MOTOR
 "12375400000 50 HP, 3555 RPM, 460 VOLT, RELIANCE, 326TS, AC INDUCTION MOTOR")
 "12375400000 50 HP, 3555 RPM, 460 VOLT, RELIANCE, 326TS, AC INDUCTION MOTOR")

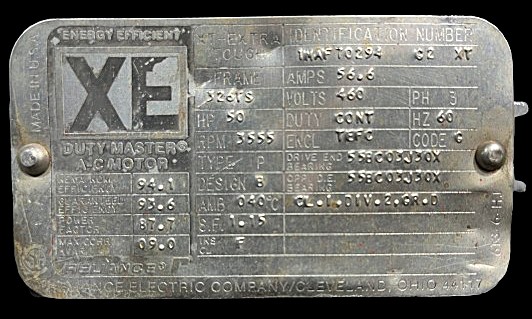

| INVENTORY ID | 12375400000 |
| TITLE | 50 HP, 3555 RPM, 460 VOLT, RELIANCE, 326TS, AC INDUCTION MOTOR |
| HORSEPOWER | 50 |
| SPEED NAMEPLATE | 3555 |
| VOLTAGE | 460 |
| MANUFACTURER | RELIANCE |
| FRAME | 326TS |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | G |
| TYPE | P |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 56.6 |
| SERIAL NUMBER OR ID NUMBER | 1MAFT0294G2XT |
| WEIGHT | 648 |
| DUTY | CONT |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | RIGHT |
| SHAFT HEIGHT | 8" |
| DRIVE SHAFT DIAMETER | 1 7/8" |
| DRIVE SHAFT LENGTH | 3 1/2" |
| BRAKE SHAFT DIAMETER | N/A |
| BRAKE SHAFT LENGTH | N/A |
