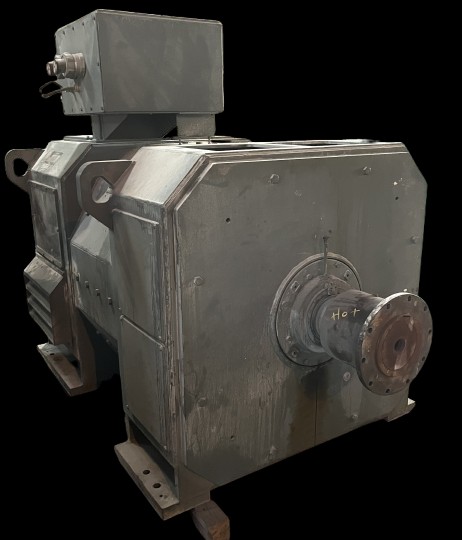

500 HP, 250/1200 RPM, 500 VOLT GENERAL ELECTRIC, SHUNT, CD4682, DC MOTOR
 "12370600000 500 HP, 250/1200 RPM, 500 VOLT GENERAL ELECTRIC, SHUNT, CD4682, DC MOTOR")
 "12370600000 500 HP, 250/1200 RPM, 500 VOLT GENERAL ELECTRIC, SHUNT, CD4682, DC MOTOR")
| INVENTORY ID | 12370600000 |
| TITLE | 500 HP, 250/1200 RPM, 500 VOLT GENERAL ELECTRIC, SHUNT, CD4682, DC MOTOR |
| HORSEPOWER | 500 |
| SPEED | 250 |
| SPEED 2 | 1200 |
| VOLTAGE | 500 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | CD4682 |
| WINDING | SHUNT |
| ENCLOSURE | SPFG-SV |
| SHAFT | SESS |
| AMPERAGE | 830 |
| DUTY | CONT |
| BEARINGS | A/F |
| FIELD VOLTAGE | 300 / 150 |
| FIELD AMPERAGE | 13.2 / 3.31 |
| FIELD RESISTANCE | 17.7 @ 25 DEGREE CELCIUS |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | WG-2-44-WG |
| MODEL NUMBER OR STYLE NUMBER | 5CD466KA812C804 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | C |
| WEIGHT | 19,900 |
| DRIVE SHAFT DIMENSION | 6 3/4" |
| DRIVE SHAFT LENGTH | 12 1/2" |
| BRAKE SHAFT DIAMETER | N/A |
| BRAKE SHAFT LENGTH | N/A |
| SHAFT HEIGHT | 26" |
| MOTOR LENGTH | 96" |
| WIDTH BETWEEN FEET | 52" |
| LENGTH BETWEEN FEET | 60" |
