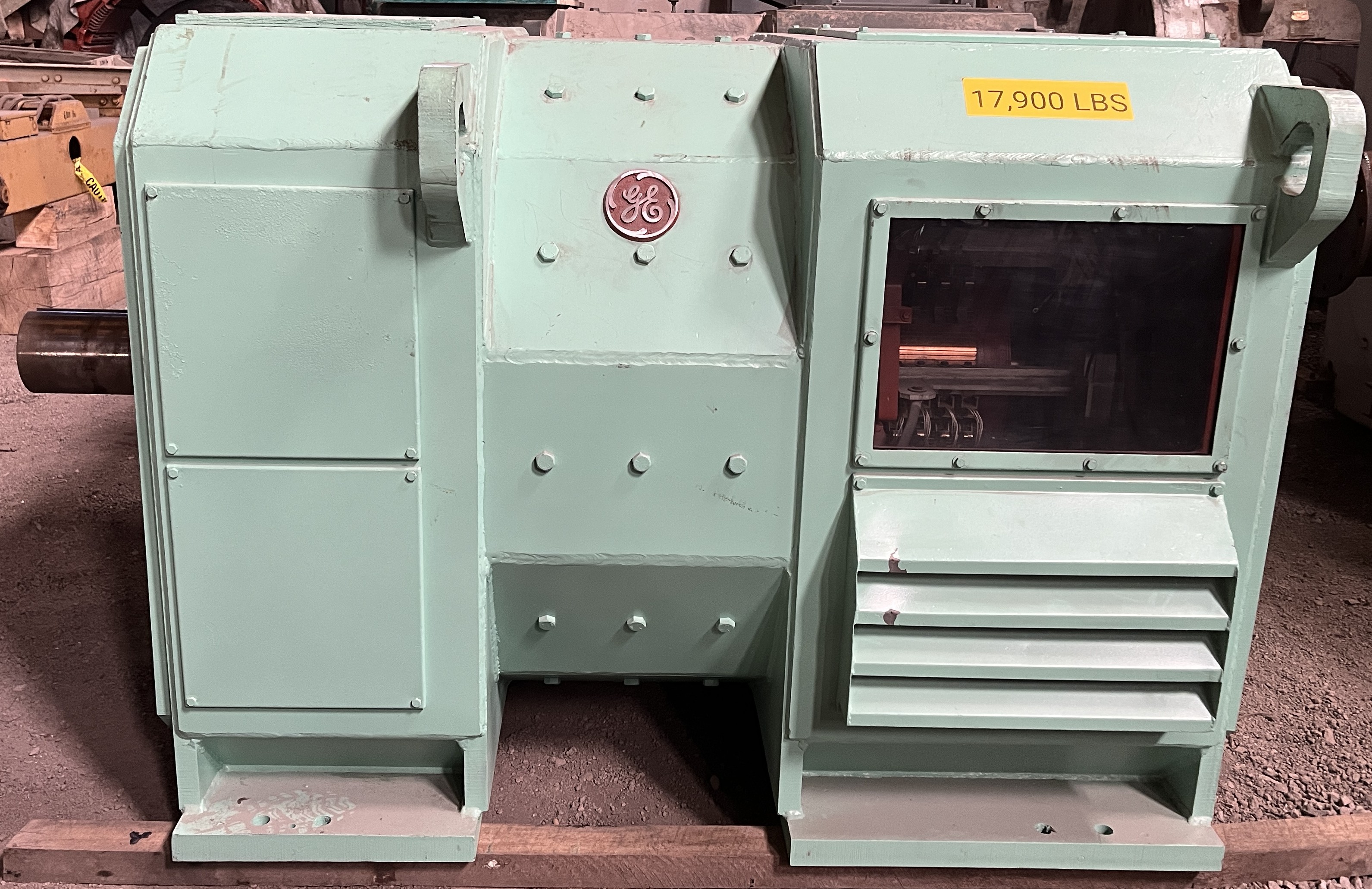

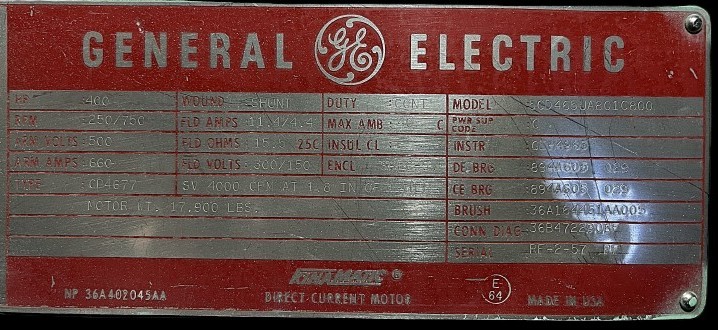

400 HP, 250/750 RPM, 500 VOLT GENERAL ELECTRIC, SHUNT, CD4677, DC MOTOR
 "12370500000 400 HP, 250/750 RPM, 500 VOLT GENERAL ELECTRIC, SHUNT, CD4677, DC MOTOR")
 "12370500000 400 HP, 250/750 RPM, 500 VOLT GENERAL ELECTRIC, SHUNT, CD4677, DC MOTOR")
| INVENTORY ID | 12370500000 |
| TITLE | 400 HP, 250/750 RPM, 500 VOLT GENERAL ELECTRIC, SHUNT, CD4677, DC MOTOR |
| HORSEPOWER | 400 |
| SPEED | 250 |
| SPEED 2 | 750 |
| VOLTAGE | 500 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | CD4677 |
| WINDING | SHUNT |
| ENCLOSURE | SPFG-SV |
| SHAFT | SESS |
| AMPERAGE | 660 |
| DUTY | CONT |
| BEARINGS | A/F |
| FIELD VOLTAGE | 300 / 150 |
| FIELD AMPERAGE | 11.4 / 4.4 |
| FIELD RESISTANCE | 15.5 @ 25 DEGREE CELCIUS |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | RF-2-57 RF |
| MODEL NUMBER OR STYLE NUMBER | 5CD465JA801C800 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | C |
| WEIGHT | 17,900 |
| DRIVE SHAFT DIMENSION | 6 3/4" |
| DRIVE SHAFT LENGTH | 12 1/2" |
| BRAKE SHAFT DIAMETER | N/A |
| BRAKE SHAFT LENGTH | N/A |
| SHAFT HEIGHT | 26" |
| MOTOR LENGTH | 74" |
| WIDTH BETWEEN FEET | 52 1/2" |
| LENGTH BETWEEN FEET | 56" |
