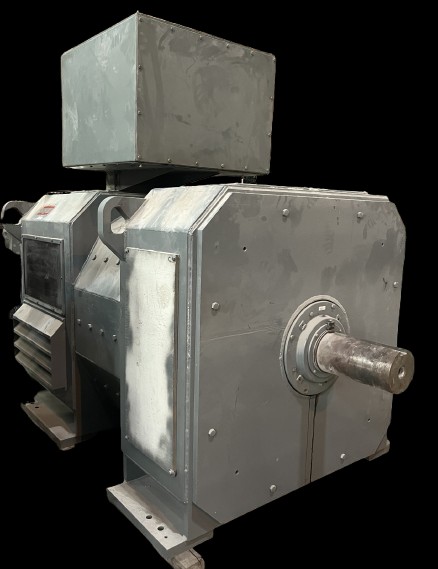

1500 HP, 500/750 RPM, 500 VOLT GENERAL ELECTRIC, SHUNT, CD4793, DC MOTOR
 "12370400000 1500 HP, 500/750 RPM, 500 VOLT GENERAL ELECTRIC, SHUNT, CD4793, DC MOTOR")
 "12370400000 1500 HP, 500/750 RPM, 500 VOLT GENERAL ELECTRIC, SHUNT, CD4793, DC MOTOR")
| INVENTORY ID | 12370400000 |
| TITLE | 1500 HP, 500/750 RPM, 500 VOLT GENERAL ELECTRIC, SHUNT, CD4793, DC MOTOR |
| HORSEPOWER | 1500 |
| SPEED | 500 |
| SPEED 2 | 750 |
| VOLTAGE | 500 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | CD4793 |
| WINDING | SHUNT |
| ENCLOSURE | SPFG-SV |
| SHAFT | SESS |
| AMPERAGE | 2390 |
| DUTY | CONT |
| BEARINGS | A/F |
| FIELD VOLTAGE | 300 / 150 |
| FIELD AMPERAGE | 17.6 / 11.5 |
| FIELD RESISTANCE | 13.1 @ 25 DEGREE CELCIUS |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | NF-2-86 OF |
| MODEL NUMBER OR STYLE NUMBER | 5CD476RA806C800 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | C |
| WEIGHT | 27,200 |
| DRIVE SHAFT DIMENSION | 7 3/4" |
| DRIVE SHAFT LENGTH | 14 1/2" |
| BRAKE SHAFT DIAMETER | N/A |
| BRAKE SHAFT LENGTH | N/A |
| SHAFT HEIGHT | 32 1/2" |
| MOTOR LENGTH | 108" |
| WIDTH BETWEEN FEET | 63 1/2" |
| LENGTH BETWEEN FEET | 70" |
