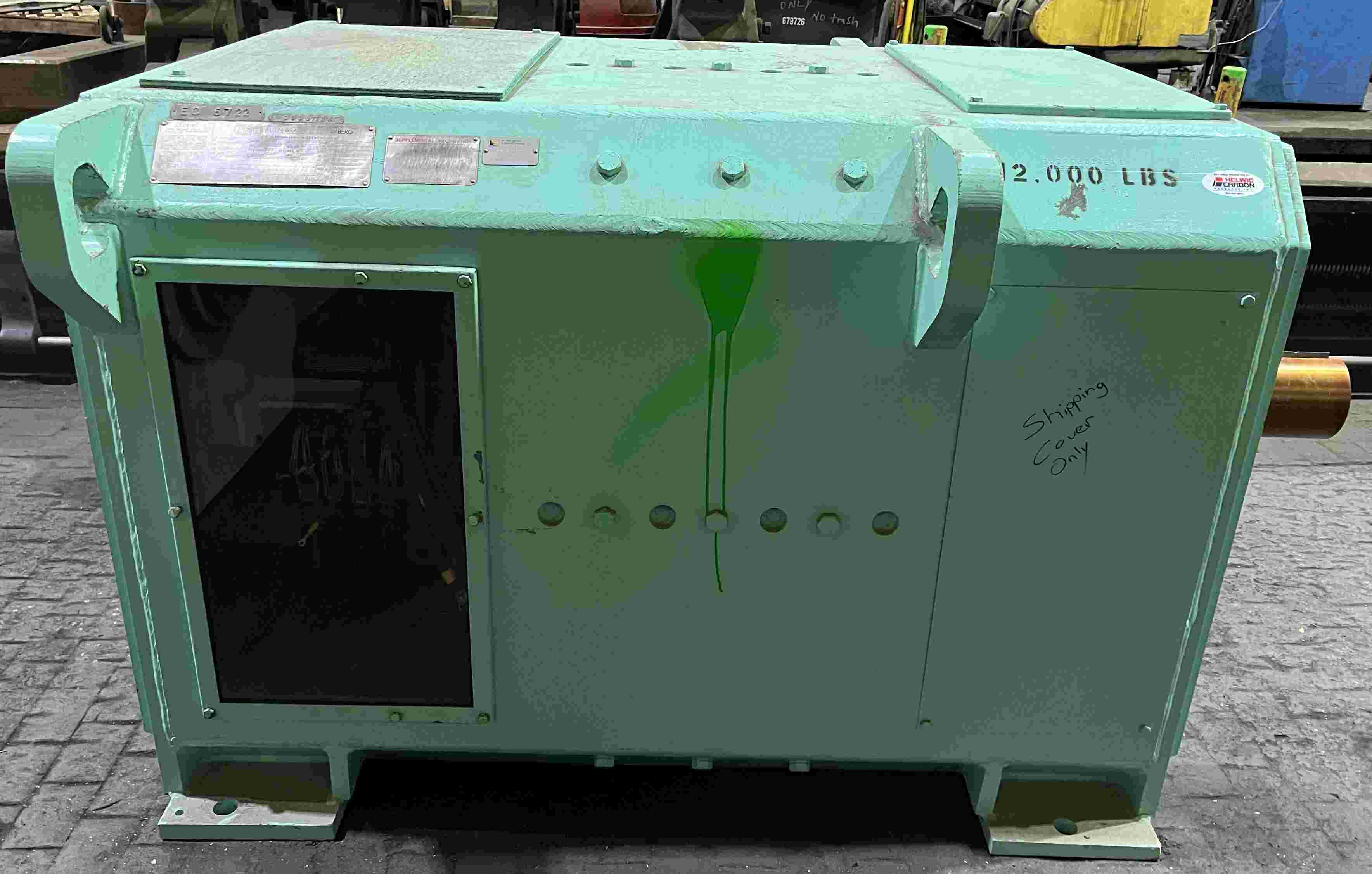

250 HP, 250/750 RPM, 500 VOLT GENERAL ELECTRIC, SHUNT, CD4566, DC MOTOR
 "12370200000 250 HP, 250/750 RPM, 500 VOLT GENERAL ELECTRIC, SHUNT, CD4566, DC MOTOR")
 "12370200000 250 HP, 250/750 RPM, 500 VOLT GENERAL ELECTRIC, SHUNT, CD4566, DC MOTOR")
| INVENTORY ID | 12370200000 |
| TITLE | 250 HP, 250/750 RPM, 500 VOLT GENERAL ELECTRIC, SHUNT, CD4566, DC MOTOR |
| HORSEPOWER | 250 |
| SPEED | 250 |
| SPEED 2 | 750 |
| VOLTAGE | 500 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | CD4566 |
| WINDING | SHUNT |
| ENCLOSURE | SPFG-SV |
| SHAFT | SESS |
| AMPERAGE | 430 |
| DUTY | CONT |
| BEARINGS | A/F |
| FIELD VOLTAGE | 300 / 150 |
| FIELD AMPERAGE | 10.8 / 2.4 |
| FIELD RESISTANCE | 12.0 @ 25 DEGREE CELCIUS |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | PF-2-52 RF |
| MODEL NUMBER OR STYLE NUMBER | 5CD455HA809C802 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | C |
| WEIGHT | 12,000 |
| DRIVE SHAFT DIMENSION | 6" |
| DRIVE SHAFT LENGTH | 11" |
| BRAKE SHAFT DIAMETER | N/A |
| BRAKE SHAFT LENGTH | N/A |
| SHAFT HEIGHT | 21" |
| MOTOR LENGTH | 77"" |
| WIDTH BETWEEN FEET | 42" |
| LENGTH BETWEEN FEET | 50" |
