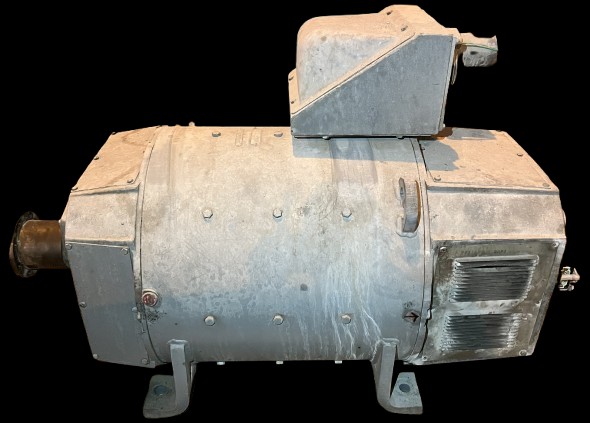

75 HP, 500/1500 RPM, 500 VOLT GENERAL ELECTRIC, SHUNT, CD508AT, DC MOTOR
 "12369900000 75 HP, 500/1500 RPM, 500 VOLT GENERAL ELECTRIC, SHUNT, CD508AT, DC MOTOR")
 "12369900000 75 HP, 500/1500 RPM, 500 VOLT GENERAL ELECTRIC, SHUNT, CD508AT, DC MOTOR")

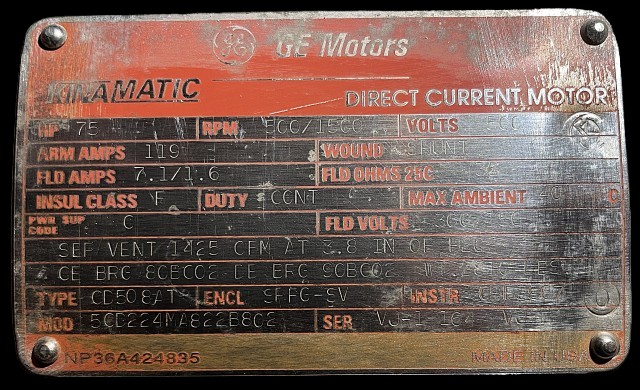

| INVENTORY ID | 12369900000 |
| TITLE | 75 HP, 500/1500 RPM, 500 VOLT GENERAL ELECTRIC, SHUNT, CD508AT, DC MOTOR |
| HORSEPOWER | 75 |
| SPEED | 500 |
| SPEED 2 | 1500 |
| VOLTAGE | 500 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | CD508AT |
| WINDING | SHUNT |
| ENCLOSURE | SPFG-SV |
| SHAFT | SESS |
| AMPERAGE | 119 |
| DUTY | CONT |
| BEARINGS | A/F |
| FIELD VOLTAGE | 300 / 150 |
| FIELD AMPERAGE | 7.1 / 1.6 |
| FIELD RESISTANCE | 35 @ 25 DEGREE CELCIUS |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | VJ-1-164 |
| MODEL NUMBER OR STYLE NUMBER | 5CD224MA822B802 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | C |
| DRIVE SHAFT DIMENSION | 3 1/4" |
| DRIVE SHAFT LENGTH | 6 1/4" |
| BRAKE SHAFT DIAMETER | N/A |
| BRAKE SHAFT LENGTH | N/A |
| SHAFT HEIGHT | 13 1/2" |
| MOTOR LENGTH | 58" |
| WIDTH BETWEEN FEET | 20" |
| LENGTH BETWEEN FEET | 25 1/4" |
