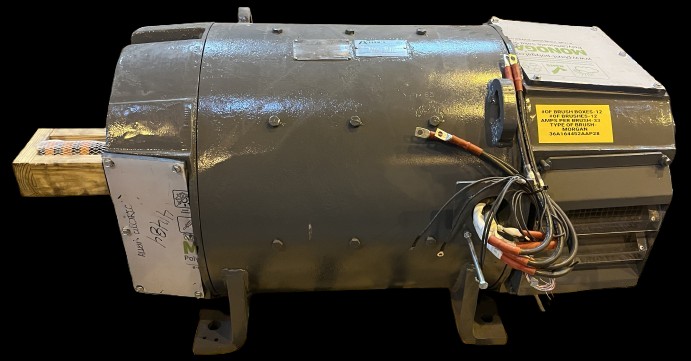

250 HP, 1150/1700 RPM, 500 VOLT GENERAL ELECTRIC, SHUNT, CD508AT, DC MOTOR
 "12369700000 250 HP, 1150/1700 RPM, 500 VOLT GENERAL ELECTRIC, SHUNT, CD508AT, DC MOTOR")
 "12369700000 250 HP, 1150/1700 RPM, 500 VOLT GENERAL ELECTRIC, SHUNT, CD508AT, DC MOTOR")
| INVENTORY ID | 12369700000 |
| TITLE | 250 HP, 1150/1700 RPM, 500 VOLT GENERAL ELECTRIC, SHUNT, CD508AT, DC MOTOR |
| HORSEPOWER | 250 |
| SPEED | 1150 |
| SPEED 2 | 1700 |
| VOLTAGE | 500 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | CD508AT |
| WINDING | SHUNT |
| ENCLOSURE | SPFG-SV |
| SHAFT | SESS |
| AMPERAGE | 950 |
| DUTY | CONT |
| BEARINGS | A/F |
| FIELD VOLTAGE | 240 / 120 |
| FIELD AMPERAGE | 8.8 / 5.2 |
| FIELD RESISTANCE | 21 @ 25 DEGREE CELCIUS |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | YH-1-165 YH |
| MODEL NUMBER OR STYLE NUMBER | 5CD22-PA092B814 |
| SERVICE FACTOR | 1.15 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | C |
| WEIGHT | 2,810 |
| DRIVE SHAFT DIMENSION | 3 1/4" |
| DRIVE SHAFT LENGTH | 5 1/2" |
| BRAKE SHAFT DIAMETER | N/A |
| BRAKE SHAFT LENGTH | N/A |
| SHAFT HEIGHT | 12 1/2" |
| MOTOR LENGTH | 54" |
| WIDTH BETWEEN FEET | 13" |
| LENGTH BETWEEN FEET | 25" |
