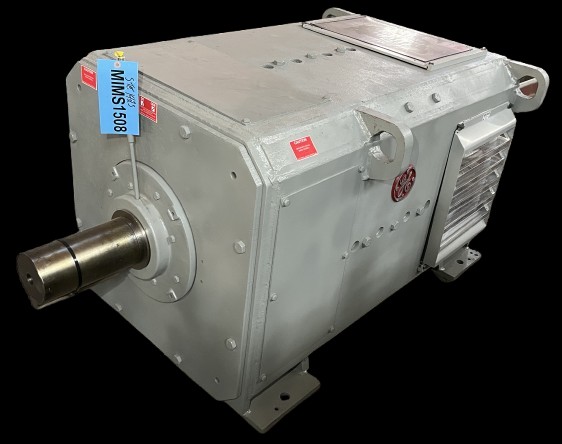

400 HP, 850/1500 RPM, 500 VOLT GENERAL ELECTRIC, SHUNT, CD4460, DC MOTOR
 "12369500000 400 HP, 850/1500 RPM, 500 VOLT GENERAL ELECTRIC, SHUNT, CD4460, DC MOTOR")
 "12369500000 400 HP, 850/1500 RPM, 500 VOLT GENERAL ELECTRIC, SHUNT, CD4460, DC MOTOR")
| INVENTORY ID | 12369500000 |
| TITLE | 400 HP, 850/1500 RPM, 500 VOLT GENERAL ELECTRIC, SHUNT, CD4460, DC MOTOR |
| HORSEPOWER | 400 |
| SPEED | 850 |
| SPEED 2 | 1500 |
| VOLTAGE | 500 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | CD4460 |
| WINDING | SHUNT |
| ENCLOSURE | SPFG-SV |
| SHAFT | SESS |
| AMPERAGE | 635 |
| DUTY | CONT |
| BEARINGS | A/F |
| FIELD VOLTAGE | 300 / 150 |
| FIELD AMPERAGE | 12.5 / 7.0 |
| FIELD RESISTANCE | 16.5 @25 DEGREE CELCIUS |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | OB-2-8 OB |
| MODEL NUMBER OR STYLE NUMBER | 5CD444KA802C802 |
| SERVICE FACTOR | 1.15 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | C |
| WEIGHT | 7,500 |
| DRIVE SHAFT DIMENSION | 5 3/8" |
| DRIVE SHAFT LENGTH | 10 1/2" |
| BRAKE SHAFT DIAMETER | N/A |
| BRAKE SHAFT LENGTH | N/A |
| SHAFT HEIGHT | 17 1/2" |
| MOTOR LENGTH | 71" |
| WIDTH BETWEEN FEET | 35" |
| LENGTH BETWEEN FEET | 42" |
