| INVENTORY ID | 12369400000 |

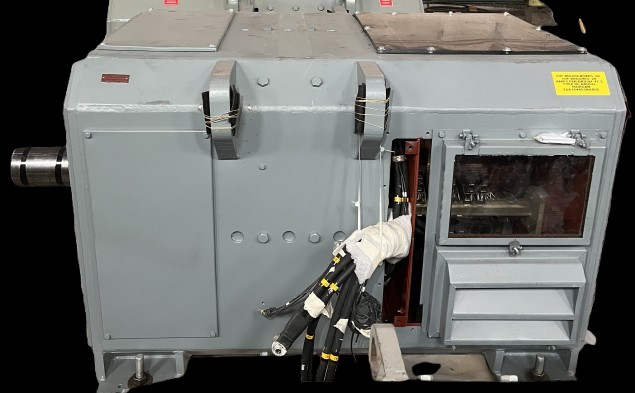

| TITLE | 600 HP, 850/1300 RPM, 500 VOLT GENERAL ELECTRIC, SHUNT, CD6268, DC MOTOR |
| HORSEPOWER | 900 |
| SPEED | 850 |
| SPEED 2 | 1300 |
| VOLTAGE | 500 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | CD6268 |
| WINDING | SHUNT |
| ENCLOSURE | SPFG-SV |
| SHAFT | SESS |
| AMPERAGE | 950 |
| DUTY | CONT |
| BEARINGS | A/F |
| FIELD VOLTAGE | 240 |
| FIELD AMPERAGE | 21.4 / 12.6 |
| FIELD RESISTANCE | 7.3 @25 DEGREE CELCIUS |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | AB-4-4 |
| MODEL NUMBER OR STYLE NUMBER | WRD20240401-01 |
| SERVICE FACTOR | 1.15 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | C |
| WEIGHT | 10,400 |
| DRIVE SHAFT DIMENSION | 6" |
| DRIVE SHAFT LENGTH | 12" |
| BRAKE SHAFT DIAMETER | N/A |
| BRAKE SHAFT LENGTH | N/A |
| SHAFT HEIGHT | 21" |
| MOTOR LENGTH | 78" |
| WIDTH BETWEEN FEET | 42" |
| LENGTH BETWEEN FEET | 50" |
