| INVENTORY ID | 12369300000 |

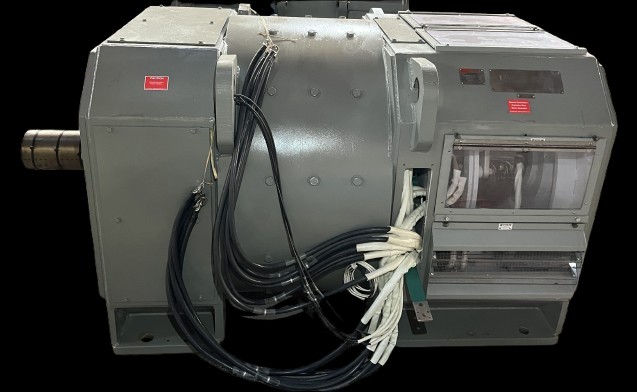

| TITLE | 900 HP, 850/1000 RPM, 500 VOLT GENERAL ELECTRIC, SHUNT, CD6778, DC MOTOR |
| HORSEPOWER | 900 |
| SPEED | 850 |
| SPEED 2 | 1000 |
| VOLTAGE | 500 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | CD6778 |
| WINDING | SHUNT |
| ENCLOSURE | SPFG-SV |
| SHAFT | SESS |
| AMPERAGE | 1415 |
| DUTY | CONT |
| BEARINGS | A/F |
| FIELD VOLTAGE | 240 / 120 |
| FIELD AMPERAGE | 26.6 / 2.8 |
| FIELD RESISTANCE | 6.23 @25 DEGREE CELCIUS |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | YH-2-66 ZH |
| MODEL NUMBER OR STYLE NUMBER | 5CD675PA003A002 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | C |
| WEIGHT | 15,600 |
| DRIVE SHAFT DIMENSION | 6 3/4" |
| DRIVE SHAFT LENGTH | 13 1/2" |
| BRAKE SHAFT DIAMETER | N/A |
| BRAKE SHAFT LENGTH | N/A |
| SHAFT HEIGHT | 23 1/2" |
| MOTOR LENGTH | 91" |
| WIDTH BETWEEN FEET | 42" |
| LENGTH BETWEEN FEET | 60" |
