| INVENTORY ID | 12369000000 |

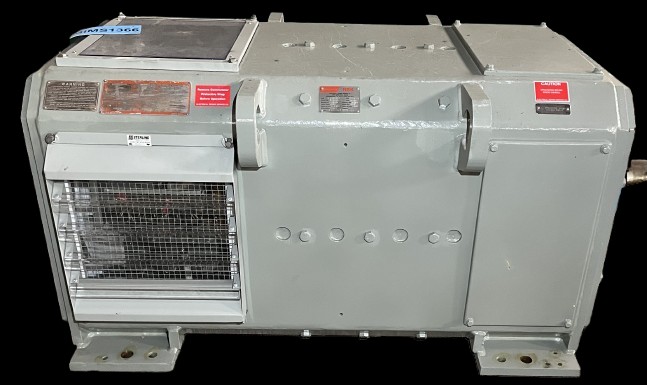

| TITLE | 300 HP, 800/1700 RPM, 500 VOLT GENERAL ELECTRIC, SHUNT, CD6058, DC MOTOR |
| HORSEPOWER | 300 |
| SPEED | 850 |
| SPEED 2 | 1700 |
| VOLTAGE | 500 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | CD6058 |
| WINDING | SHUNT |
| ENCLOSURE | SPFG-SV |
| SHAFT | SESS |
| AMPERAGE | 480 |
| DUTY | CONT |
| BEARINGS | A/F |
| FIELD VOLTAGE | 300 |
| FIELD AMPERAGE | 8.26 / 3.69 |
| FIELD RESISTANCE | 27.3 @25 DEGREE CELCIUS |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | EG-4-3 |
| MODEL NUMBER OR STYLE NUMBER | 5CD604HA006C001 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | C |
| WEIGHT | 5,300 |
| DRIVE SHAFT DIMENSION | 5 1/2" |
| DRIVE SHAFT LENGTH | 8 3/4" |
| BRAKE SHAFT DIAMETER | N/A |
| BRAKE SHAFT LENGTH | N/A |
| SHAFT HEIGHT | 15" |
| MOTOR LENGTH | 67" |
| WIDTH BETWEEN FEET | 30" |
| LENGTH BETWEEN FEET | 40" |
