| INVENTORY ID | 12368900000 |

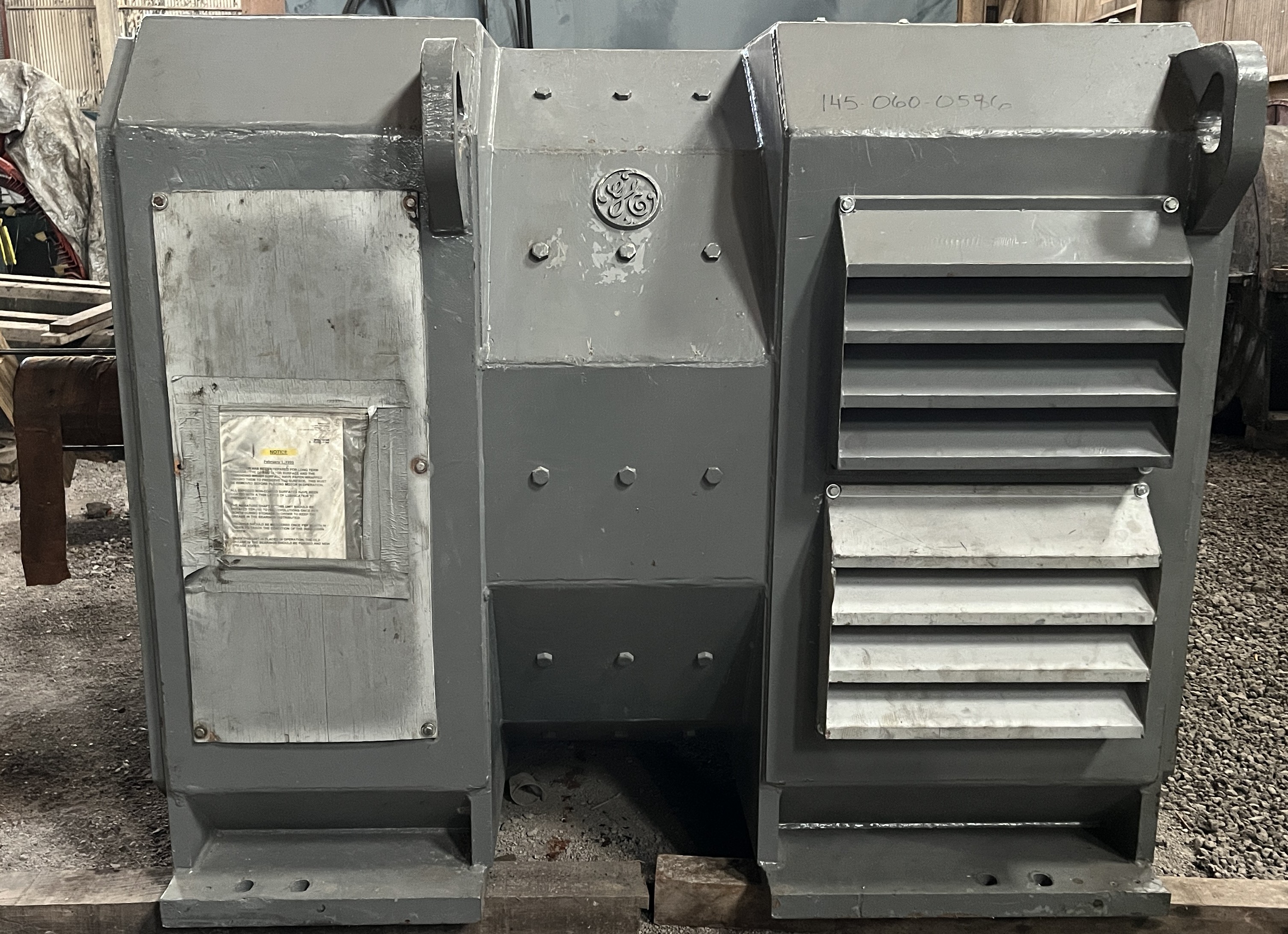

| TITLE | 600 HP, 200/1000 RPM, 500 VOLT GENERAL ELECTRIC, SHUNT, CD4780, DC MOTOR |
| HORSEPOWER | 600 |
| SPEED | 200 |
| SPEED 2 | 1000 |
| VOLTAGE | 500 |

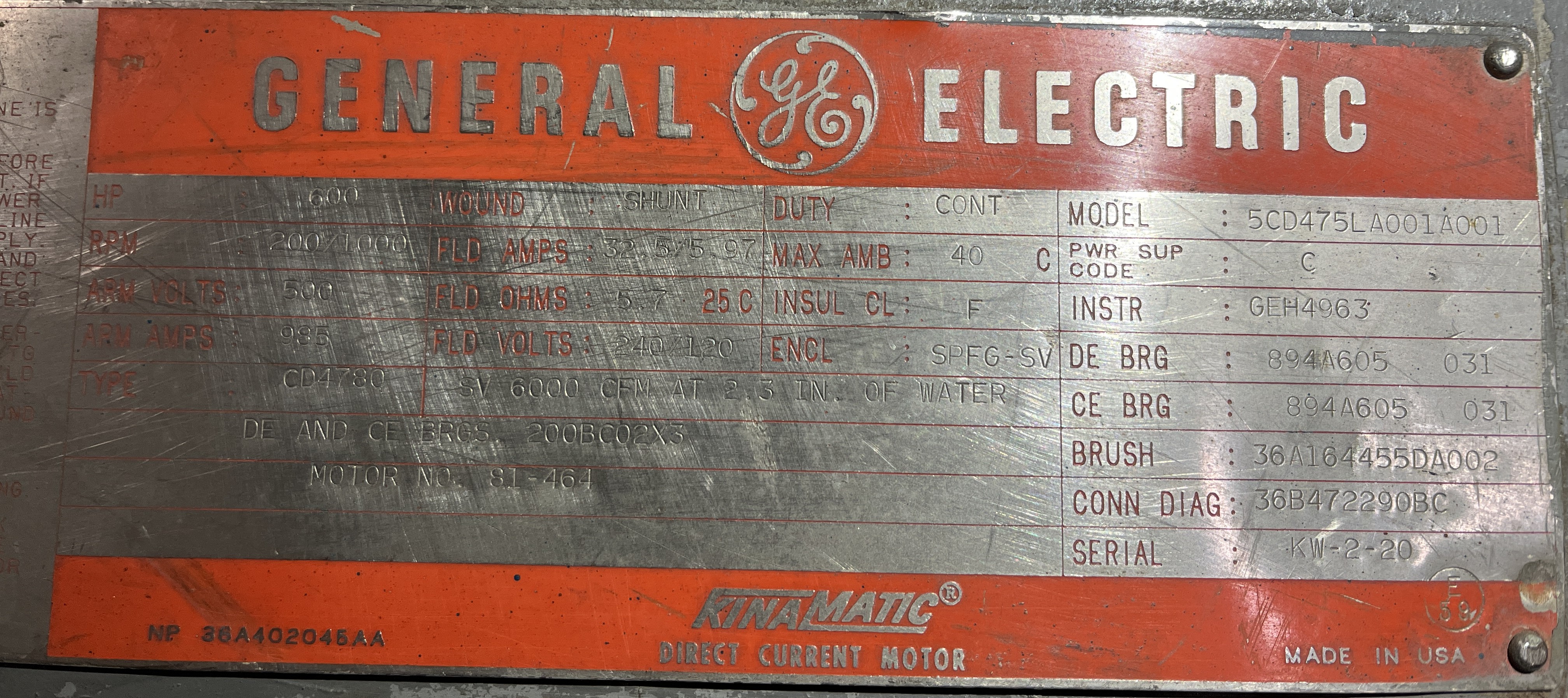

| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | CD4780 |
| WINDING | SHUNT |
| ENCLOSURE | SPFG-SV |
| SHAFT | SESS |
| AMPERAGE | 985 |
| DUTY | CONT |
| BEARINGS | A/F |
| FIELD VOLTAGE | 240 / 120 |
| FIELD AMPERAGE | 32.5 / 5.97 |
| FIELD RESISTANCE | 5.7 OHM @ 25 DEGREE CELCIUS |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | KW-2-20 |
| MODEL NUMBER OR STYLE NUMBER | 5CD475LA001A001 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | C |
| WEIGHT | 23,500 |
| DRIVE SHAFT DIMENSION | 7 3/4" |
| DRIVE SHAFT LENGTH | 15 1/2" |
| BRAKE SHAFT DIAMETER | N/A |
| BRAKE SHAFT LENGTH | N/A |
| SHAFT HEIGHT | 32 1/2" |
| MOTOR LENGTH | 96" |
| WIDTH BETWEEN FEET | 61 1/2" |
| LENGTH BETWEEN FEET | 50" |
