| INVENTORY ID | 12368800000 |

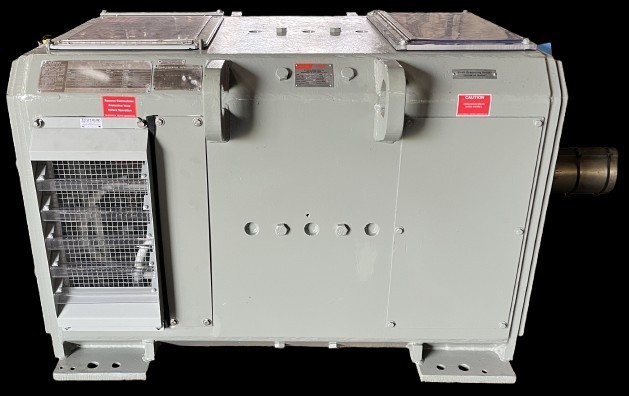

| TITLE | 400 HP, 850/11400 RPM, 500 VOLT GENERAL ELECTRIC, SHUNT, CD6157, DC MOTOR |
| HORSEPOWER | 500 |
| SPEED | 850 |
| SPEED 2 | 1400 |
| VOLTAGE | 500 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | CD6157 |
| WINDING | SHUNT |
| ENCLOSURE | SPFG-SV |
| SHAFT | SESS |
| AMPERAGE | 635 |
| DUTY | CONT |
| BEARINGS | A/F |
| FIELD VOLTAGE | 240 / 120 |
| FIELD AMPERAGE | 14.5 / 7.60 |
| FIELD RESISTANCE | 11.7 @ 25 DEGREE CELCIUS |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | YH-2-51 ZH |
| MODEL NUMBER OR STYLE NUMBER | 5CD613JA002A001 |
| SERVICE FACTOR | 1.15 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | C |
| WEIGHT | 7,300 |
| DRIVE SHAFT DIMENSION | 5 3/8" |
| DRIVE SHAFT LENGTH | 10 3/4" |
| BRAKE SHAFT DIAMETER | N/A |
| BRAKE SHAFT LENGTH | N/A |
| SHAFT HEIGHT | 17 1/4" |
| MOTOR LENGTH | 67" |
| WIDTH BETWEEN FEET | 35" |
| LENGTH BETWEEN FEET | 40" |
