| INVENTORY ID | 12368700000 |

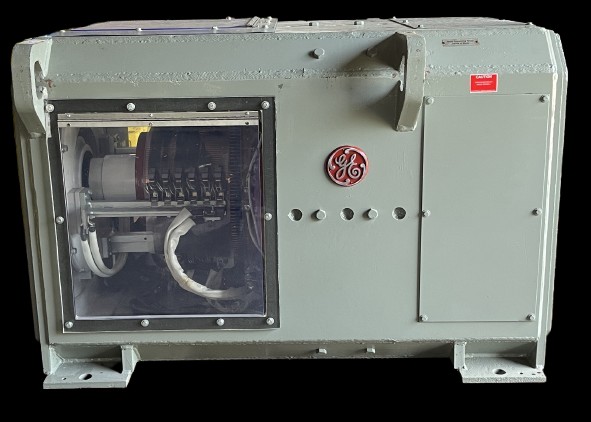

| TITLE | 500 HP, 850/1300 RPM, 500 VOLT GENERAL ELECTRIC, SHUNT, CD4568, DC MOTOR |
| HORSEPOWER | 500 |
| SPEED | 850 |
| SPEED 2 | 1300 |
| VOLTAGE | 500 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | CD4658 |
| WINDING | SHUNT |
| ENCLOSURE | SPFG-SV |
| SHAFT | SESS |
| AMPERAGE | 965 |
| DUTY | CONT |
| BEARINGS | A/F |
| FIELD VOLTAGE | 300 / 150 |
| FIELD AMPERAGE | 12.0 / 7.7 |
| FIELD RESISTANCE | 19 @ 25 DEGREE CELCIUS |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | XA-2-95 |
| MODEL NUMBER OR STYLE NUMBER | 5CD453LA802C803 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | C |
| WEIGHT | 10,400 |
| DRIVE SHAFT DIMENSION | 6" |
| DRIVE SHAFT LENGTH | 11 3/4" |
| BRAKE SHAFT DIAMETER | N/A |
| BRAKE SHAFT LENGTH | N/A |
| SHAFT HEIGHT | 21" |
| MOTOR LENGTH | 79" |
| WIDTH BETWEEN FEET | 41" |
| LENGTH BETWEEN FEET | 50" |
