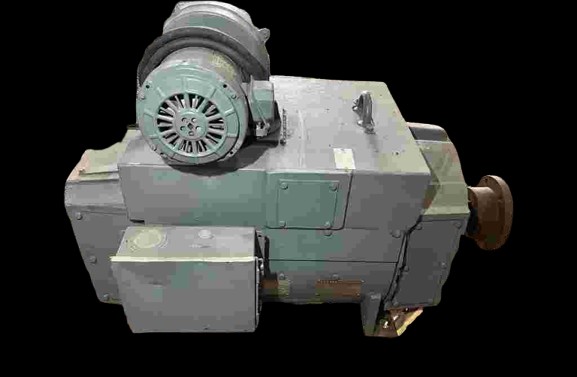

40, 650 RPM, 240 VOLT, GENERAL ELECTRIC, CD409AT, SHUNT DC MOTOR
 "12366200000 40, 650 RPM, 240 VOLT, GENERAL ELECTRIC, CD409AT, SHUNT DC MOTOR")
 "12366200000 40, 650 RPM, 240 VOLT, GENERAL ELECTRIC, CD409AT, SHUNT DC MOTOR")
| INVENTORY ID | 12366200000 |
| TITLE | 40, 650 RPM, 240 VOLT, GENERAL ELECTRIC, CD409AT, SHUNT DC MOTOR |
| HORSEPOWER | 40 |
| SPEED | 650 |
| SPEED 2 | 2550 |
| VOLTAGE | 240 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 409AT |
| WINDING | STAB SHUNT |
| ENCLOSURE | TEAO |
| SHAFT | SESS |
| AMPERAGE | 120 |
| DUTY | CONT |
| BEARINGS | A/F |
| YEAR OF MANUFACTURE | N/A |
| FIELD VOLTAGE | 120 |
| FIELD AMPERAGE | 5.88 / 1.2 |
| FIELD RESISTANCE | 14.6 |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | JJ-1-566-JJ |
| MODEL NUMBER OR STYLE NUMBER | 5CD204PA811A801 |
| SERVICE FACTOR | N/A |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | 313-460-60-1 |
| LEADS FACING DRIVE END (RIGHT , LEFT, TOP) | LEFT |
| DRIVE SHAFT DIMENSION | 2 5/8" |
| DRIVE SHAFT LENGTH | 5 1/4" |
| BRAKE SHAFT DIAMETER | N/A |
| BRAKE SHAFT LENGTH | N/A |
| SHAFT HEIGHT | 9 1/2" |
| SHAFT LENGTH | 45" |
| WIDTH BETWEEN FEET | 16" |
| LENGTH BETWEEN FEET | 21 3/4" |
