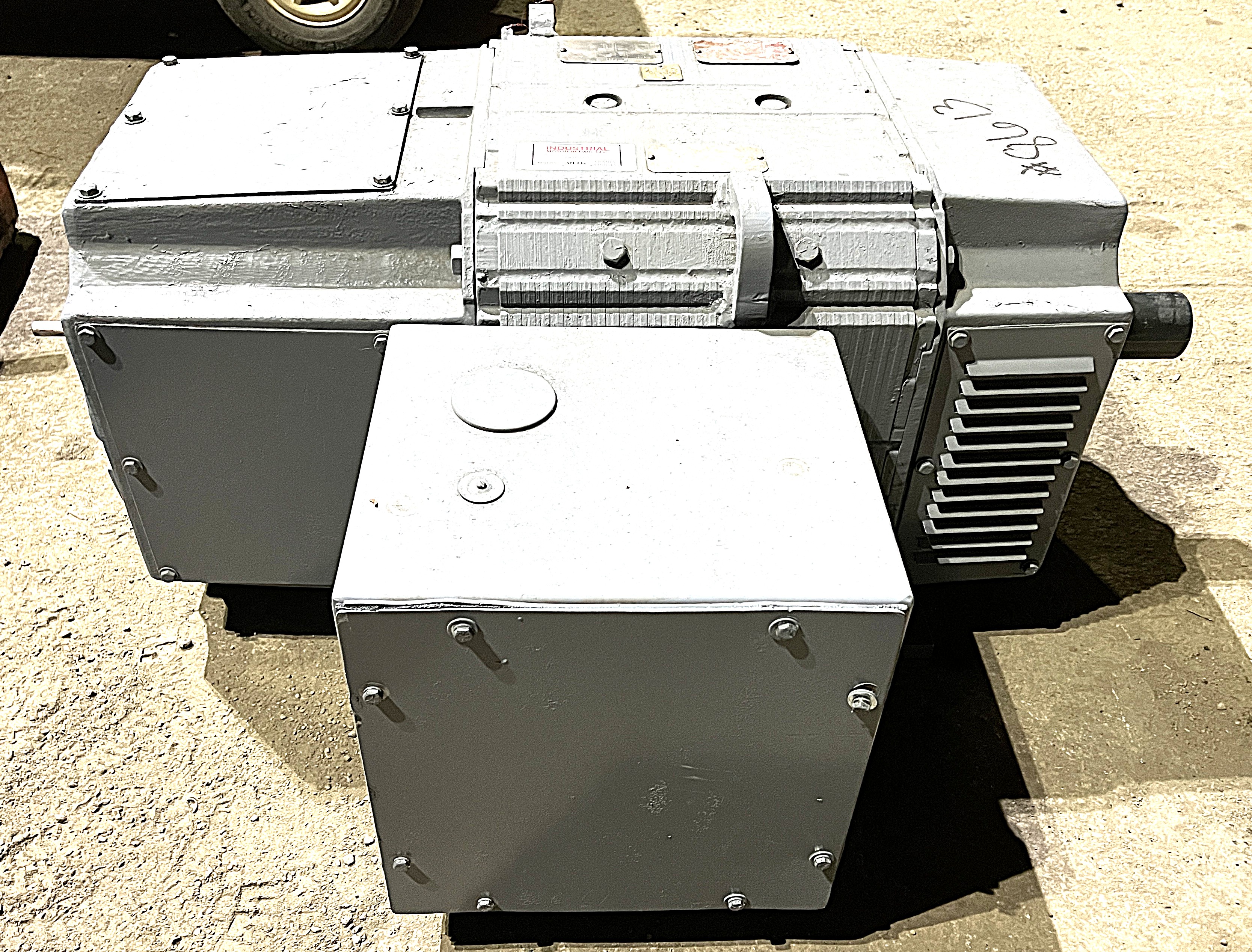

600 HP, 650/1950 RPM, 500 VOLT, RELIANCE B408ATZ, STAB SHUNT, DC MOTOR
 "12361800000 600 HP, 650/1950 RPM, 500 VOLT, RELIANCE B408ATZ, STAB SHUNT, DC MOTOR")
 "12361800000 600 HP, 650/1950 RPM, 500 VOLT, RELIANCE B408ATZ, STAB SHUNT, DC MOTOR")
| INVENTORY ID | 12361800000 |
| TITLE | 600 HP, 650/1950 RPM, 500 VOLT, RELIANCE B408ATZ, STAB SHUNT, DC MOTOR |
| HORSEPOWER | 60 |
| SPEED | 650 |
| SPEED 2 | 1950 |
| VOLTAGE | 500 |
| MANUFACTURER | RELIANCE |
| FRAME | B408ATZ |
| TYPE | TR |
| WINDING | STAB SHUNT |
| ENCLOSURE | DPFV |
| SHAFT | SESS |
| AMPERAGE | 99 |
| DUTY | CONT |
| BEARINGS | A/F |
| FIELD VOLTAGE | 300 |
| FIELD AMPERAGE | 4.43 @ 25 DEGREE CELCIUS |
| FIELD RESISTANCE | 1LA866386T3OH |
| SERVICE FACTOR | 1.0 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | C |
| WEIGHT | 1,795 |
| DRIVE SHAFT DIMENSION | 2 7/8" |
| DRIVE SHAFT LENGTH | 5 1/2" |
| BRAKE SHAFT DIAMETER | 5" TACH SHAFT |
| BRAKE SHAFT LENGTH | 3 3/4 TACH SHAFT |
| SHAFT HEIGHT | 10" |
| MOTOR LENGTH | 44" |
| WIDTH BETWEEN FEET | 16" |
| LENGTH BETWEEN FEET | 20" |
