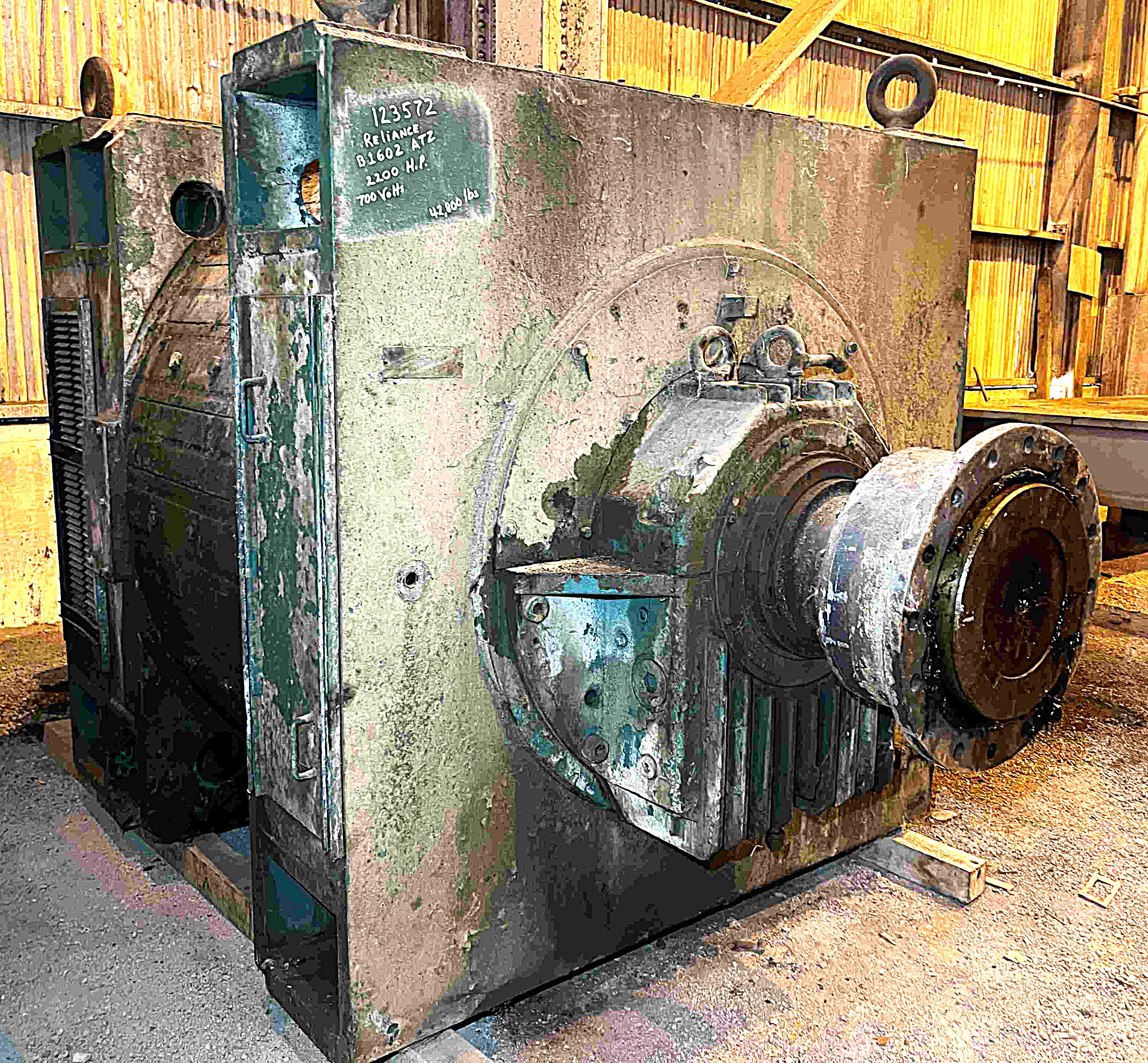

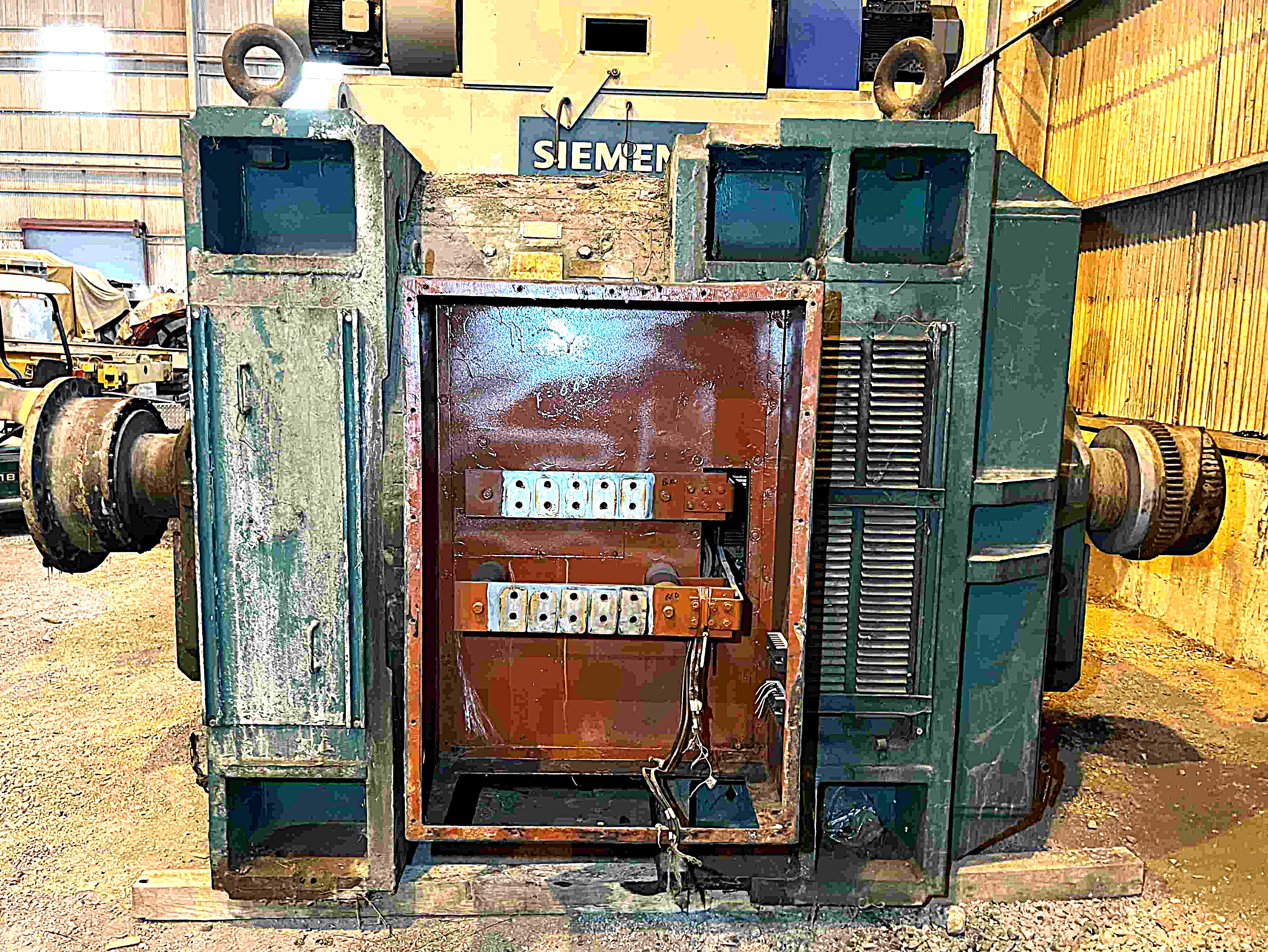

2200 HP, 650/1090 RPM, 700 VOLT, RELIANCE, B1602ATZ, COMPENSATED, USED DC MOTOR
 "12357200000 2200 HP, 650/1090 RPM, 700 VOLT, RELIANCE, B1602ATZ, COMPENSATED, USED DC MOTOR")
 "12357200000 2200 HP, 650/1090 RPM, 700 VOLT, RELIANCE, B1602ATZ, COMPENSATED, USED DC MOTOR")
 "12357200000 2200 HP, 650/1090 RPM, 700 VOLT, RELIANCE, B1602ATZ, COMPENSATED, USED DC MOTOR")

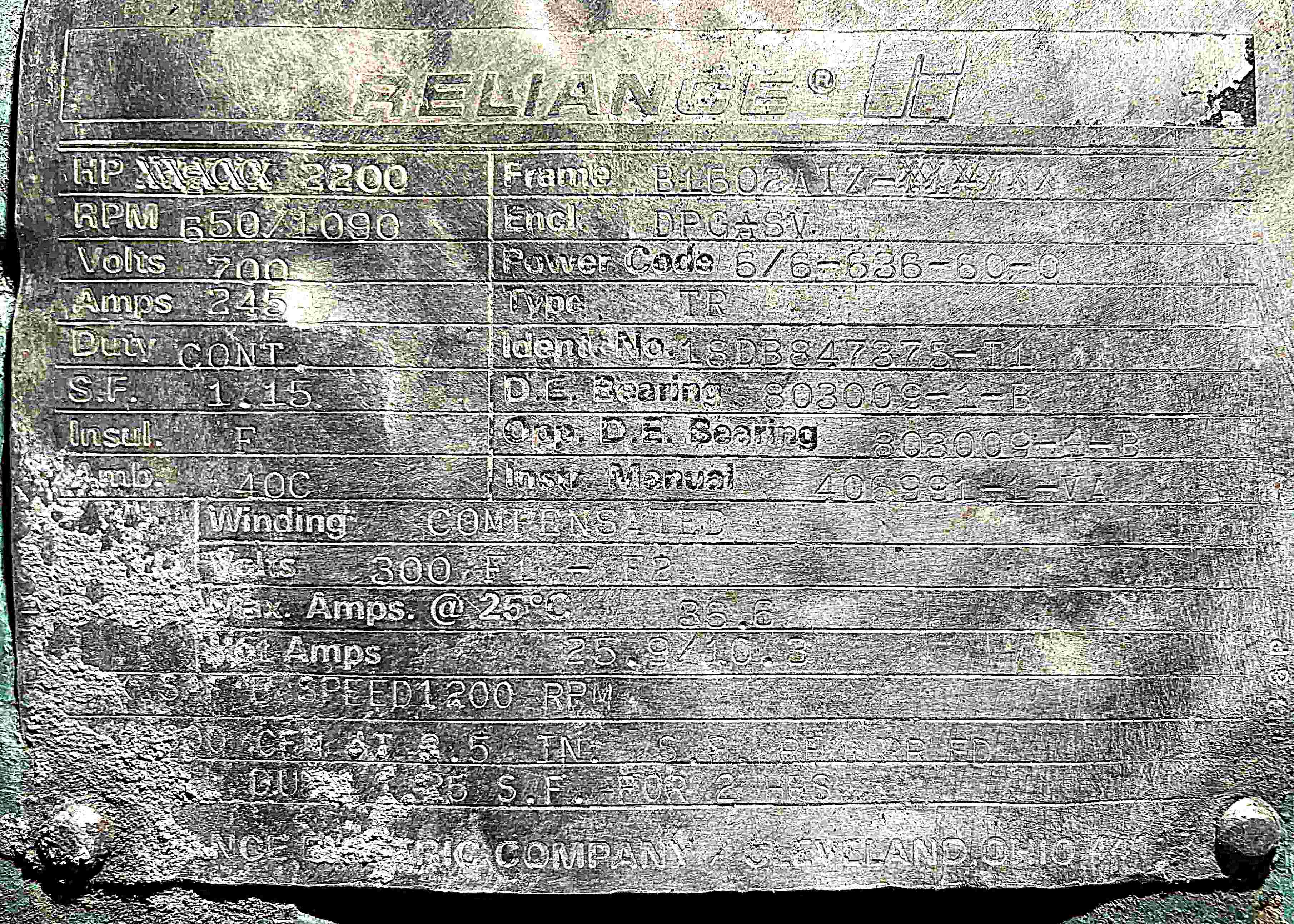

| INVENTORY ID | 12357200000 |
| TITLE | 2200 HP, 650/1090 RPM, 700 VOLT, RELIANCE, B1602ATZ, COMPENSATED, USED DC MOTOR |
| HORSEPOWER | 2200 |
| SPEED | 650 |
| SPEED 2 | 1090 |
| VOLTAGE | 700 |
| MANUFACTURER | RELIANCE |
| FRAME | B1602ATZ |
| TYPE | TR |
| WINDING | COMPENSATED |
| ENCLOSURE | DPGASV |
| SHAFT | DESS |
| AMPERAGE | 2454 |
| DUTY | CONT |
| FIELD VOLTAGE | 300 |
| FIELD AMPERAGE | 36.6 @ 25 DEGREE C |
| FIELD RESISTANCE | 9.3 |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | 18DB847375-T1 |
| SERVICE FACTOR | 1.15 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | 6/6-636-60-0 |
| WEIGHT | 42,000 |
| DRIVE SHAFT DIMENSION | 9 7/8" |
| DRIVE SHAFT LENGTH | 14 1/2" |
| BRAKE SHAFT DIAMETER | 9 7/8" |
| BRAKE SHAFT LENGTH | 14 1/2" |
| SHAFT HEIGHT | 41 1/2" |
| MOTOR LENGTH | 136" |
| WIDTH BETWEEN FEET | 59" |
| LENGTH BETWEEN FEET | 57" |
