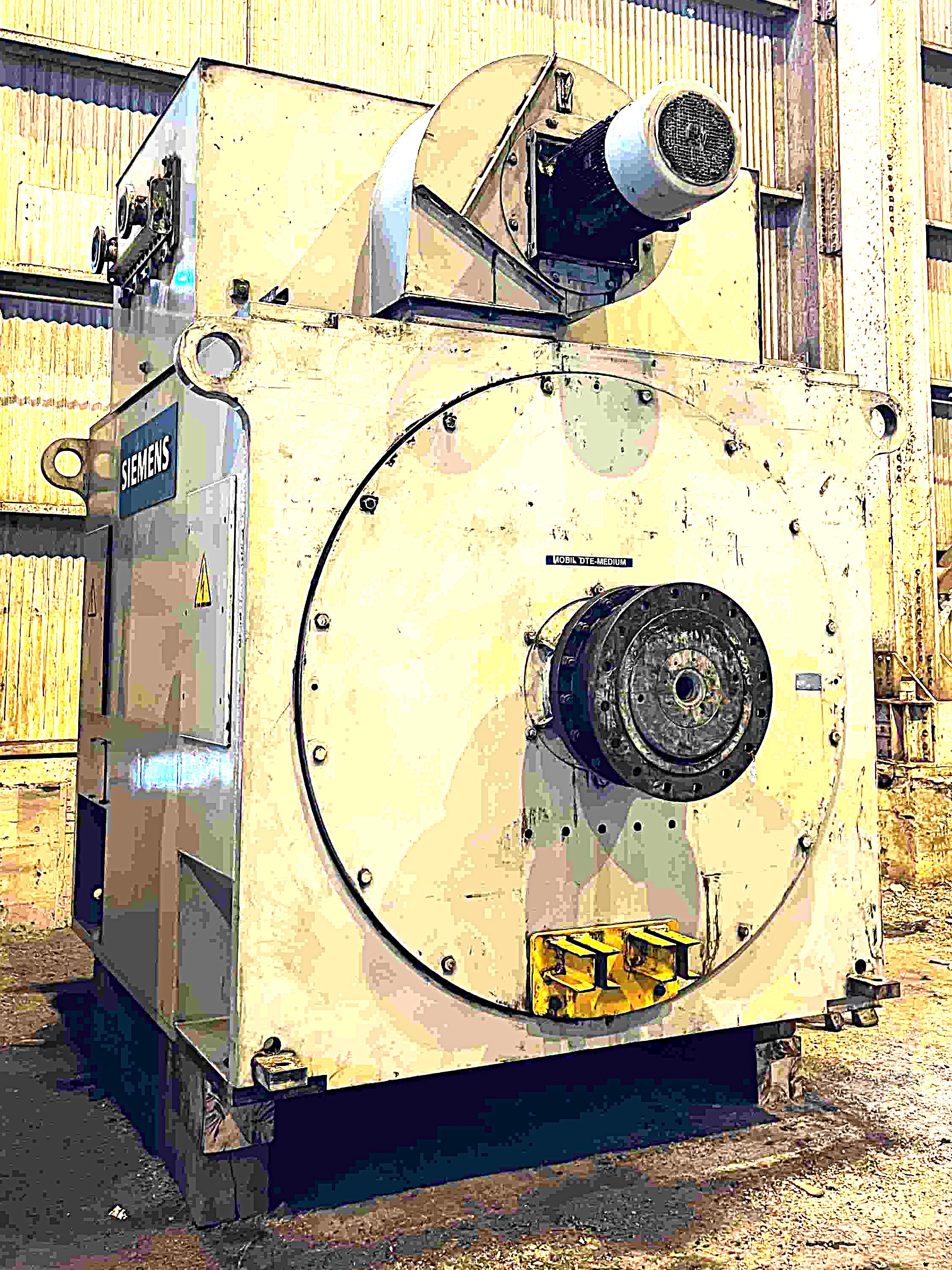

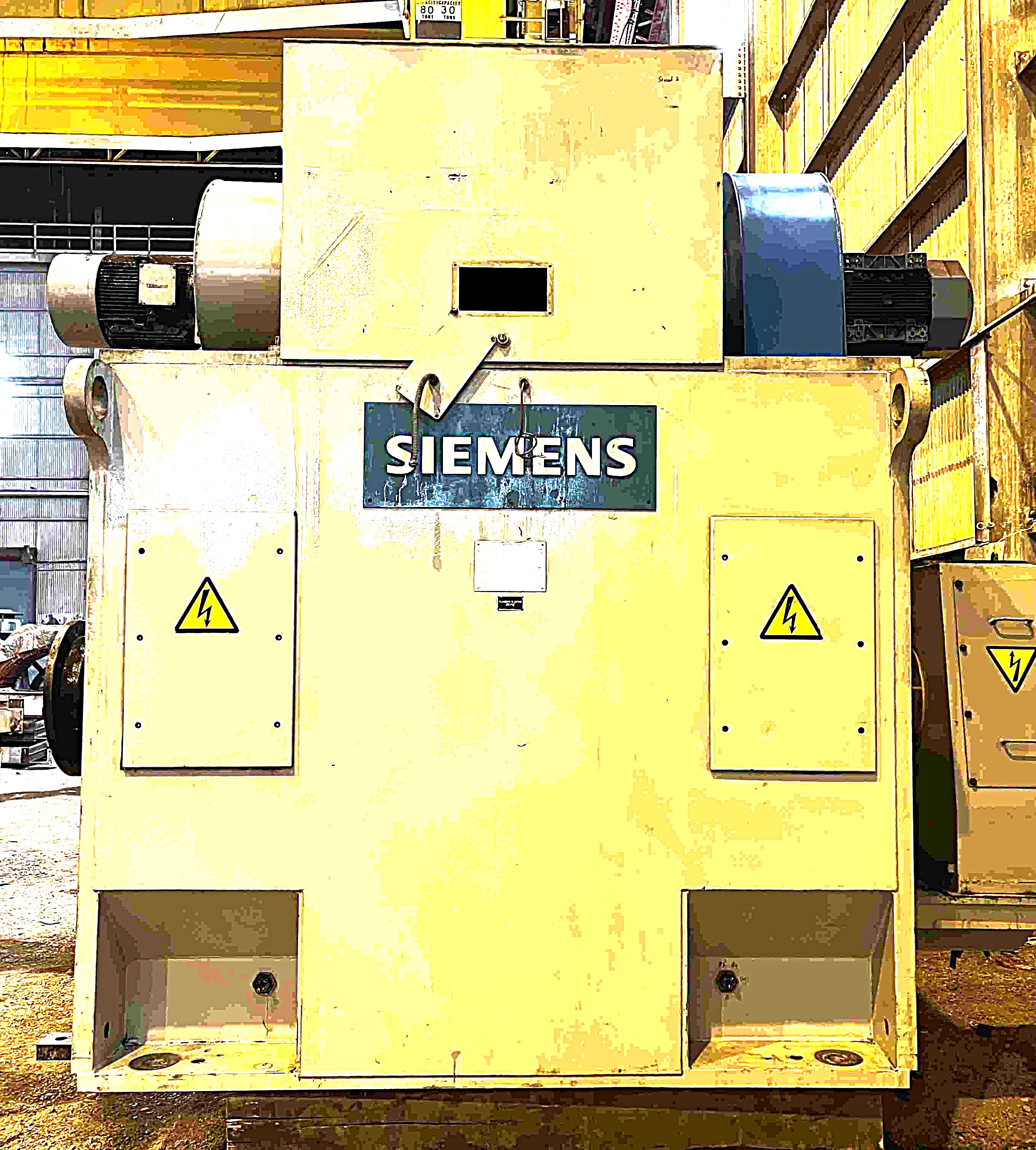

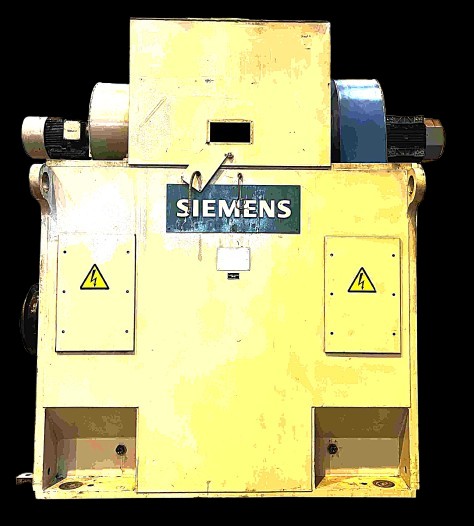

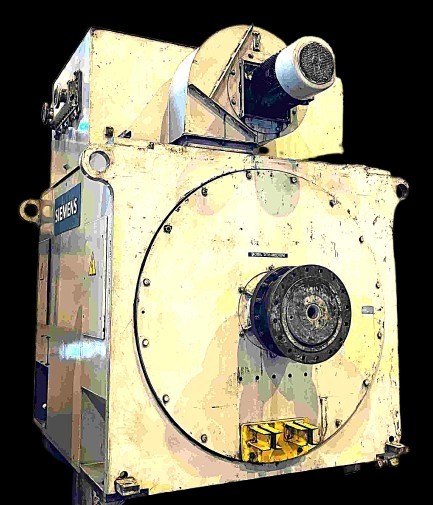

8000 HP (6000 KW), 700/1400 RPM, SIEMENS, REVERSING, ADJUSTABLE SPEED, AC SYNCHRONOUS MOTOR

(2) 8000 HP (6000 KW) 700/1400 RPM, SIEMENS REVERSING ADJUSTABLE SPEED AC MOTOR

RATED:

6000 KW, 700 RPM, 3799 VOLTS, 35 CYCLES

12,000 KW PEAK,1400 RPM, 70 CYCLES

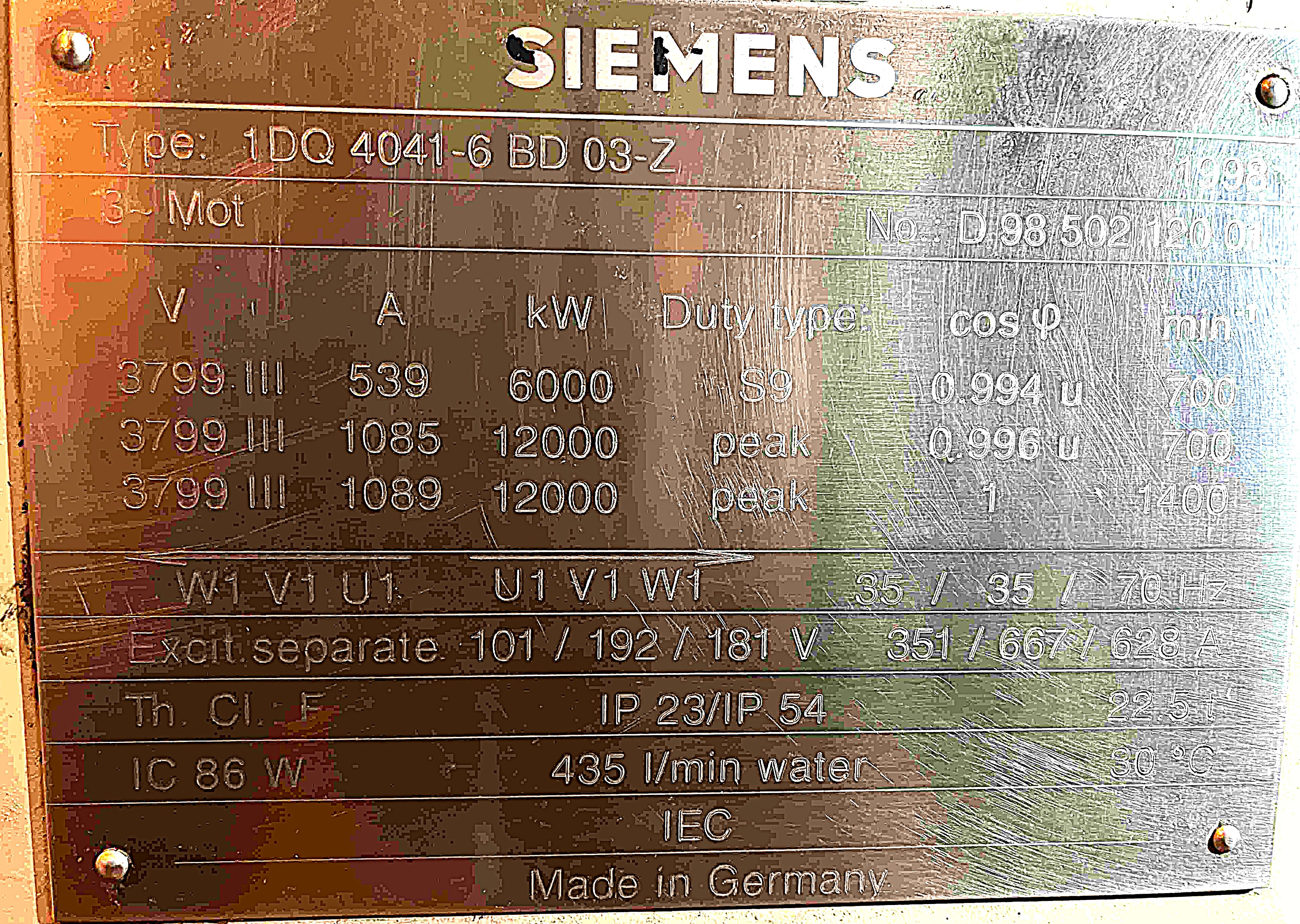

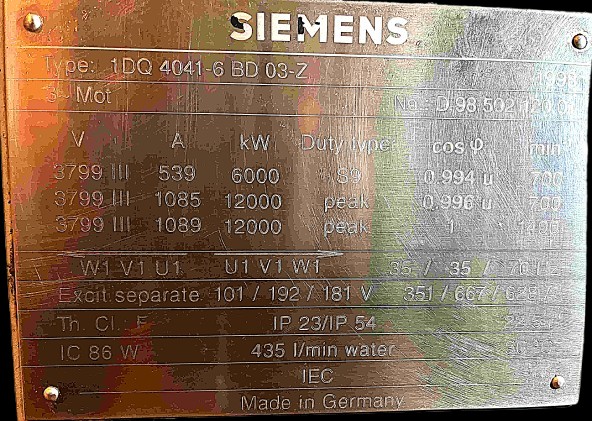

TYPE IDQ 4041 6BD03-Z

PREVIOUS APPLICATION MAIN MILL DRIVES

OVERALL HEIGHT OVER FAN AT TOP: 120.5 INCH

WIDTH : 88.6‘’

LENGTH: 144.7‘’

DESS

D DIMENSION: 41.7 ‘’

WEIGHT: 52,029 LBS (23,600 KG)

TAG# 700078-000-00

INVENTORY ID	12355600000
TITLE	8000 HP (6000 KW), 700/1400 RPM, SIEMENS, REVERSING, ADJUSTABLE SPEED, AC SYNCHRONOUS MOTOR
HORSEPOWER	8000
RPM	700/1400
VOLTAGE	3800
MANUFACTURER	SIEMENS
FRAME	1DQ4041-6 BD 03-Z
SHAFT	DESS
SHAFT HEIGHT	42"
FIELD EXCITATION AMPS	351 / 667 / 628
FIELD EXCITATION VOLTS	101 / 192 / 181
AMPERAGE	539 / 1085 / 1089
BEARINGS	SLEEVE
ENCLOSURE	WCFV
PHASE	3
HERTZ	35 / 35 / 70
DUTY	CONT.
SERIAL NUMBER OR ID NUMBER	D9850212001
WEIGHT	49,000
YEAR OF MANUFACTURE	1998
INSULATION CLASS	F
DRIVE SHAFT DIAMETER	8 1/4"
DRIVE SHAFT LENGTH	12 1/2"
BRAKE SHAFT DIAMETER	7"
BRAKE SHAFT LENGTH	15"
OVERALL LENGTH	126"
FRONT BOLT HOLE TO SHAFT	13 1/2"
WIDTH BETWEEN FEET	78 1/2"
LENGTH BETWEEN FEET	78 1/2"
