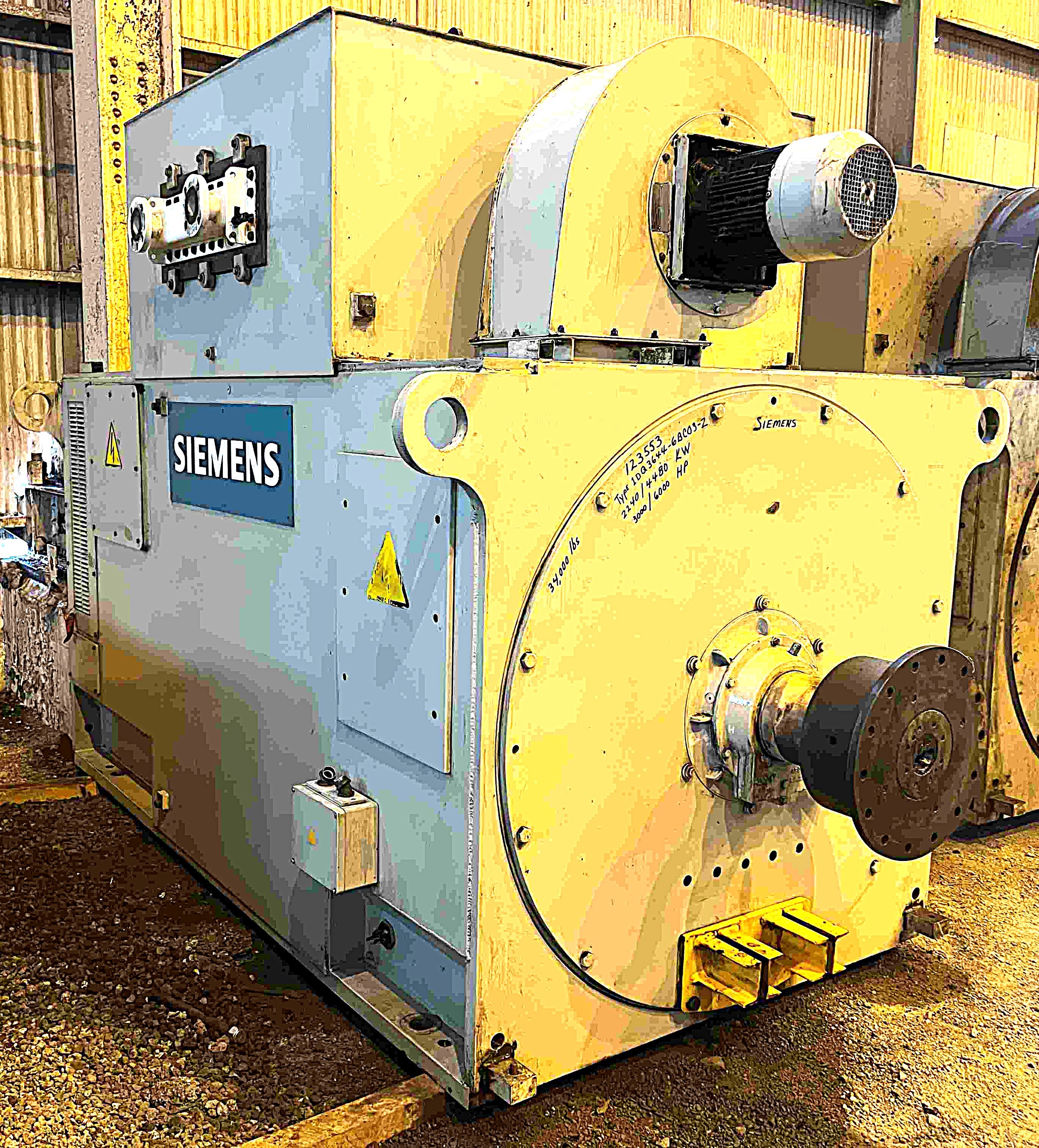

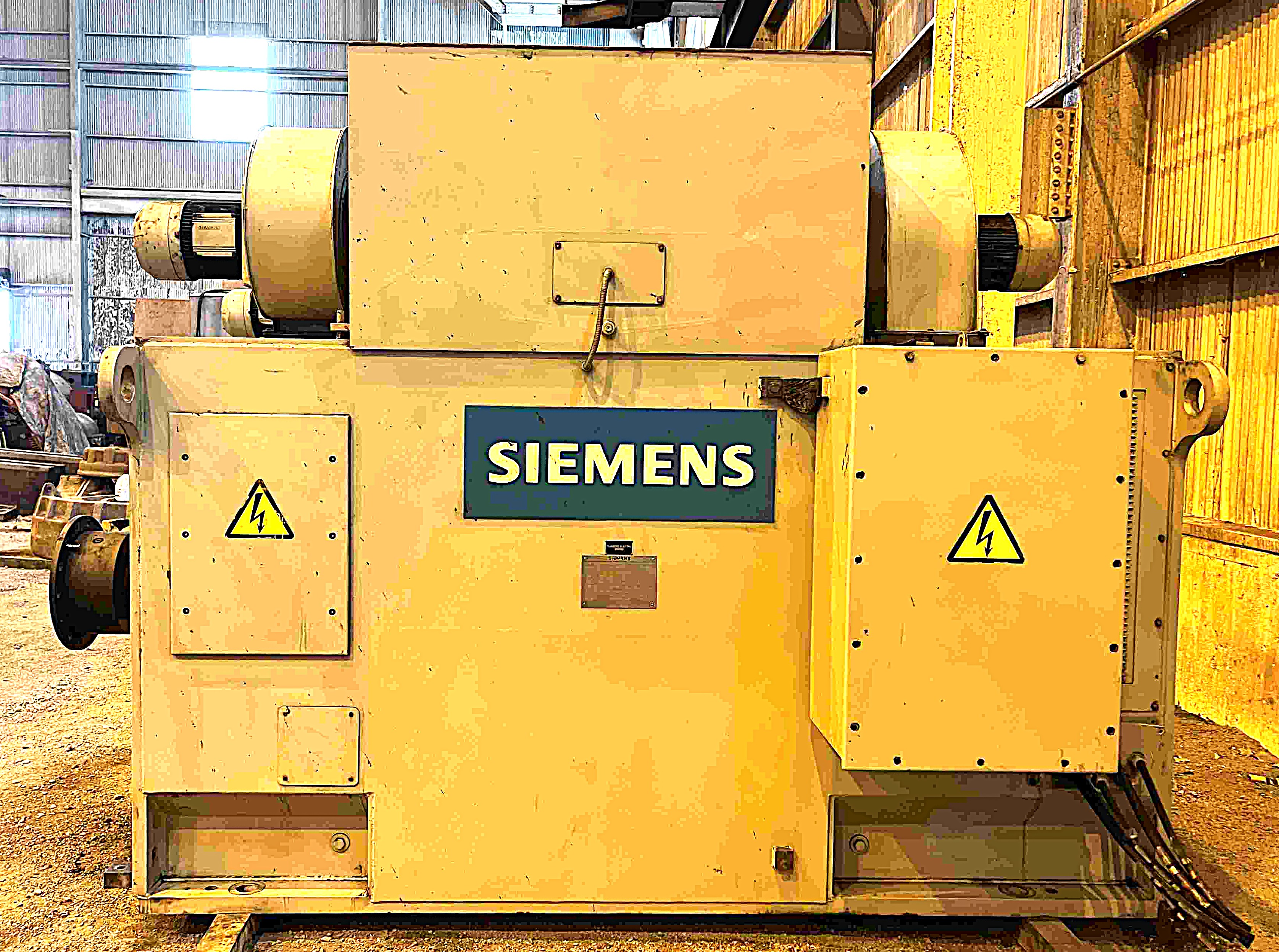

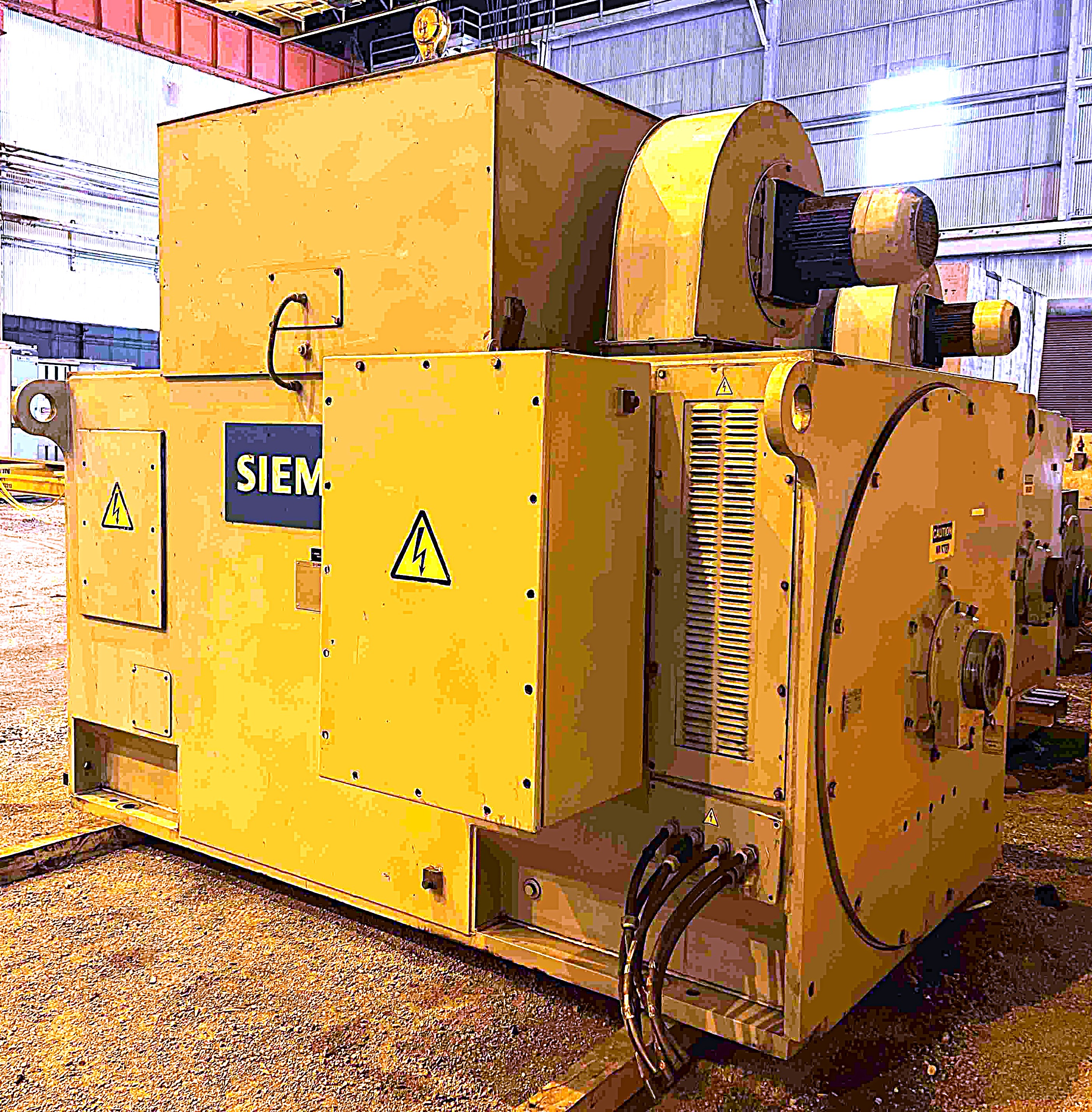

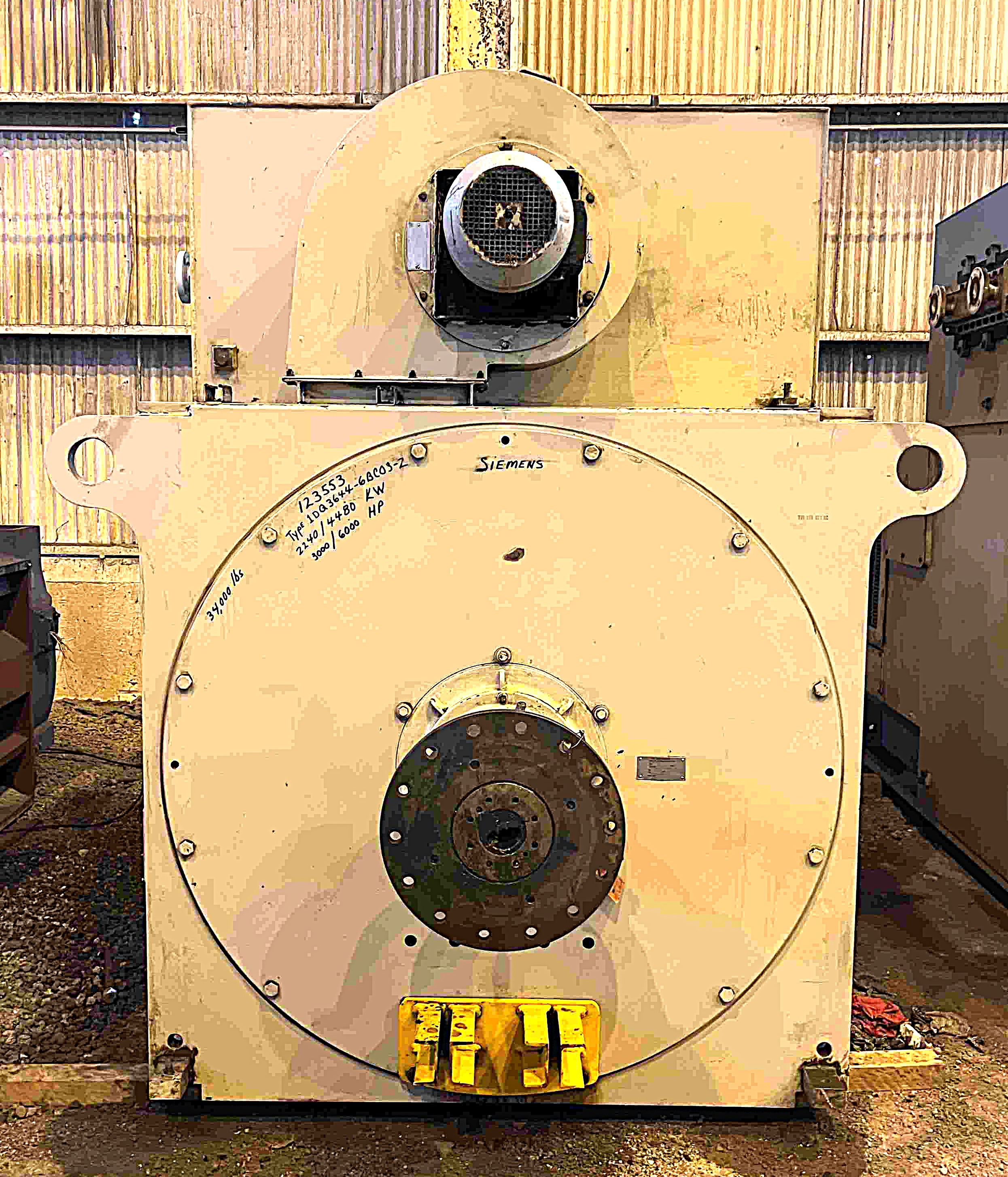

3000 HP (2240/4480 KW), 450/1500 RPM, SIEMENS, REVERSING, ADJUSTABLE SPEED, AC SYNCHRONOUS MOTOR, INVERTER DUTY MOTOR

3000 HP (2000 KW) 450/500 RPM SIEMENS REVERSING ADJUSTABLE SPEED AC MOTOR

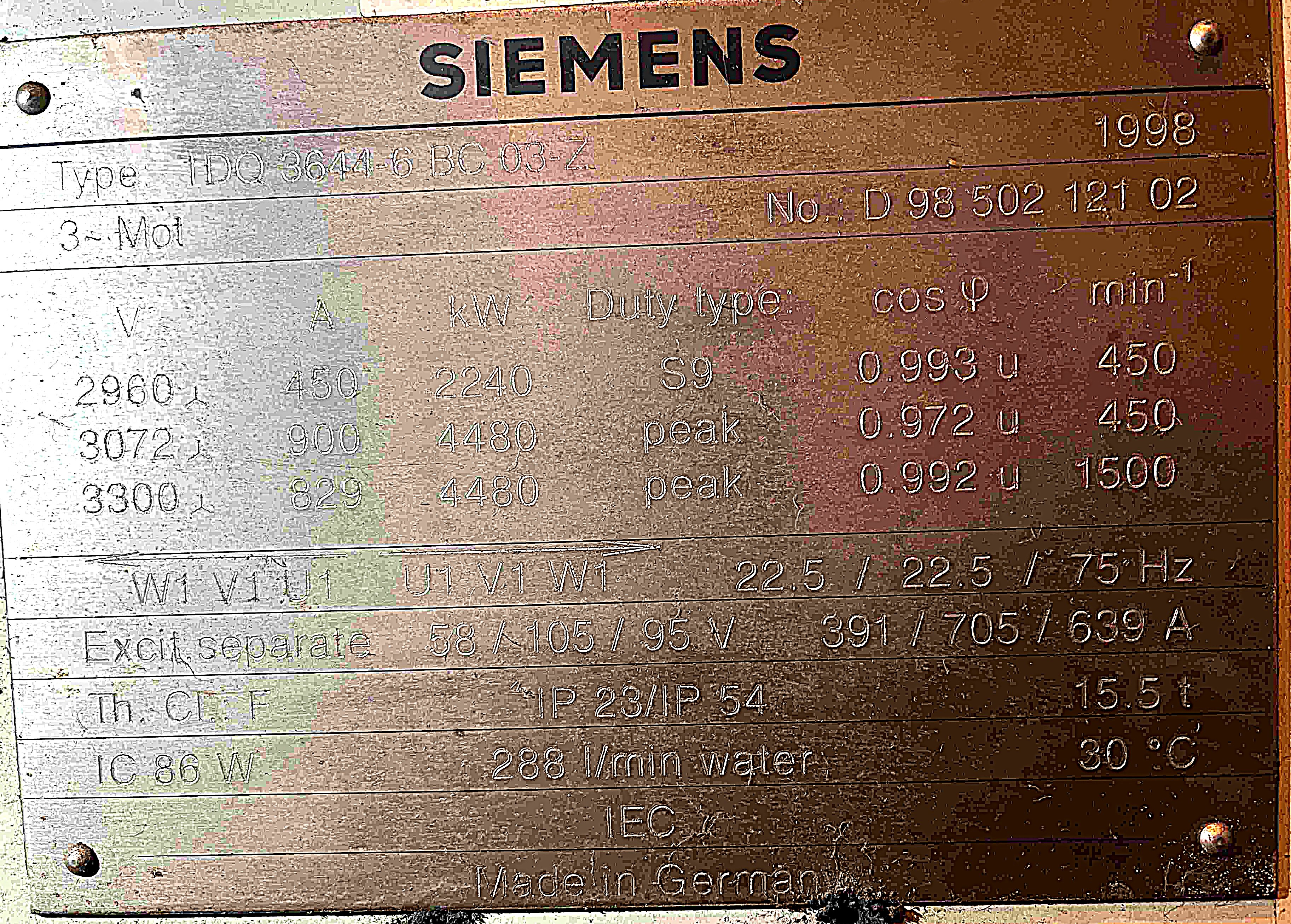

RATED:

2240 KW , 3000 HP, 450 RPM 2960 VOLTS 22.5 HZ

4480 KW 6000 HP, 1500 RPM 3300 VOLTS 75 HZ

TYPE I DQ 3644 – 6 BC03 – Z

MFG 1998

REVIOUS APPLICATION REVERSING TENSION REEL DRIVES

HEIGHT OVER TOP OF FAN: 94.5 ‘’

OVERALL LENGTH: 139.4 ‘’

OVERALL WIDTH: 63 ‘’

SHAFT DIAMETER: 7.5 ‘’

D DIMENSION: 31.5‘’

FLAT BOTTOM

WATER COOLED

TAG# 123553-000-00

INVENTORY ID	12355300100
TITLE	3000 HP (2240/4480 KW), 450/1500 RPM, SIEMENS, REVERSING, ADJUSTABLE SPEED, AC SYNCHRONOUS MOTOR, INVERTER DUTY MOTOR
HORSEPOWER	3000
SPEED	450
SPEED SYNCHRONOUS	1500
VOLTAGE	2960 / 3072 / 3300
MANUFACTURER	SIEMENS
FRAME	IDQ3644-6BC03-Z
ENCLOSURE	FVWC
SHAFT	SESS
TYPE	REVERSING
INSULATION CLASS	F
BEARINGS	A/F
PHASE	3
AMPERAGE	450 / 900 / 829
SERIAL NUMBER OR ID NUMBER	D9850212102
WEIGHT	34,000
DUTY	CONT
SHAFT HEIGHT	31 1/2"
DRIVE SHAFT DIAMETER	7 3/8"
DRIVE SHAFT LENGTH	13 3/4"
BRAKE SHAFT DIAMETER	N/A
BRAKE SHAFT LENGTH	N/A
