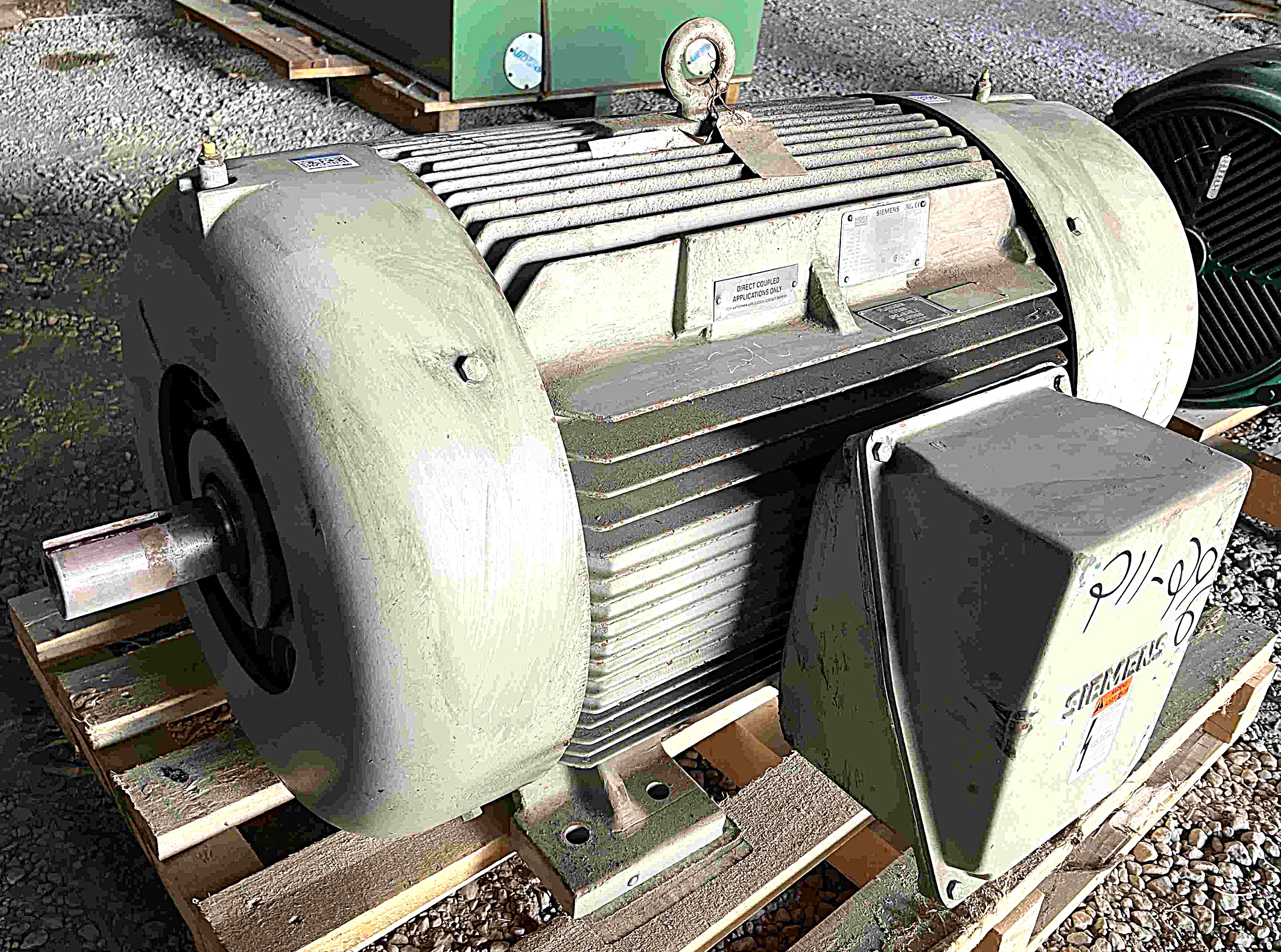

200 HP, 3575 RPM, 460 VOLT, SIEMENS, 447TS, AC INDUCTION MOTOR
 "12332000000 200 HP, 3575 RPM, 460 VOLT, SIEMENS, 447TS, AC INDUCTION MOTOR")
 "12332000000 200 HP, 3575 RPM, 460 VOLT, SIEMENS, 447TS, AC INDUCTION MOTOR")
| INVENTORY ID | 12332000000 |
| TITLE | 200 HP, 3575 RPM, 460 VOLT, SIEMENS, 447TS, AC INDUCTION MOTOR |
| HORSEPOWER | 200 |
| SPEED NAMEPLATE | 3575 |
| VOLTAGE | 460 |
| MANUFACTURER | SIEMENS |
| FRAME | 447TS |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | G |
| TYPE | SD100 |
| INSULATION CLASS | B |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 216 |
| SERIAL NUMBER OR ID NUMBER | B12T0329NPI1 |
| MODEL NUMBER OR STYLE NUMBER | 1LE23214DA312AA3 |
| WEIGHT | 1,695 |
| DUTY | CONT |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | RIGHT |
| SHAFT HEIGHT | 10 3/4" |
| DRIVE SHAFT DIAMETER | 2 3/8" |
| DRIVE SHAFT LENGTH | 4 3/4" |
| BRAKE SHAFT DIAMETER | N/A |
| BRAKE SHAFT LENGTH | N/A |
