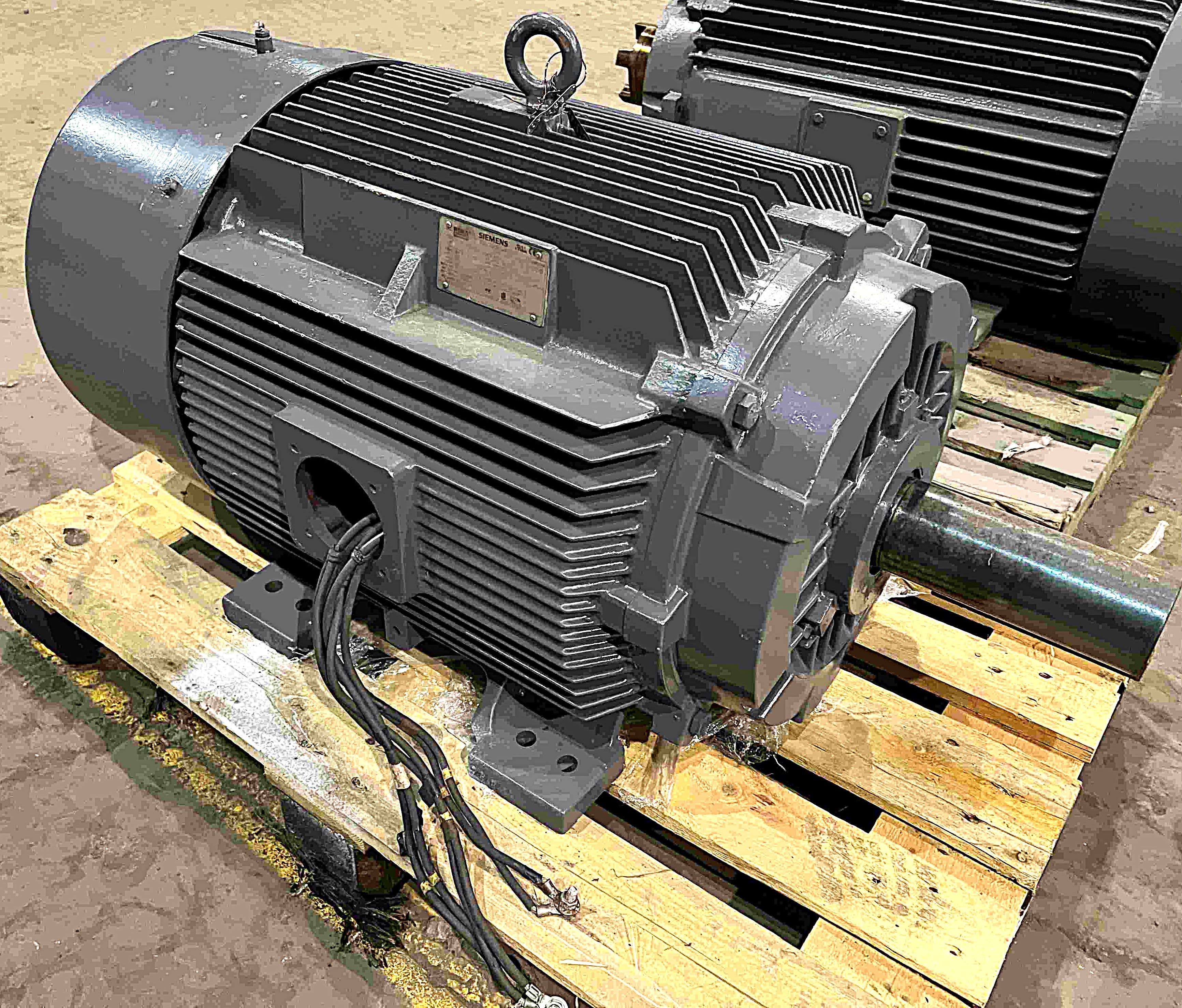

125 HP, 1785 RPM, 460 VOLT, SIEMENS, 444T, INDUCTION AC MOTOR - $4,950
 "12318300000 125 HP, 1785 RPM, 460 VOLT, SIEMENS, 444T, INDUCTION AC MOTOR - $4,950")
 "12318300000 125 HP, 1785 RPM, 460 VOLT, SIEMENS, 444T, INDUCTION AC MOTOR - $4,950")
| INVENTORY ID | 12318300000 |
| TITLE | 125 HP, 1785 RPM, 460 VOLT, SIEMENS, 444T, INDUCTION AC MOTOR - $4,950 |
| HORSEPOWER | 125 |
| SPEED NAMEPLATE | 1785 |
| VOLTAGE | 460 |
| MANUFACTURER | SIEMENS |
| FRAME | 447T |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | G |
| TYPE | SD100 |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 143 |
| SERIAL NUMBER OR ID NUMBER | Q2-K13T0339NP1 |
| MODEL NUMBER OR STYLE NUMBER | 1LE23214CB112AA3 |
| WEIGHT | 1,600 |
| DUTY | CONT |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 10 1/2" |
| DRIVE SHAFT DIAMETER | 3 3/8" |
| DRIVE SHAFT LENGTH | 8 1/2" |
| BRAKE SHAFT DIAMETER | N/A |
| BRAKE SHAFT LENGTH | N/A |
