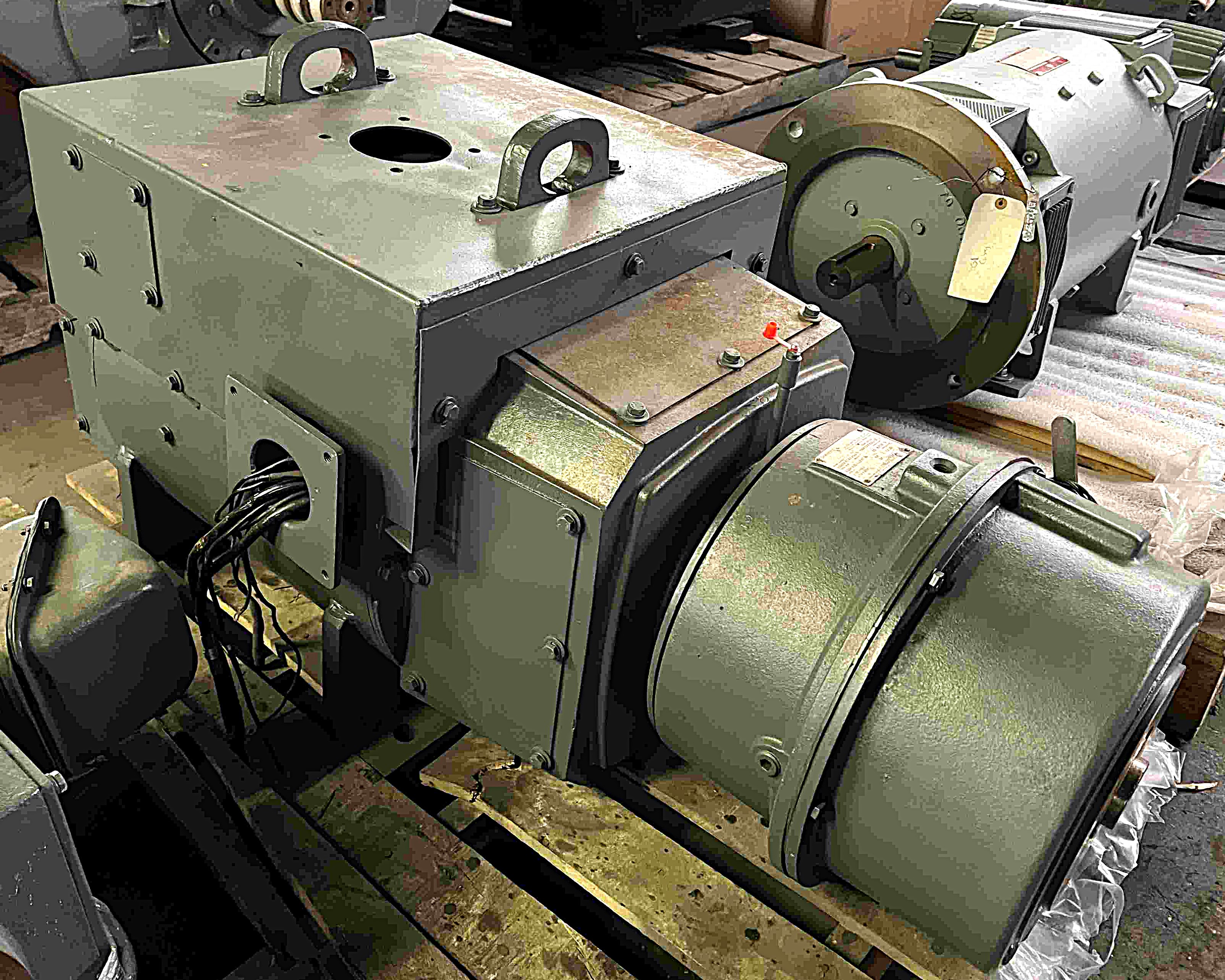

50 HP, 11950 RPM, 460 VOLT, GENERAL ELECTRIC, CD407ATY, SHUNT USED DC MOTOR
 "12318200000 50 HP, 11950 RPM, 460 VOLT, GENERAL ELECTRIC, CD407ATY, SHUNT USED DC MOTOR")
 "12318200000 50 HP, 11950 RPM, 460 VOLT, GENERAL ELECTRIC, CD407ATY, SHUNT USED DC MOTOR")
| INVENTORY ID | 12318200000 |
| TITLE | 50 HP, 11950 RPM, 460 VOLT, GENERAL ELECTRIC, CD407ATY, SHUNT USED DC MOTOR |
| HORSEPOWER | 50 |
| SPEED | 1950 |
| VOLTAGE | 460 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 407ATY |
| WINDING | SHUNT |
| ENCLOSURE | TEAO |
| SHAFT | DESS |
| AMPERAGE | 88 |
| DUTY | CONT |
| BEARINGS | A/F |
| FIELD VOLTAGE | 180 |
| FIELD AMPERAGE | 2.9 |
| FIELD RESISTANCE | 40.8 |
| DEGREE OF TEMPERATURE RISE | 65 |
| SERIAL NUMBER OR ID NUMBER | OD-1-470 OD |
| MODEL NUMBER OR STYLE NUMBER | 5CD203EA800A800 |
| INSULATION CLASS | H |
| POWER SUPPLY CODE | C |
| WEIGHT | 1,380 |
| DRIVE SHAFT DIMENSION | 2 5/8" |
| DRIVE SHAFT LENGTH | 5 1/2" |
| BRAKE SHAFT DIAMETER | HAS STEARNS BRAKE ATTACHED |
| BRAKE SHAFT LENGTH | HAS STERANS BRAKE ATTACHED |
| SHAFT HEIGHT | 10 1/2" |
| MOTOR LENGTH | 33" |
| WIDTH BETWEEN FEET | 18" |
| LENGTH BETWEEN FEET | 18 1/2" |
