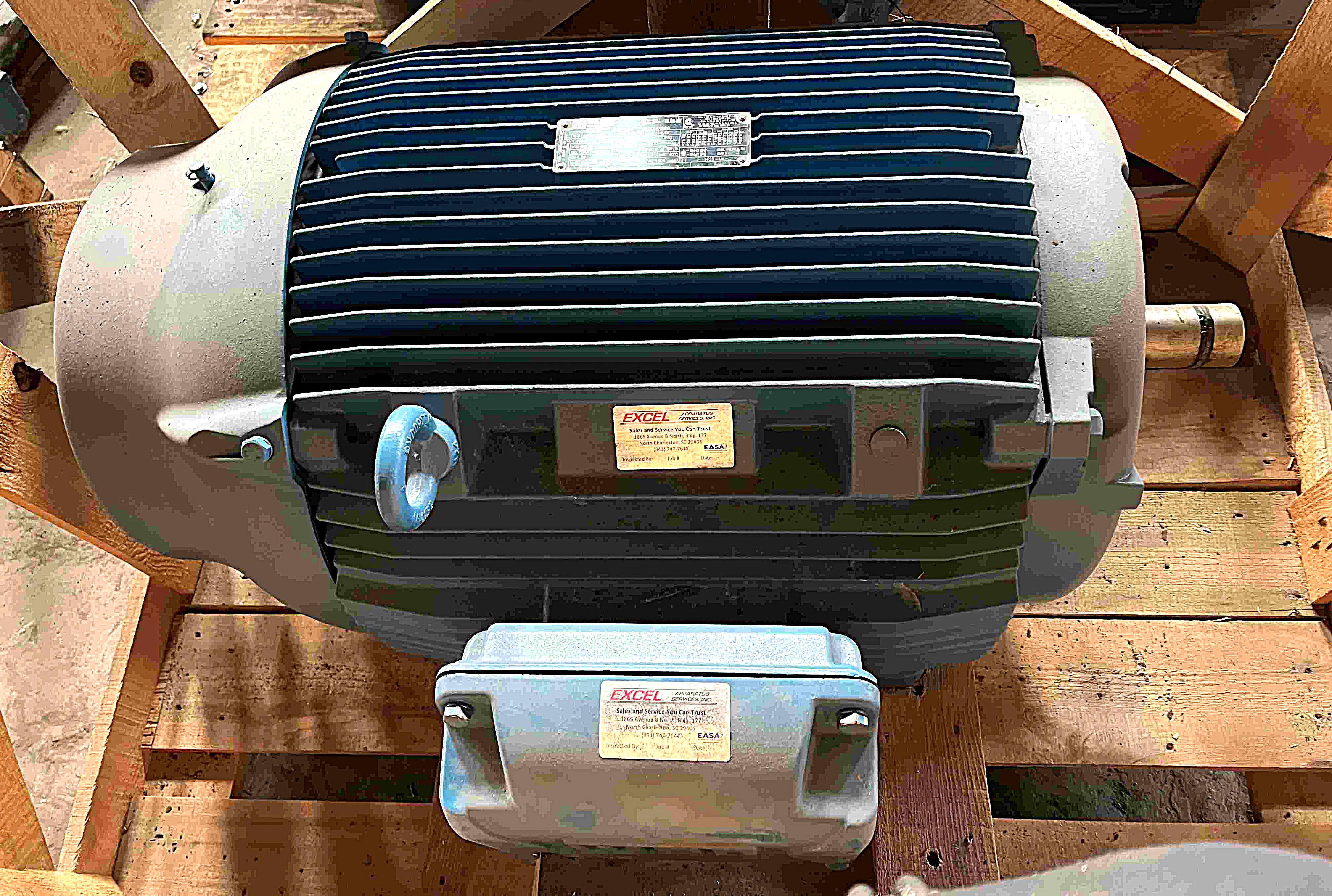

125 HP, 3570 RPM, 460 VOLT, WEG, 44415TS, AC INVERTER DUTY MOTOR
 "123172000000 125 HP, 3570 RPM, 460 VOLT, WEG, 44415TS, AC INVERTER DUTY MOTOR")
 "123172000000 125 HP, 3570 RPM, 460 VOLT, WEG, 44415TS, AC INVERTER DUTY MOTOR")
| INVENTORY ID | 123172000000 |
| TITLE | 125 HP, 3570 RPM, 460 VOLT, WEG, 44415TS, AC INVERTER DUTY MOTOR |
| HORSEPOWER | 125 |
| SPEED | 3570 |
| VOLTAGE | 460 |
| MANUFACTURER | WEG |
| FRAME | 44415TS |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | G |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 134 |
| SERIAL NUMBER OR ID NUMBER | 1045951966 |
| MODEL NUMBER OR STYLE NUMBER | 12536ET36G444TS/WZZ |
| WEIGHT | 1,625 |
| DUTY | CONT |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | RIGHT |
| SHAFT HEIGHT | 10 1/4" |
| DRIVE SHAFT DIAMETER | 2 3/8" |
| DRIVE SHAFT LENGTH | 4 5/8" |
| BRAKE SHAFT DIAMETER | N/A |
| BRAKE SHAFT LENGTH | N/A |
