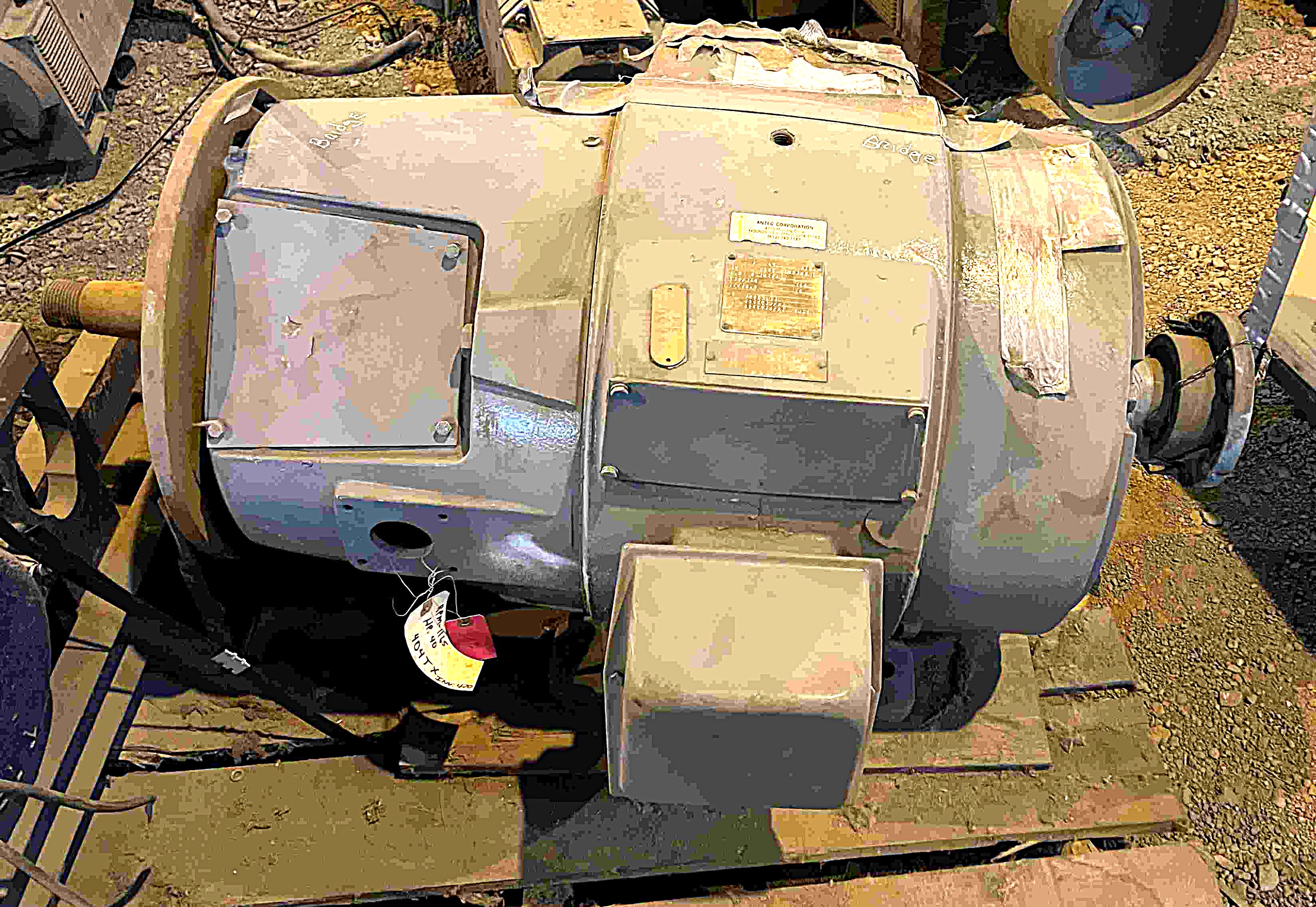

40 HP, 1165 RPM, WESTINGHOUSE, 404TX, AC SLIP RING CRANE MOTOR
 "12314700000 40 HP, 1165 RPM, WESTINGHOUSE, 404TX, AC SLIP RING CRANE MOTOR")
 "12314700000 40 HP, 1165 RPM, WESTINGHOUSE, 404TX, AC SLIP RING CRANE MOTOR")
| INVENTORY ID | 12314700000 |
| TITLE | 40 HP, 1165 RPM, WESTINGHOUSE, 404TX, AC SLIP RING CRANE MOTOR |
| HORSEPOWER | 40 |
| SPEED | 1165 |
| STATOR VOLTAGE 1 | 230 |
| STATOR VOLTAGE 2 | 460 |
| MANUFACTURER | WESTINGHOUSE |
| FRAME | 404TX |
| ROTOR AMPS | 75 |
| ROTOR VOLTS | 250 |
| SHAFT EXTENSION | 1T1S |
| ENCLOSURE | DP |
| STATOR AMPS | 97 / 48.5 |
| BEARINGS | A/F |
| MODEL NUMBER OR STYLE NUMBER | THNV |
| SERIAL NUMBER OR ID NUMBER | 7401 |
| PHASE | 3 |
| DUTY (MINUTES) | 60 |
| DEGREE OF TEMPERATURE RISE | 40 |
| WEIGHT | 860 |
| DRIVE SHAFT DIAMETER | 2 7/8" |
| DRIVE SHAFT LENGTH | 5 1/2" |
| BRAKE SHAFT DIAMETER | 2 1/4" |
| BRAKE SHAFT LENGTH | 7 1/2" |
| FRONT BOLT HOLE TO SHAFT | 12" |
