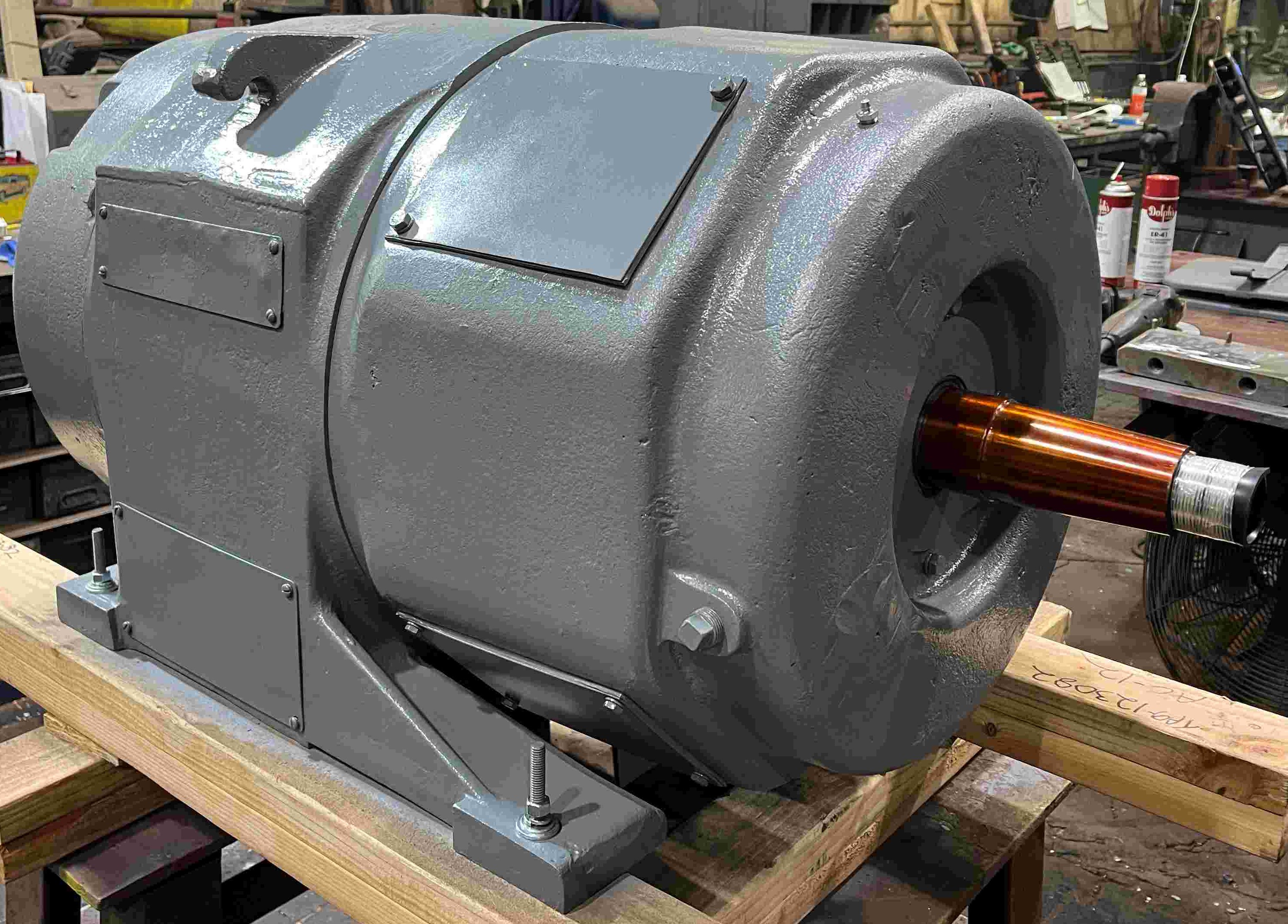

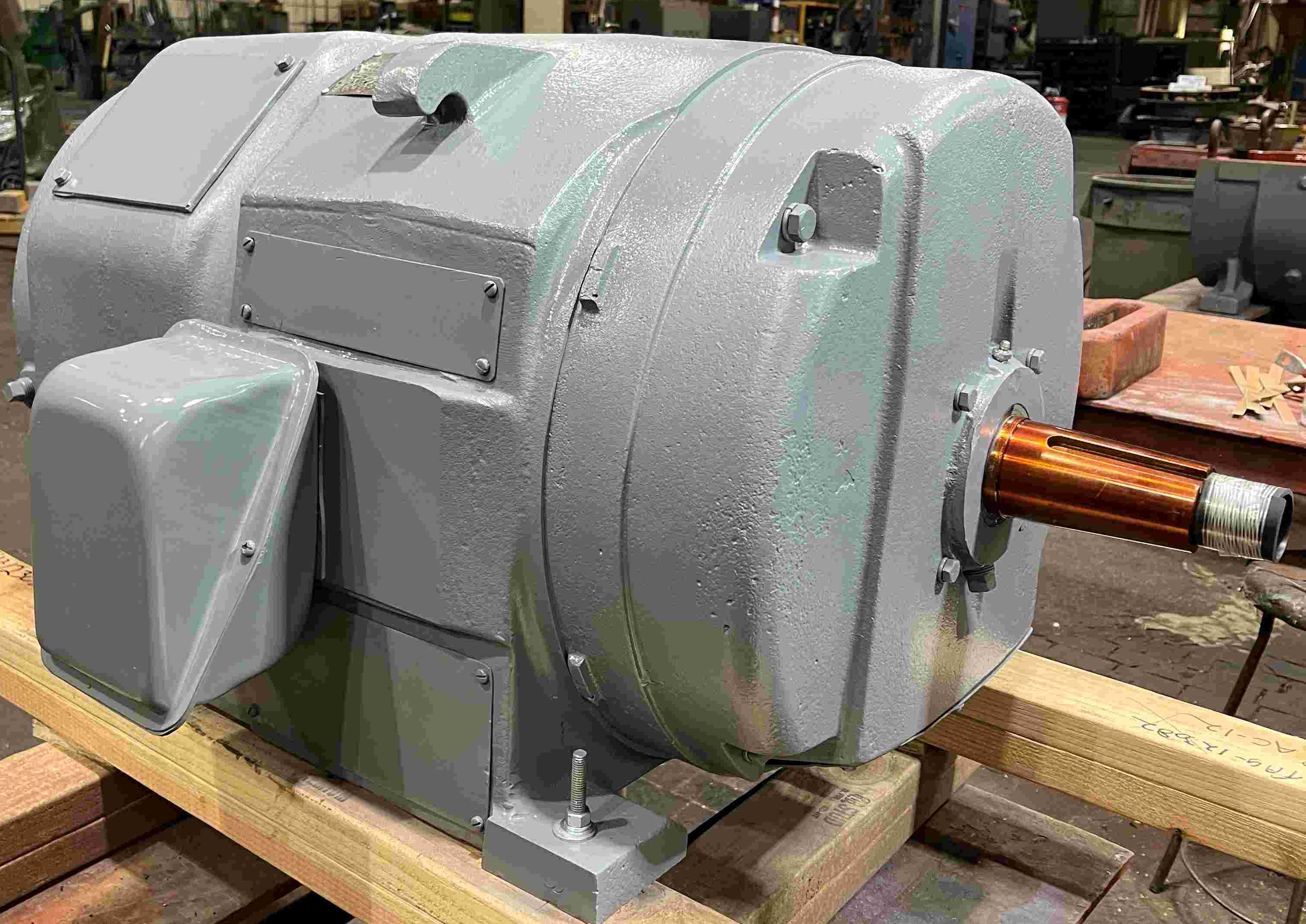

60 HP, 1160 RPM, 440 VOLT, GENERAL ELECTRIC, AC12, SLIP RING CRANE MOTOR (R)
 "12308200000 60 HP, 1160 RPM, 440 VOLT, GENERAL ELECTRIC, AC12, SLIP RING CRANE MOTOR (R)")
 "12308200000 60 HP, 1160 RPM, 440 VOLT, GENERAL ELECTRIC, AC12, SLIP RING CRANE MOTOR (R)")
 "12308200000 60 HP, 1160 RPM, 440 VOLT, GENERAL ELECTRIC, AC12, SLIP RING CRANE MOTOR (R)")
| INVENTORY ID | 12308200000 |
| TITLE | 60 HP, 1160 RPM, 440 VOLT, GENERAL ELECTRIC, AC12, SLIP RING CRANE MOTOR (R) |
| HORSEPOWER | 60 |
| SPEED | 1160 |
| STATOR VOLTAGE 1 | 440 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | AC12 |
| SHAFT HEIGHT | 10" |
| ROTOR AMPS | 79 |
| ROTOR VOLTS | 300 |
| SHAFT EXTENSION | DETS |
| ENCLOSURE | TENV |
| BEARINGS | A/F |
| MODEL NUMBER OR STYLE NUMBER | 5MA405YK312 |
| SERIAL NUMBER OR ID NUMBER | FA292003 |
| PHASE | 3 |
| DUTY (MINUTES) | 60 |
| DEGREE OF TEMPERATURE RISE | 80 |
| DRIVE SHAFT DIAMETER | 2 1/2" |
| DRIVE SHAFT LENGTH | 5 1/2" |
| BRAKE SHAFT DIAMETER | 2 1/2" |
| BRAKE SHAFT LENGTH | 5 1/2" |
| OVERALL LENGTH | 45 1/2" |
| FRONT BOLT HOLE TO SHAFT | 4 1/2" |
| WIDTH BETWEEN FEET | 19" |
| LENGTH BETWEEN FEET | 20 1/2" |
