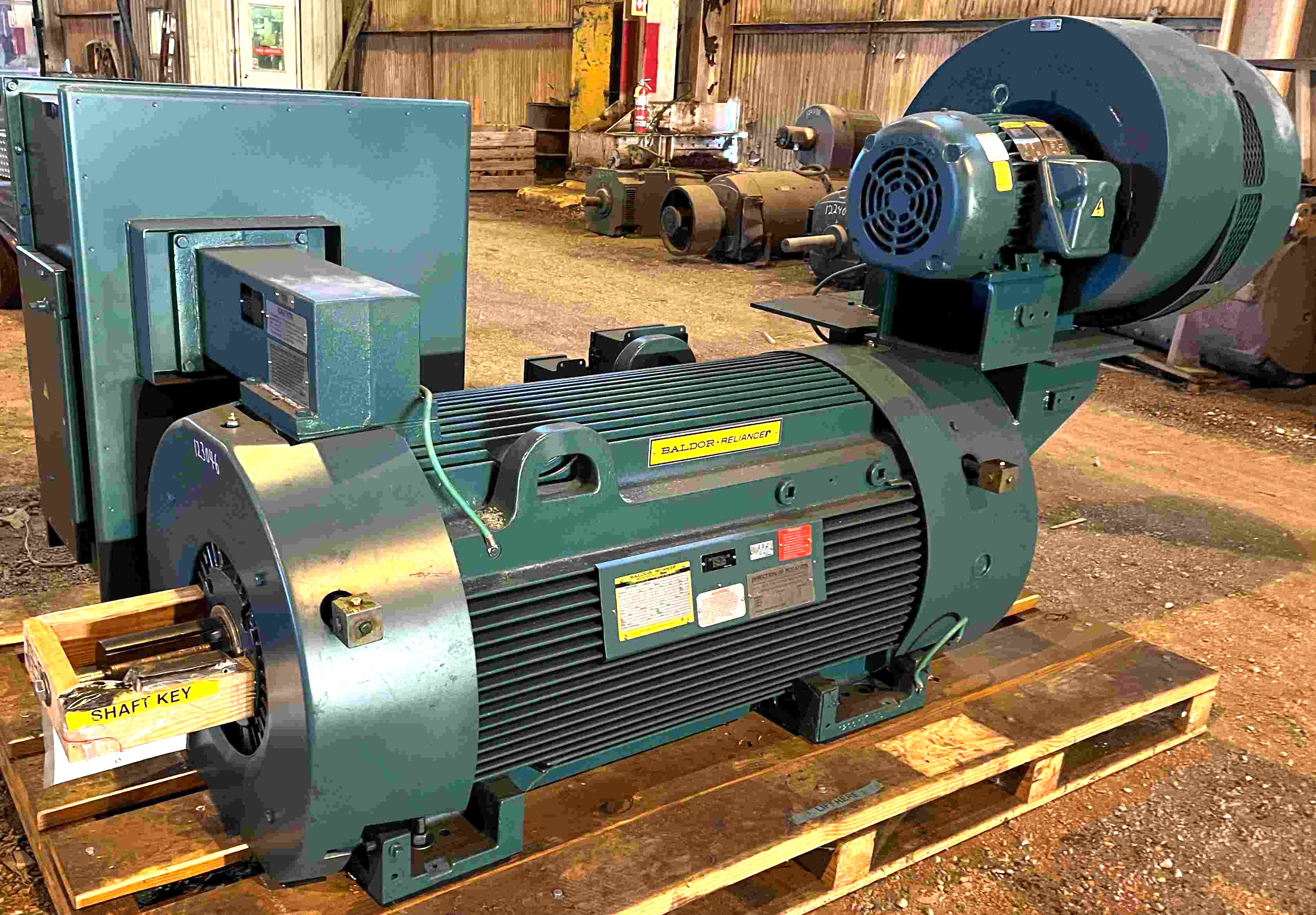

500 HP, 1790 RPM, 4160V, BALDOR, 5012, AC INVERTER DUTY MOTOR
 "12304600000 500 HP, 1790 RPM, 4160V, BALDOR, 5012, AC INVERTER DUTY MOTOR")
 "12304600000 500 HP, 1790 RPM, 4160V, BALDOR, 5012, AC INVERTER DUTY MOTOR")
 "12304600000 500 HP, 1790 RPM, 4160V, BALDOR, 5012, AC INVERTER DUTY MOTOR")
| INVENTORY ID | 12304600000 |
| TITLE | 500 HP, 1790 RPM, 4160V, BALDOR, 5012, AC INVERTER DUTY MOTOR |
| HORSEPOWER | 500 |
| SPEED | 1790 |
| VOLTAGE | 4160 |
| MANUFACTURER | BALDOR |
| FRAME | 5012 |
| ENCLOSURE | TEBC |
| SHAFT | SESS |
| TYPE | P |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.00 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 63.1 / 63.1 / 96.1 |

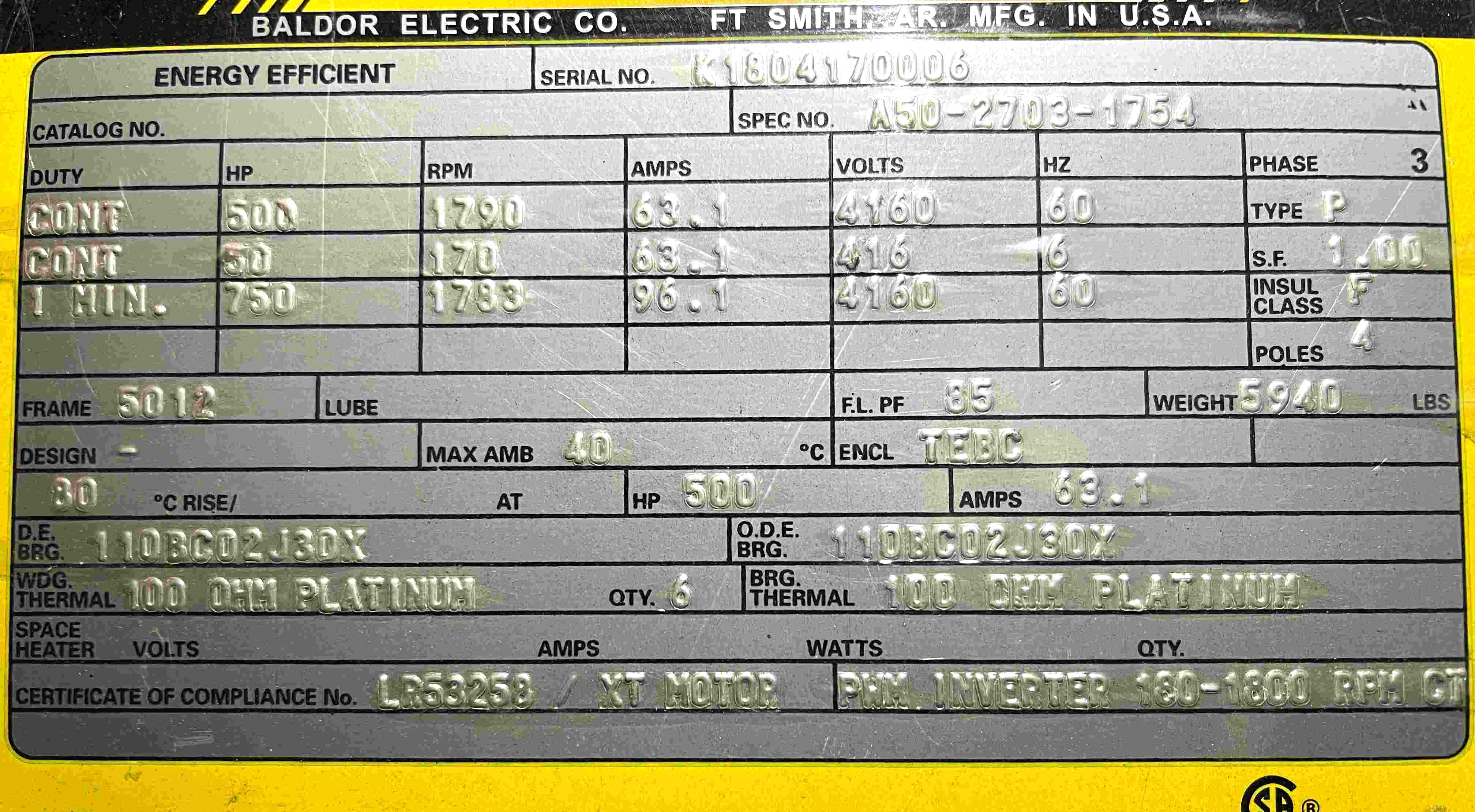

| SERIAL NUMBER OR ID NUMBER | K180417006 |
| MODEL NUMBER OR STYLE NUMBER | A5O-2703-1754 |
| WEIGHT | 5,940 |
| DUTY | CONT |
| TEMPERATURE RISE | 80 |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 12 1/2" |
| DRIVE SHAFT DIAMETER | 4" |
| DRIVE SHAFT LENGTH | 7" |
| BRAKE SHAFT DIAMETER | N/A |
| BRAKE SHAFT LENGTH | N/A |
