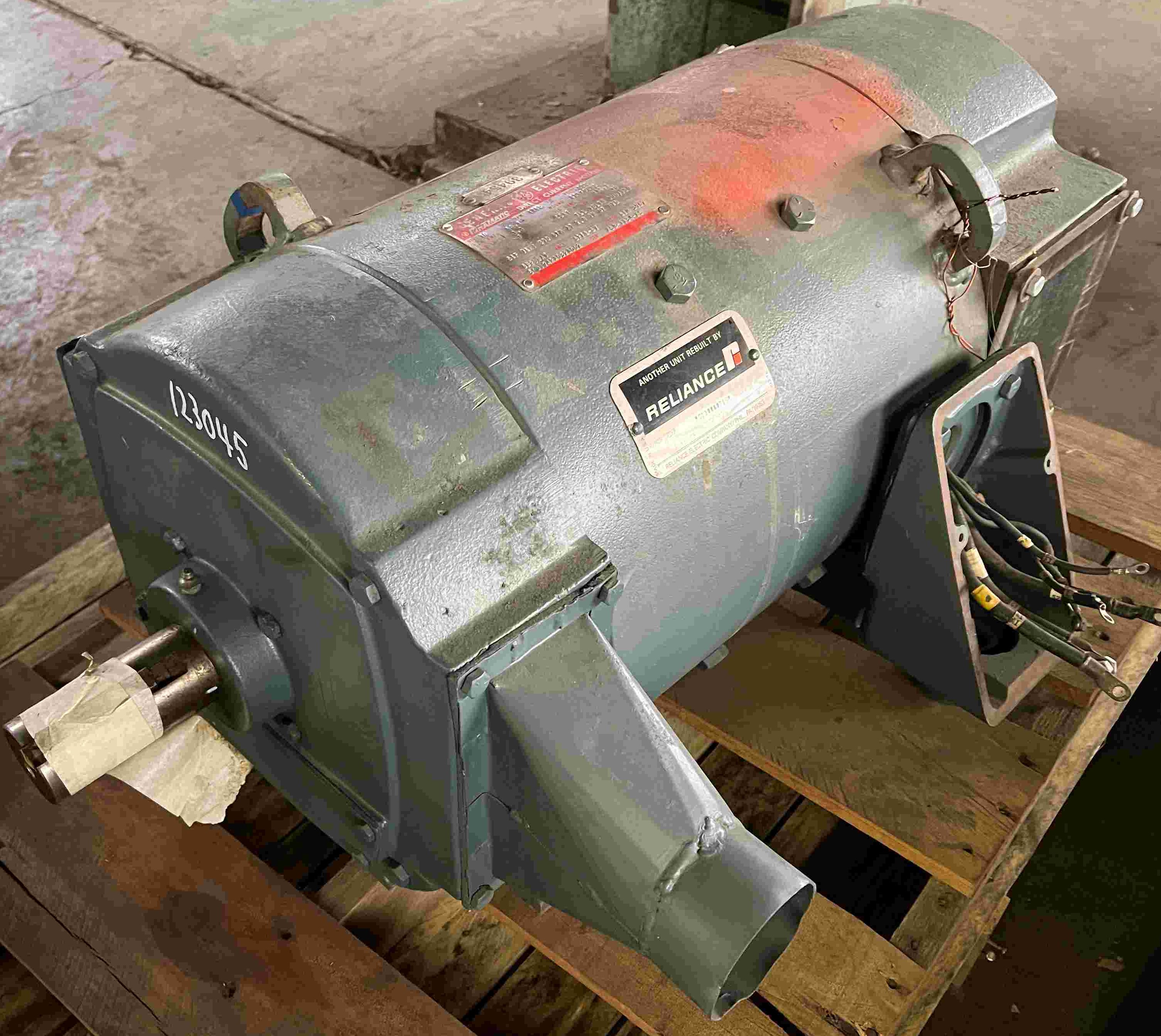

30 HP, 1750 RPM, 500 VOLT, GENERAL ELECTRIC, CD288AT, COMPOUND, USED DC MOTOR
 "12304500000 30 HP, 1750 RPM, 500 VOLT, GENERAL ELECTRIC, CD288AT, COMPOUND, USED DC MOTOR")
 "12304500000 30 HP, 1750 RPM, 500 VOLT, GENERAL ELECTRIC, CD288AT, COMPOUND, USED DC MOTOR")

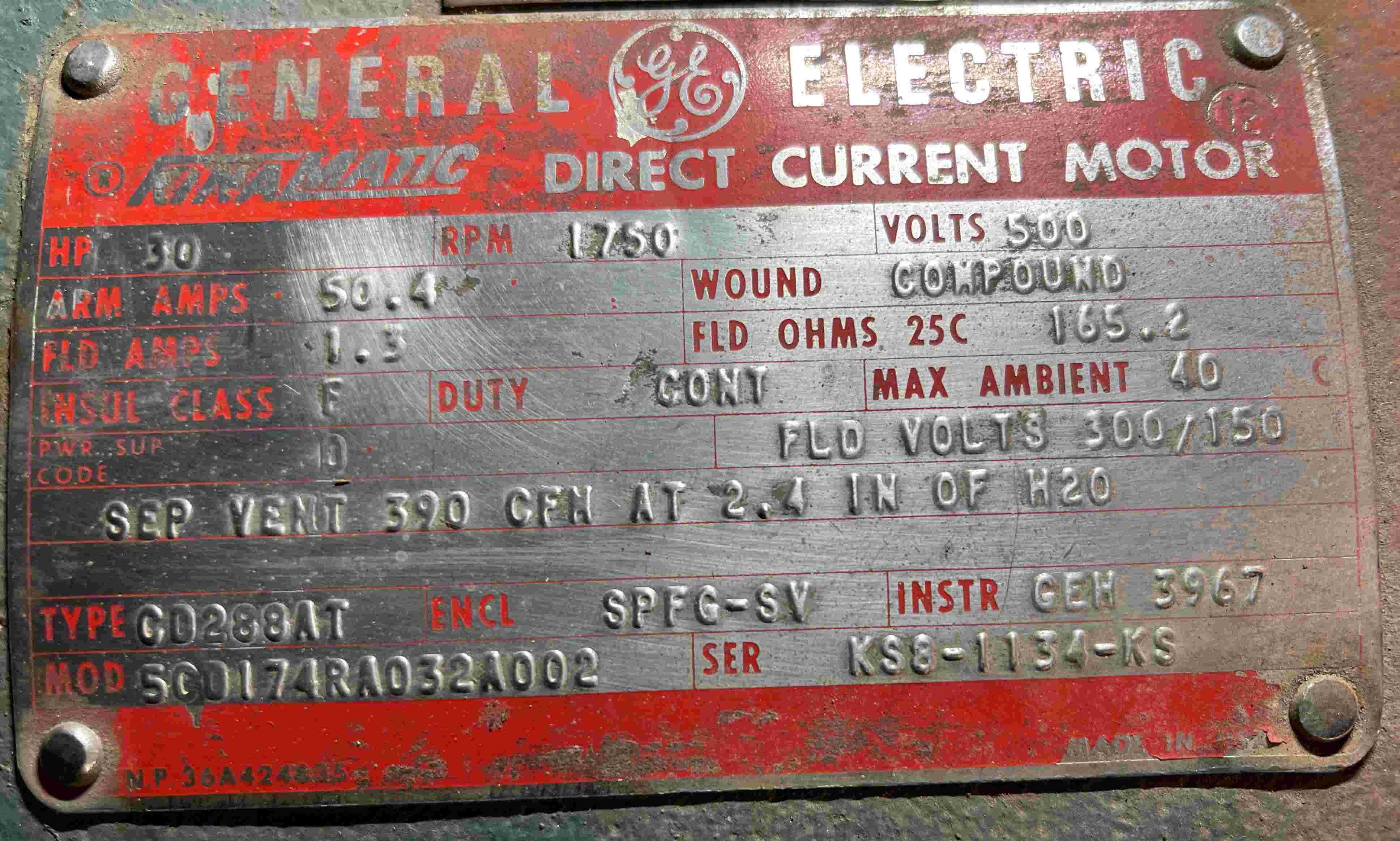

| INVENTORY ID | 12304500000 |
| TITLE | 30 HP, 1750 RPM, 500 VOLT, GENERAL ELECTRIC, CD288AT, COMPOUND, USED DC MOTOR |
| HORSEPOWER | 30 |
| SPEED | 1750 |
| VOLTAGE | 500 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | CD288AT |
| WINDING | COMPOUND |
| ENCLOSURE | SPFG-SV |
| SHAFT | SESS |
| AMPERAGE | 50.4 |
| DUTY | CONT |
| BEARINGS | A/F |
| FIELD VOLTAGE | 300/150 |
| FIELD AMPERAGE | 1.3 |
| FIELD RESISTANCE | 149.8 |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | KS8-1134-KS |
| MODEL NUMBER OR STYLE NUMBER | 5CD174RA032A002 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | C |
| WEIGHT | 550 |
| DRIVE SHAFT DIMENSION | 1 7/8" |
| DRIVE SHAFT LENGTH | 3 7/8" |
| BRAKE SHAFT DIAMETER | N/A |
| BRAKE SHAFT LENGTH | N/A |
| SHAFT HEIGHT | 7" |
| MOTOR LENGTH | 35" |
| WIDTH BETWEEN FEET | 11" |
| LENGTH BETWEEN FEET | 14" |
