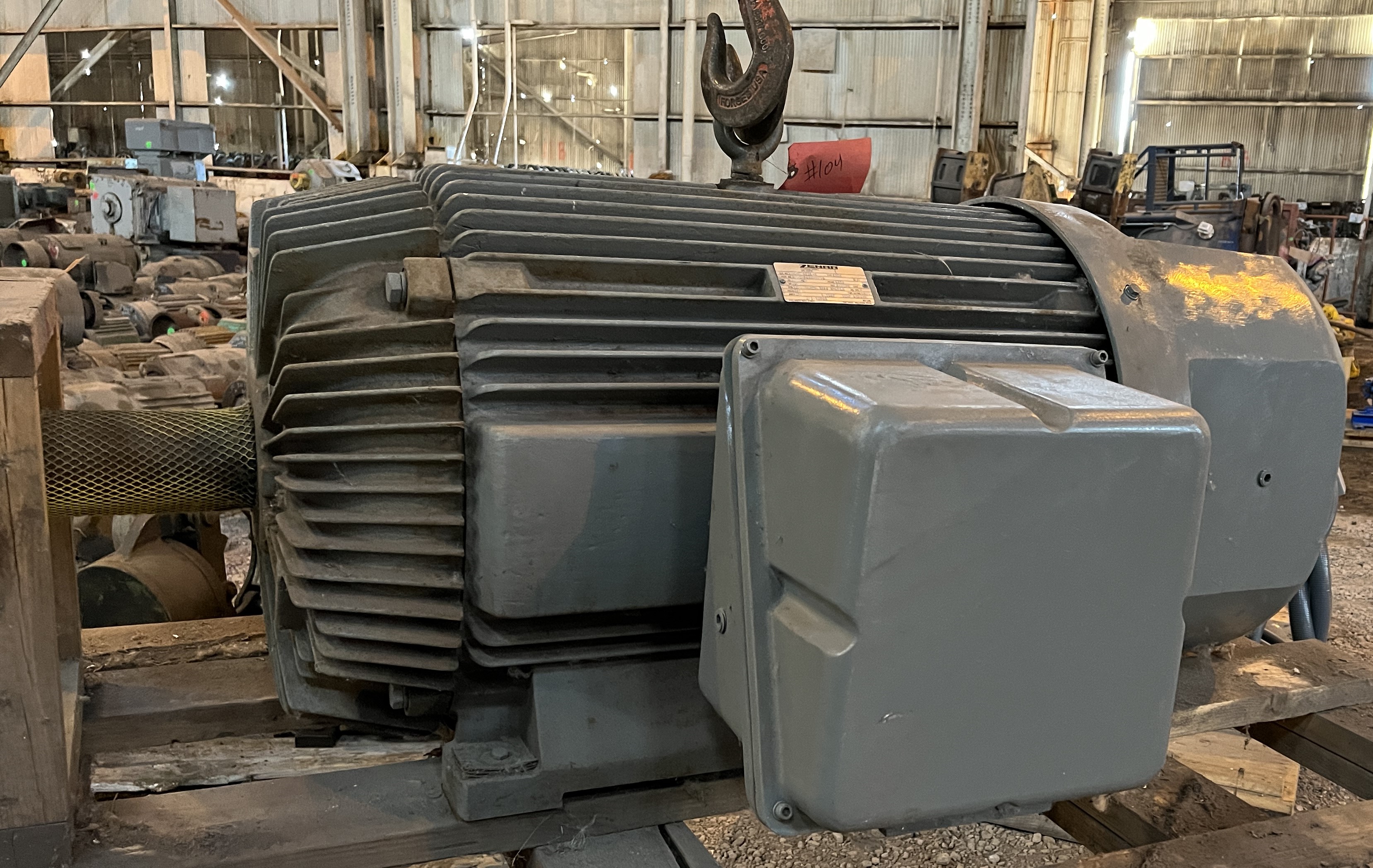

250 HP, 1200 RPM, 460 VOLT, ZENAR, 449T, INDUCTION AC MOTOR
 "12301800000 250 HP, 1200 RPM, 460 VOLT, ZENAR, 449T, INDUCTION AC MOTOR")
 "12301800000 250 HP, 1200 RPM, 460 VOLT, ZENAR, 449T, INDUCTION AC MOTOR")

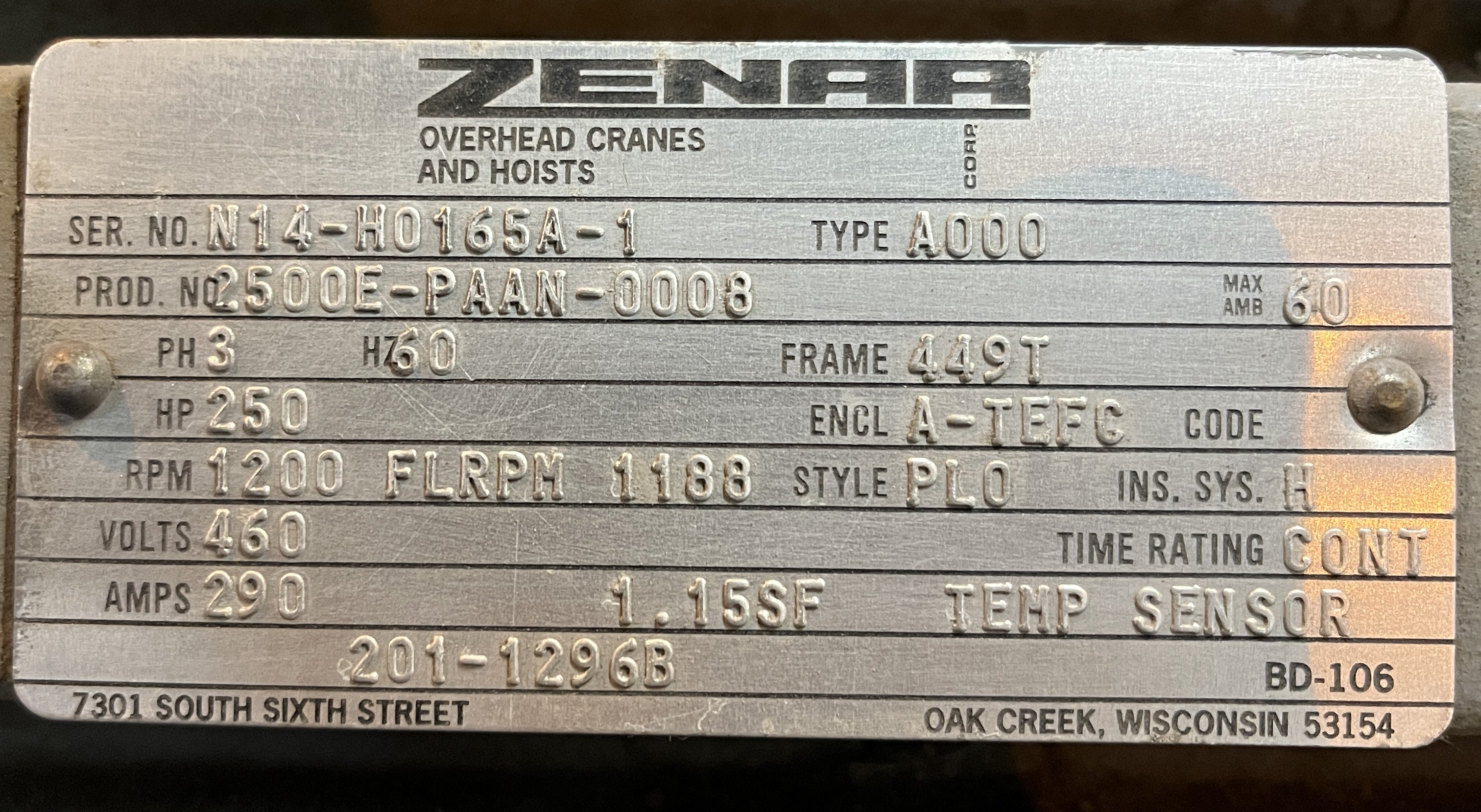

| INVENTORY ID | 12301800000 |
| TITLE | 250 HP, 1200 RPM, 460 VOLT, ZENAR, 449T, INDUCTION AC MOTOR |
| HORSEPOWER | 250 |
| SPEED NAMEPLATE | 1200 |
| VOLTAGE | 460 |
| MANUFACTURER | ZENAR |
| FRAME | 449T |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| TYPE | A000 |
| INSULATION CLASS | H |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 290 |
| SERIAL NUMBER OR ID NUMBER | N14-H0165A-1 |
| MODEL NUMBER OR STYLE NUMBER | 2500E-PAAN-0008 |
| DUTY | CONT |
| TEMPERATURE RISE | 60 |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | RIGHT |
| SHAFT HEIGHT | 11 1/4" |
| DRIVE SHAFT DIAMETER | 3 3/8" |
| DRIVE SHAFT LENGTH | 8 3/4" |
| BRAKE SHAFT DIAMETER | N/A |
| BRAKE SHAFT LENGTH | N/A |
