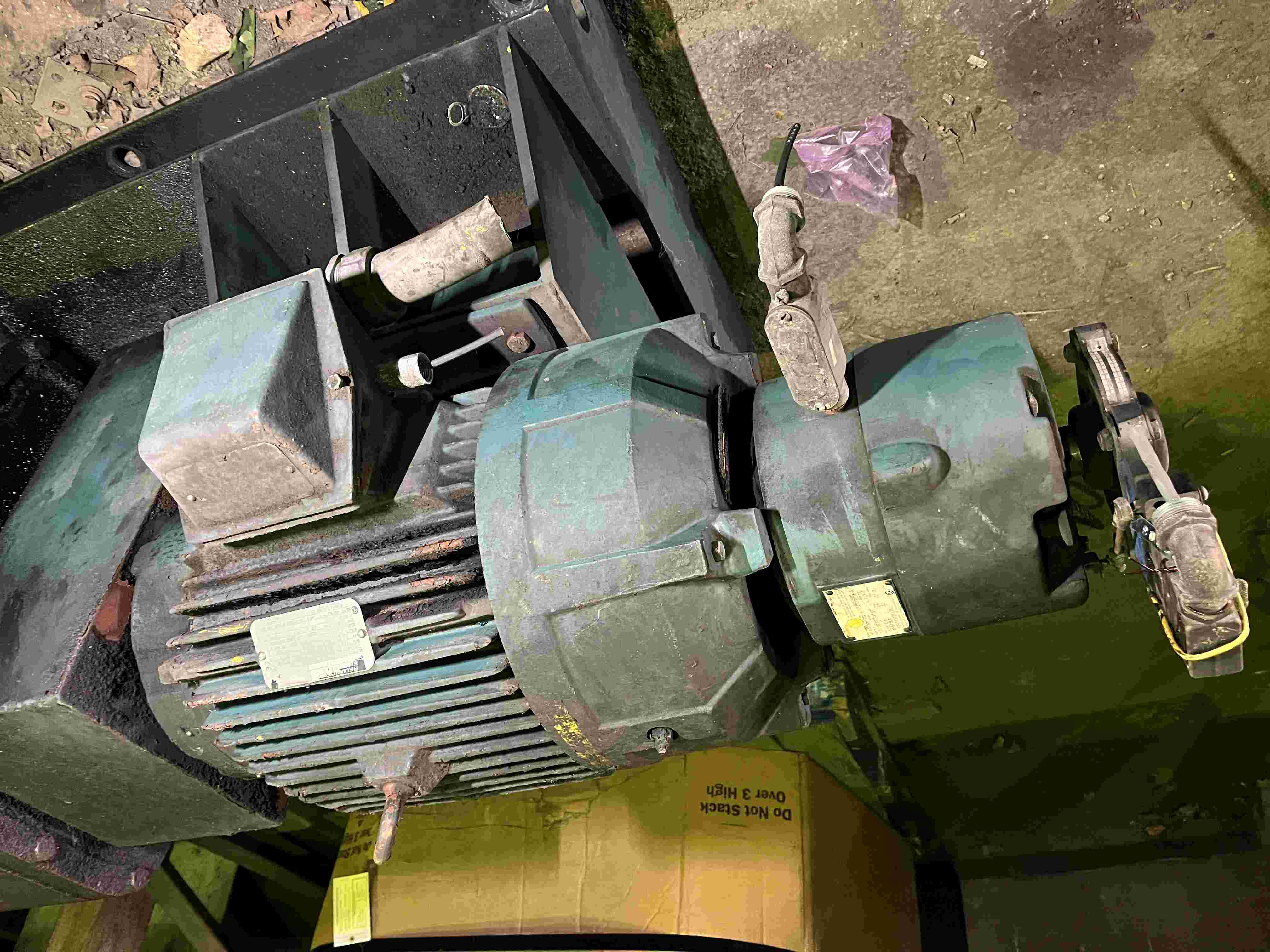

QTY. (5) 30 HP, 1775/2660 RPM, 460 VOLT, RELIANCE, 286T, AC INVERTER DUTY MOTOR
 "12300300000 QTY. (5) 30 HP, 1775/2660 RPM, 460 VOLT, RELIANCE, 286T, AC INVERTER DUTY MOTOR")
 "12300300000 QTY. (5) 30 HP, 1775/2660 RPM, 460 VOLT, RELIANCE, 286T, AC INVERTER DUTY MOTOR")
 "12300300000 QTY. (5) 30 HP, 1775/2660 RPM, 460 VOLT, RELIANCE, 286T, AC INVERTER DUTY MOTOR")
| INVENTORY ID | 12300300000 |
| TITLE | QTY. (5) 30 HP, 1775/2660 RPM, 460 VOLT, RELIANCE, 286T, AC INVERTER DUTY MOTOR |
| HORSEPOWER | 30 |
| SPEED | 1775 |
| SPEED SYNCHRONOUS | 2660 |
| VOLTAGE | 460 |
| MANUFACTURER | RELIANCE |
| FRAME | 286T |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | A |
| TYPE | P |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.00 |
| PHASE | 3 |
| FREQUENCY | 60/90 |
| AMPERAGE | 38.1/35.3 |
| SERIAL NUMBER OR ID NUMBER | 6934308-001 |
| MODEL NUMBER OR STYLE NUMBER | L001LH |
| WEIGHT | 531 |
| DUTY | CONT |
| TEMPERATURE RISE | AMB 40 DEGREE CELCIUS |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 7" |
| DRIVE SHAFT DIAMETER | 1 7/8" |
| DRIVE SHAFT LENGTH | 4 1/8" |
| BRAKE SHAFT DIAMETER | N/A |
| BRAKE SHAFT LENGTH | N/A |
