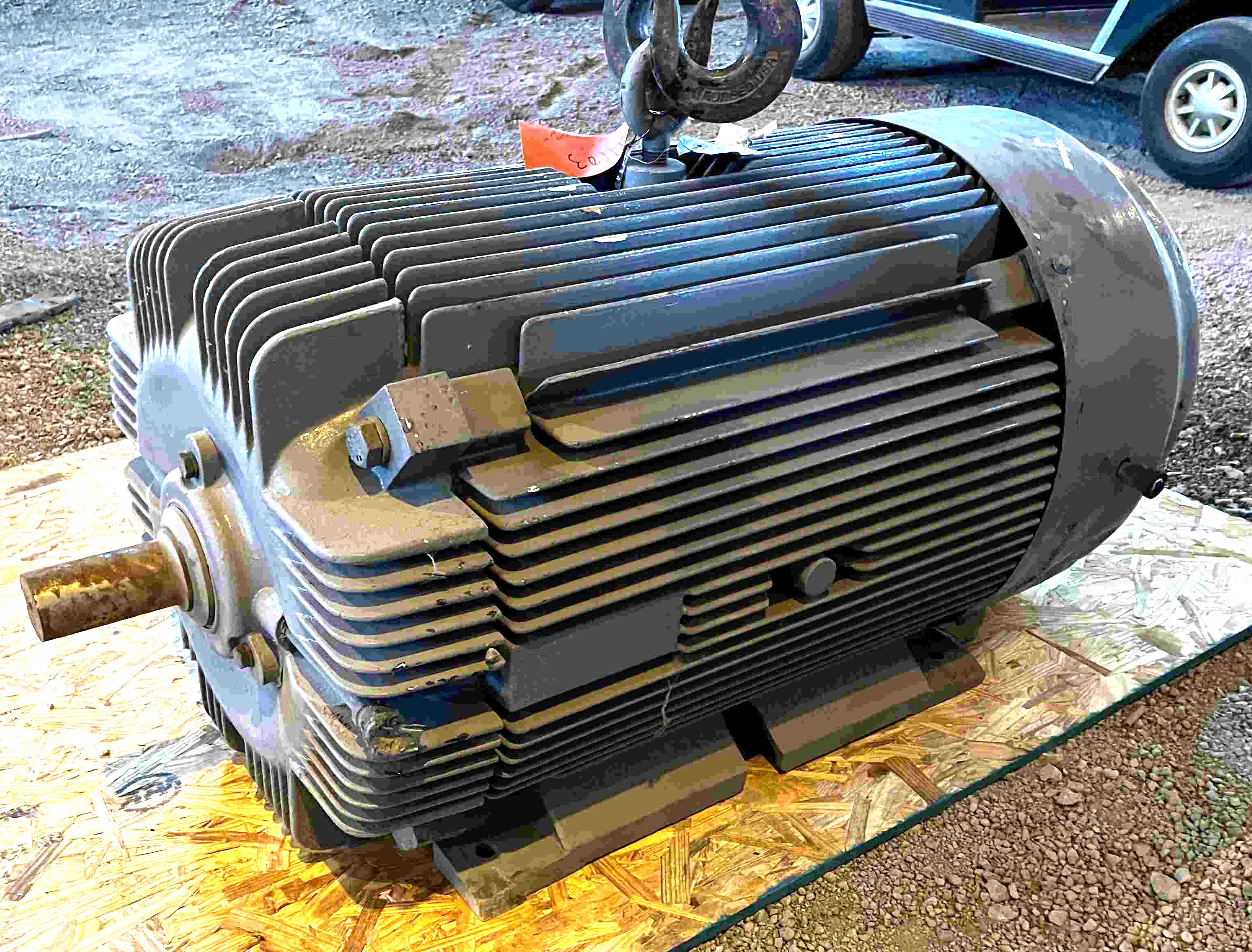

250 HP, 1780 RPM, 460V, LOUIS ALLIS, 449TS, INDUCTION AC MOTOR
 "12296400000 250 HP, 1780 RPM, 460V, LOUIS ALLIS, 449TS, INDUCTION AC MOTOR")
 "12296400000 250 HP, 1780 RPM, 460V, LOUIS ALLIS, 449TS, INDUCTION AC MOTOR")
| INVENTORY ID | 12296400000 |
| TITLE | 250 HP, 1780 RPM, 460V, LOUIS ALLIS, 449TS, INDUCTION AC MOTOR |
| HORSEPOWER | 250 |
| SPEED NAMEPLATE | 1780 |
| VOLTAGE | 460 |
| MANUFACTURER | LOUIS ALLIS |
| FRAME | 449TS |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| CODE | G |
| TYPE | CJ5B |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 314 |
| DUTY | CONT |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 11" |
| DRIVE SHAFT DIAMETER | 2 3/8" |
| DRIVE SHAFT LENGTH | 4 1/2" |
| BRAKE SHAFT DIAMETER | N/A |
| BRAKE SHAFT LENGTH | N/A |
