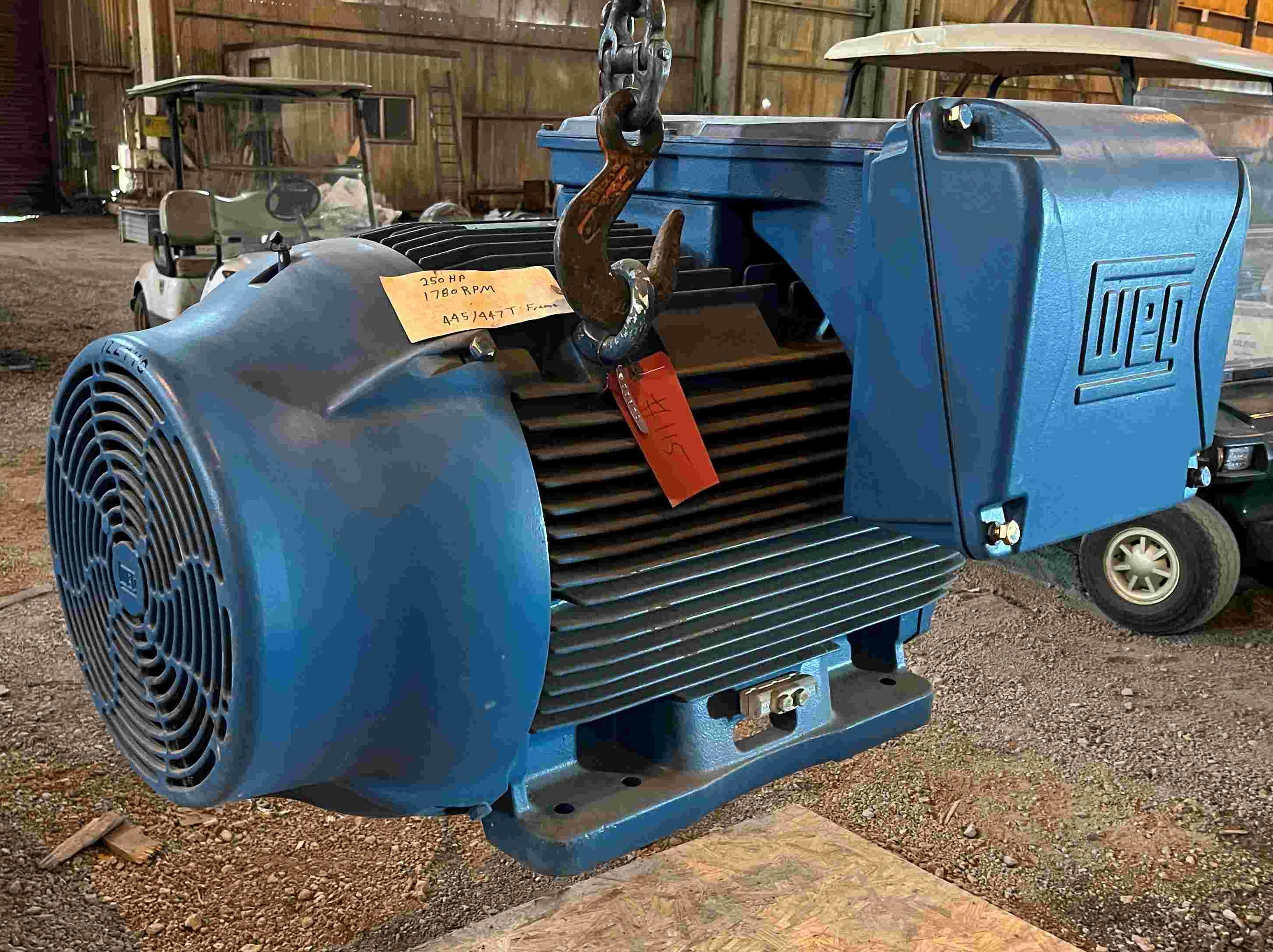

250 HP, 1780 RPM, 460V, WEG, 445/7T, INDUCTION AC MOTOR
 "12294000000 250 HP, 1780 RPM, 460V, WEG, 445/7T, INDUCTION AC MOTOR")
 "12294000000 250 HP, 1780 RPM, 460V, WEG, 445/7T, INDUCTION AC MOTOR")
| INVENTORY ID | 12294000000 |
| TITLE | 250 HP, 1780 RPM, 460V, WEG, 445/7T, INDUCTION AC MOTOR |
| HORSEPOWER | 250 |
| SPEED NAMEPLATE | 1780 |
| VOLTAGE | 460 |
| MANUFACTURER | WEG |
| FRAME | 445 / 7T |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | G |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 281 |
| SERIAL NUMBER OR ID NUMBER | 1032117110 |
| WEIGHT | 2,397 |
| DUTY | CONT |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 11 1/2" |
| DRIVE SHAFT DIAMETER | 3 3/8" |
| DRIVE SHAFT LENGTH | 8 1/4" |
| BRAKE SHAFT DIAMETER | N/A |
| BRAKE SHAFT LENGTH | N/A |
